6-24 Section 6-5 - Monitor and LCD Adjustments
6-5-5-2 For Technart (cont’d)
4.) Htotal Check:
a.) Display the LCD monitor menu and press the MENU button once. The following menu appears.
b.) Check HTotal value:
- If it is 16, go to step5 - Hposition/VPosition check
- If it is NOT 16, go to next step.
c.) Repeat to press the MENU button until the “HTotal” blinks.
d.) Repeat to press the PLUS or MINUS button to set 16.
e.) Press the AUTO button once to save the setting.
f.) Repeat to press the MENU button until the “Exit” blinks
g.) Press the AUTO button once to exit from the menu.
5.) Hposition/VPosition Check:
a.) Close the paint software and display windows desktop.

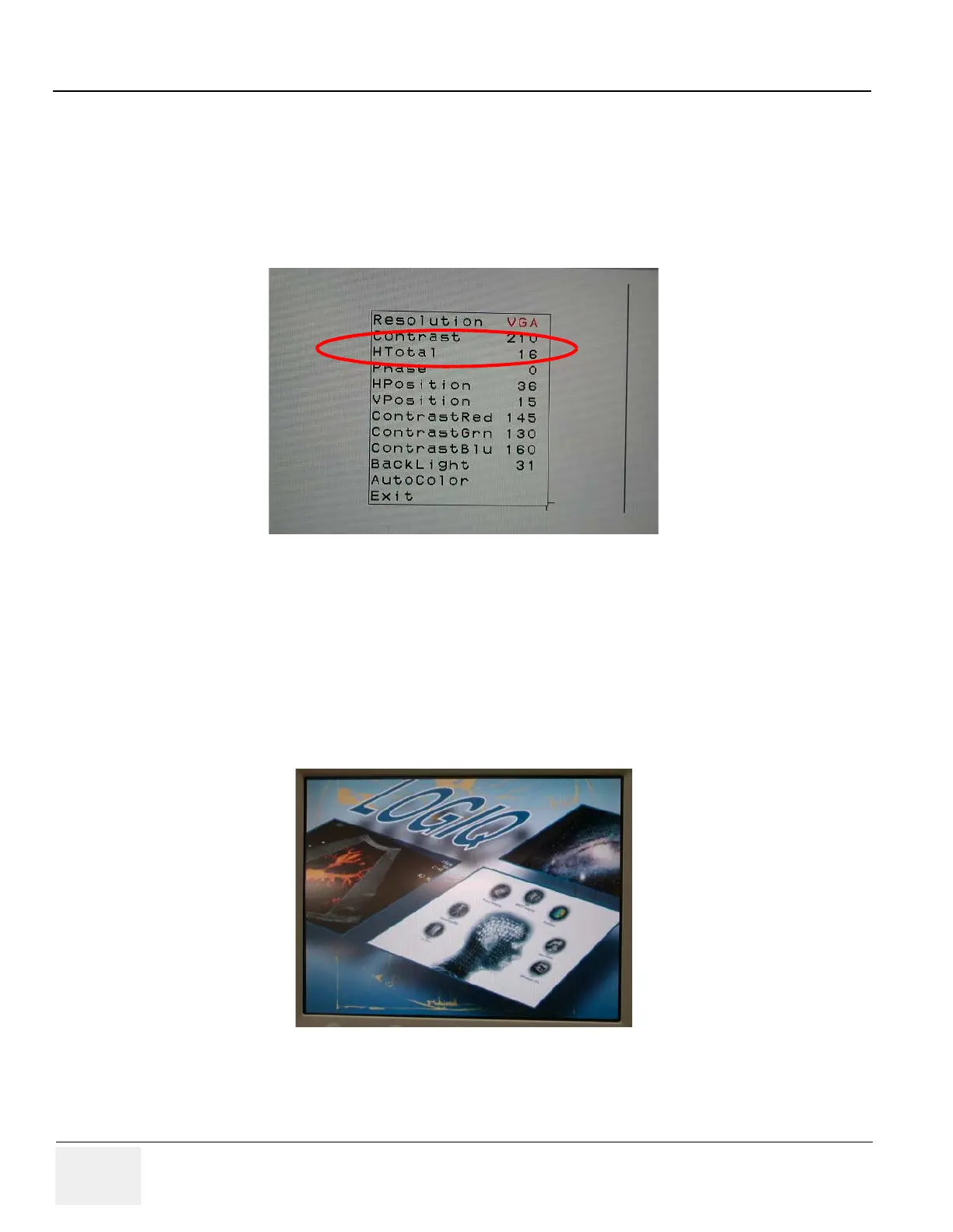

Figure 6-31 H Total
Figure 6-32 Start-up Screen
