4-10 Section 4-2 - General Procedure
4-2-5-2 Using MOD Drive
1.) Before installing an MO disk in the MOD, check the MO disk for loose hardware or damaged labels
which could jam inside the MO Drive. Also ensure that the slide switch in one corner of the disk is
set so that the disk is write enabled (disk hole closed).
2.) Insert the disk into the MOD with the label facing up.
3.) The are a number of methods to eject a disk from the MOD. Ejection is automatic in some cases.
Manual ejection methods, listed in preferred order of use, are:
a.) Press EJECT
button on the MOD while system is ON.
b.) Press and hold EJECT
button while the system is booting.
c.) Mechanical eject. Insert the end of a paper clip into the hole while system power is OFF.
NOTICE
Never move the unit with a disk in the MOD because the drive actuator will not be locked and
the MOD could break.
NOTICE
Avoid mechanical ejection whenever possible. Mechanical ejection leaves the actuator
unlocked and the MOD susceptible to damage if moved. If forced to use this method, reboot
the system, then insert and eject a known good disk using one of the other methods.

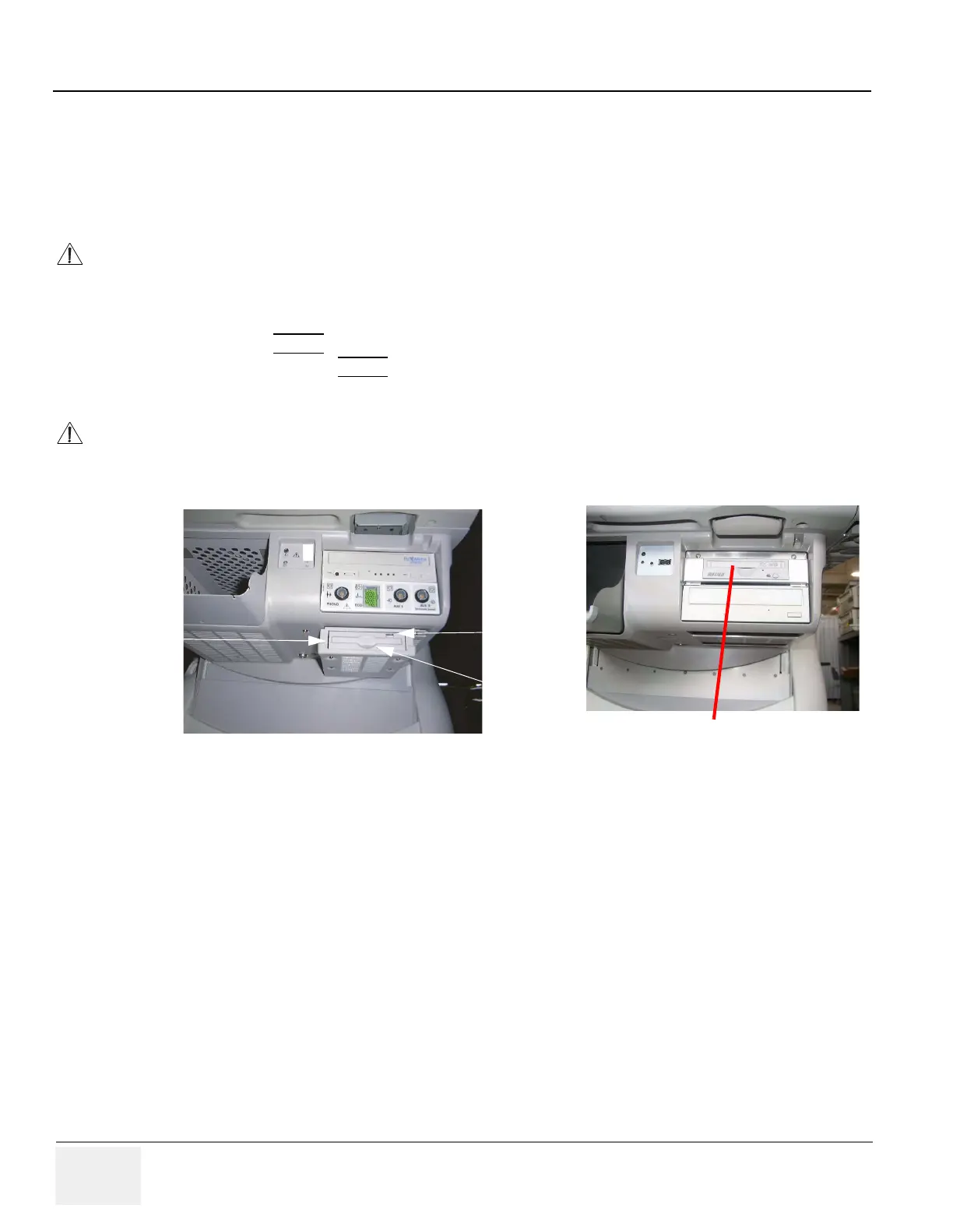

Figure 4-13 MOD drive
MO Drive
Eject Button
Mechanical
Eject Hole
MO Drive
