GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
8-16 Section 8-2 - Software Loading Procedures for BT09 (R8.x.x or later)
8-2-7 Install Base System (cont’d)

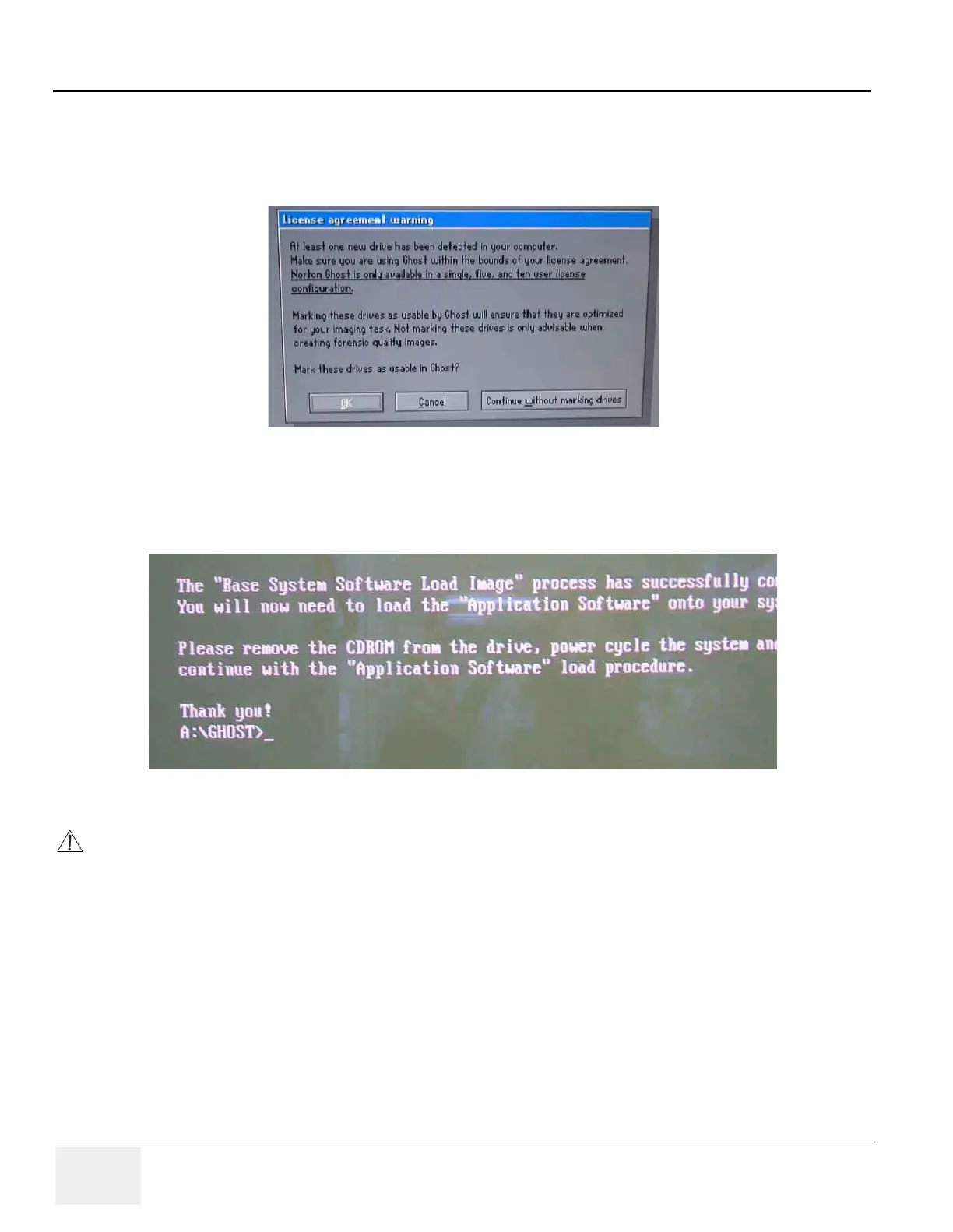

6.) If the following screen appears, verify that OK buttton is selected, then press Enter key. (If it is not
selected, select OK button using the arrow keys then press Enter key.)
7.) Approx. fifteen minutes later, the following screen appears. Eject the Base System Software Load
Image DVD from the drive.
8.) To restart the system, press Ctrl + Alt + DEL key at the same time.
Figure 8-67 OK
Figure 8-68 Ejecting DVD
NOTICE
The Base System Software Load Image DVD must be stored onto the PC box cover.
To Next Page
