GE LOGIQ 7 Service Manual

GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
6-2 Section 6-2 - LV Unit Adjustments (For BT03 or lower)
Section 6-2
LV Unit Adjustments (For BT03 or lower)
This system contains three power supply modules; LV unit. The LV unit for BT04 or later can not be
adjusted.
6-2-1 Access to Adjustments
1.) Remove the LV unit:
a.) Remove the left side cover.
b.) Remove the LV unit cover.
c.) Remove the bracket, then pull out the LV unit Assy with the cables connected.

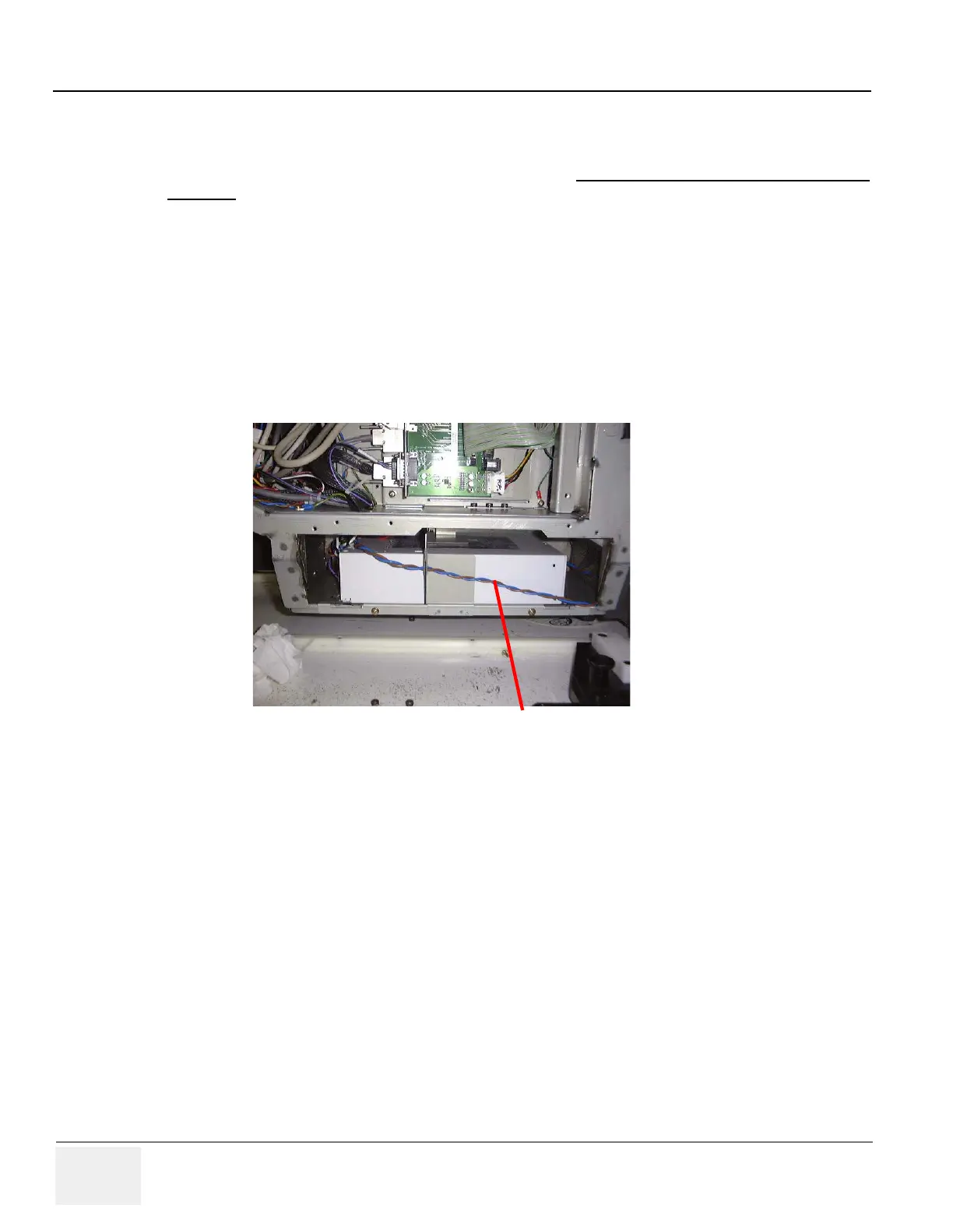

Figure 6-1 LV Unit Assy
LV Unit Assy
