GE HEALTHCARE
DIRECTION 2286865, REVISION 14 LOGIQ™ 7 SERVICE MANUAL
9-40 Section 9-9 - Renewal Parts List For BT04 and BT06
9-9-12 Circuit Board Assemblies

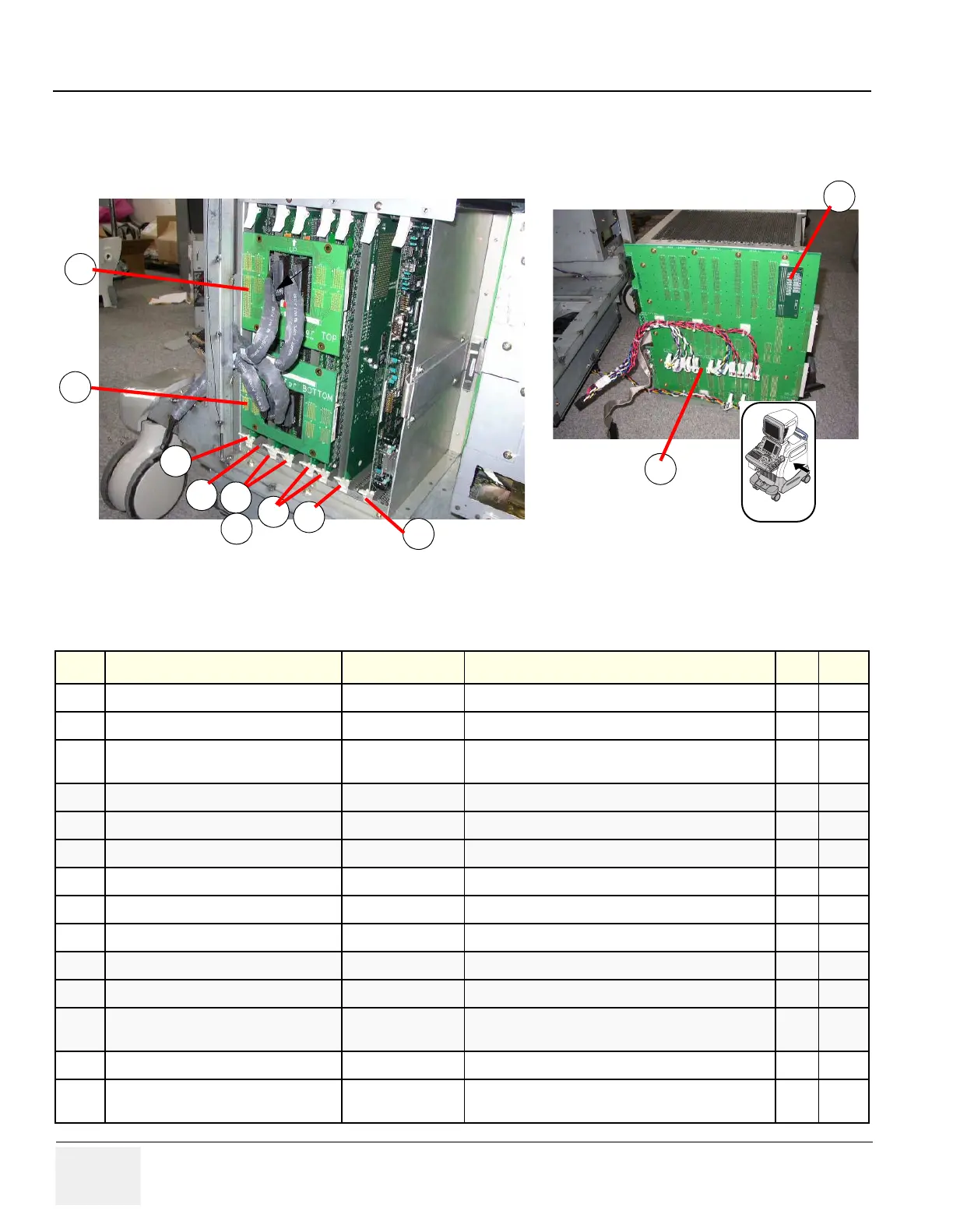

Figure 9-11 Circuit Board Assemblies
Table 9-31 OP Panel and Keys
Item Part Name Part Number Description Qty FRU
501 EBUS 3T ASSY 5111348 Upper EBUS for BT04, BT06 1 1
502 EBUS 3B ASSY 5112465 Lower EBUS for BT04, BT06 1 1
502 EBUS2 ASSY 2399317
Both Upper and Lower boards, for Upgrade BT04,
Upgrade BT06,
21
503 TERMINATOR ASSY 2268026 board 1 2
504 PREA2F ASSY 5119039 board in nest, slot 1 for BT04, BT06. 1 1
504 PREA2H ASSY 2393853 for Upgrade BT04, Upgrade BT06. 1 1
505 BTRAPHV Assy 5118342-3 board in nest, slot 3 - 4 for BT04 1 1
505 BTRAPP5AHV Assy 5154321 board in nest, slot 3 - 4 for BT06 1 1
506 BTxCW ASSY 5111346 Installed on the BTRAP (Option) 1 1
507 DDBF64 ASSY 2399312 board in nest, slot 5 - 6 1 1
508 SINANO ASSY 2374744 board in nest, slot 7 1 1
509 MDBRG ASSY 2264606-5
board in nest, slot 9
“-5 or later” must be used for 6T probe.
1 1
510 MOTHER2 ASSY CSL L7 5111345-2 board 1 1
- STCW ASSY 2277244-4
board in nest, slot 2 (option). Obsolete, but
acceptable to use if in stock.
--
RIGHT
501
503
506
507
508
509
510
511
502
504
505
To Next Page
