Chapter 9 9-7

Replaceable Parts

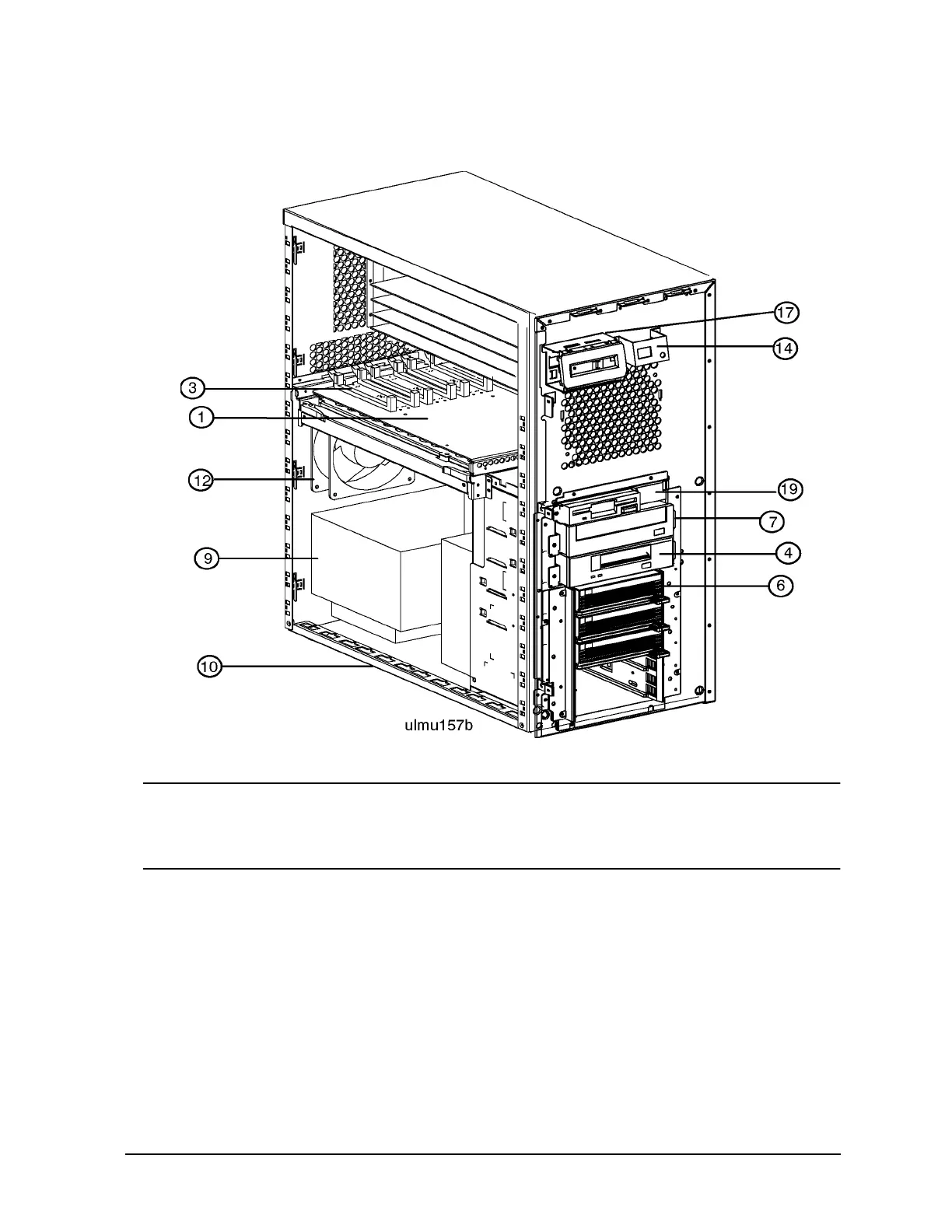

Figure 9-1 System Front View (without bezel and side panel)

NOTE

The D2xx hotswap assembly only has 2 slots, a D3xx is shown.

The fan shown is the rear fan, the front fan is located inside the chassis below the

LCD and Power switch assemblies.
