10-24 Chapter 10

Removal and Replacement Procedures

Remove the System/Core I/O Board

1. Remove the two retaining screws, one at the top right, and one at the bottom left.

2. Slide the System/Core I/O Board toward the right and pull it out of the chassis.

CAUTION Once the System/Core I/O card has been removed, be sure not to remove the lithium

battery installed on the System/Core I/O card. The stable storage battery is NOT field

replaceable. If the System/Core I/O card is being replaced, be sure to return the

replaced or defective System/Core I/O card to the proper Hewlett-Packard repair

facility.

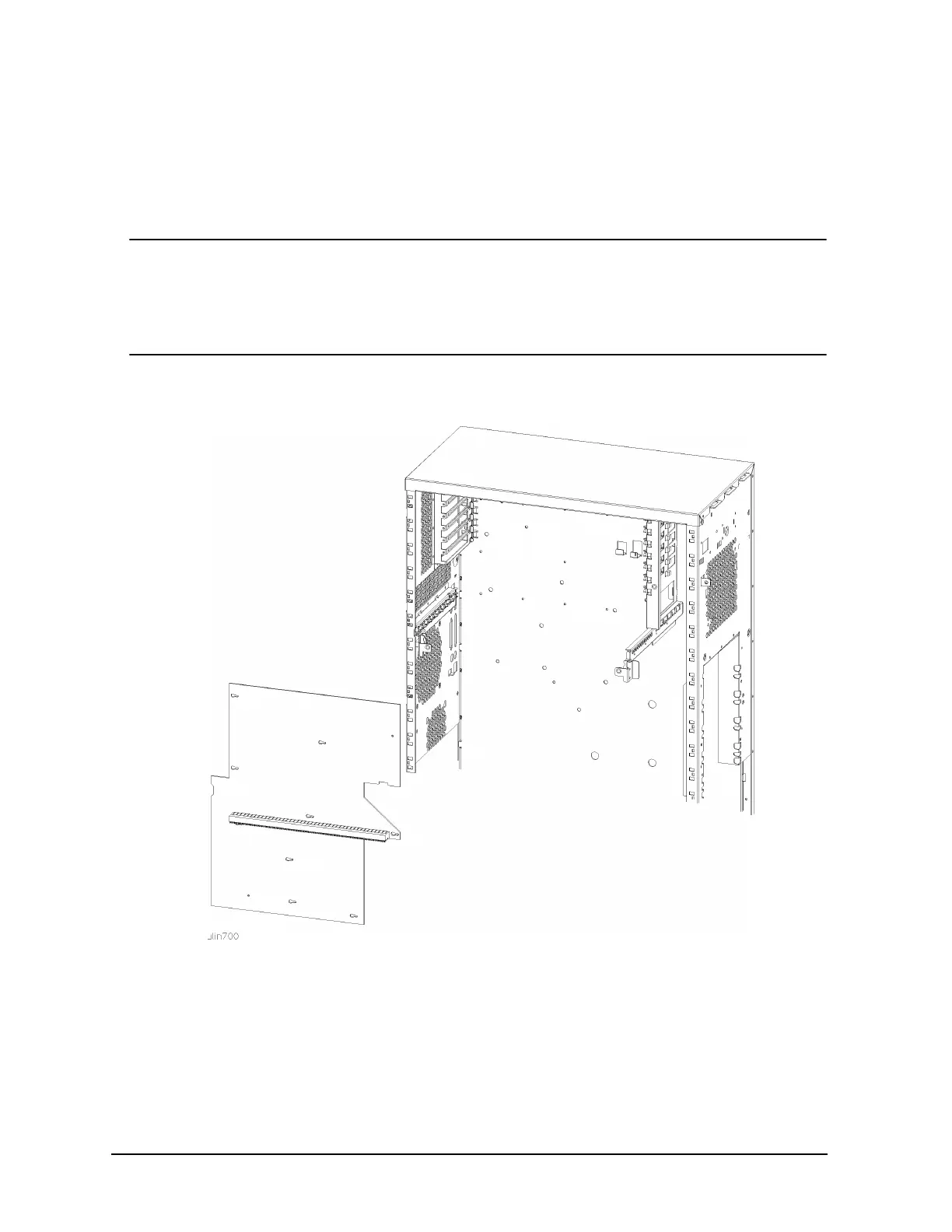

Figure 10-14 System/Core I/O Board Replacement
