10-8 Chapter 10
Removal and Replacement Procedures
Remove the Side Panel (D Class) or Top Panels (R Class)
To access the peripherals, display panel, power on switch, and assemblies inside the cabinet, you must
also remove the side panel (D Class) or top panels (R Class).
D Class Side Panel Removal
1. Loosen three captive screws with a #15 torx.
2. Grasp the tab at the top front edge of the side panel and swing it away from the system cabinet.
3. Lift the panel straight up so that its four hinge tabs come out of the slots at the rear of the cabinet.
4. Pull the side panel away from the cabinet and set it aside.

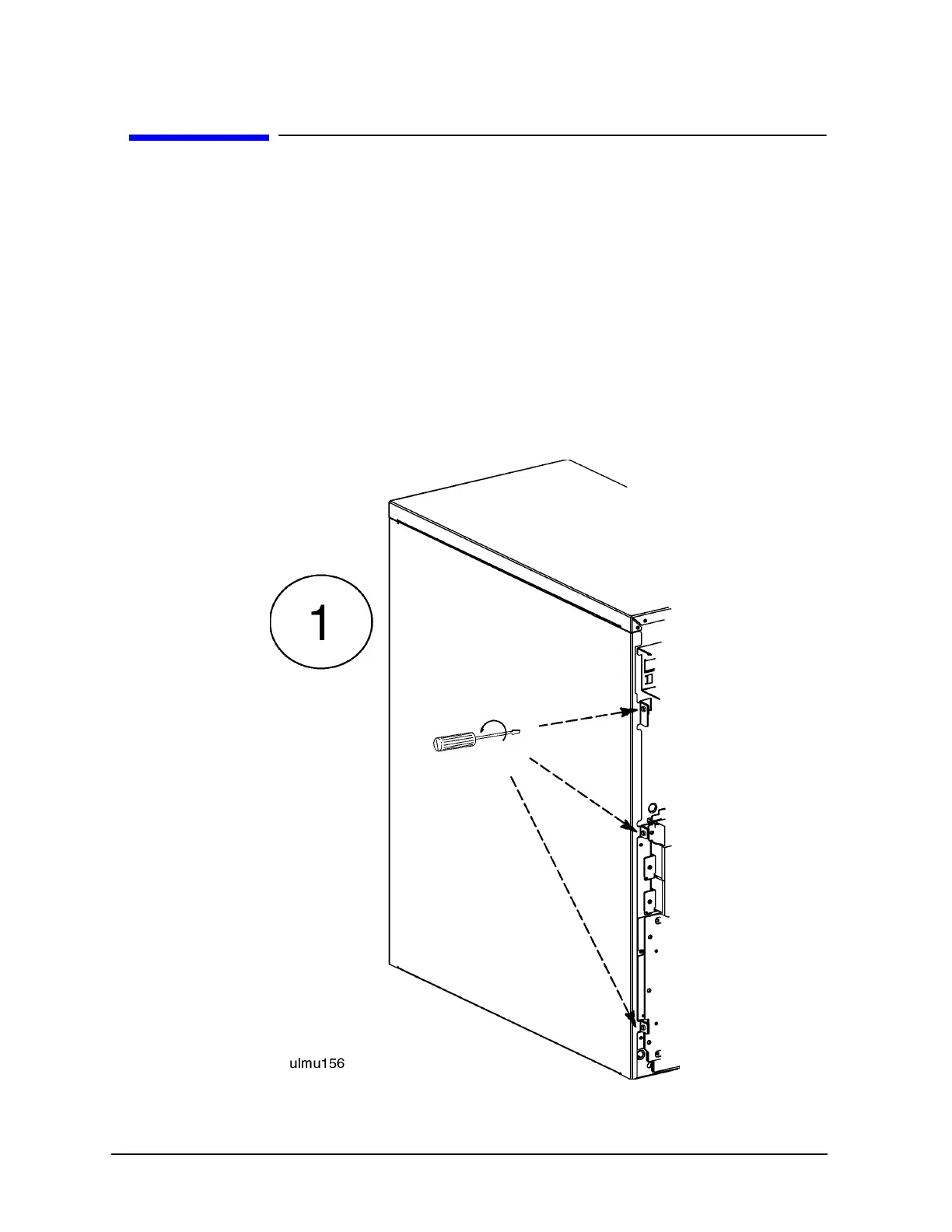

Figure 10-3 Side Panel Removal
