12-2 Chapter 12
Remote Management/Access Port Card
Features
• Smart multiplexer with on-board 68000
• Console functionality (System Console with IODC)
• Access Port functions
• Uninterruptible Power Supply port support
• Asynchronous operation up to 38.4 kbps on direst ports
• Internal modem board support
• Integrated GSC/NIO interface
• Uses HP-PB interface chip
• Software download capabilities
• Processor executed self-test.
Bulkhead Description

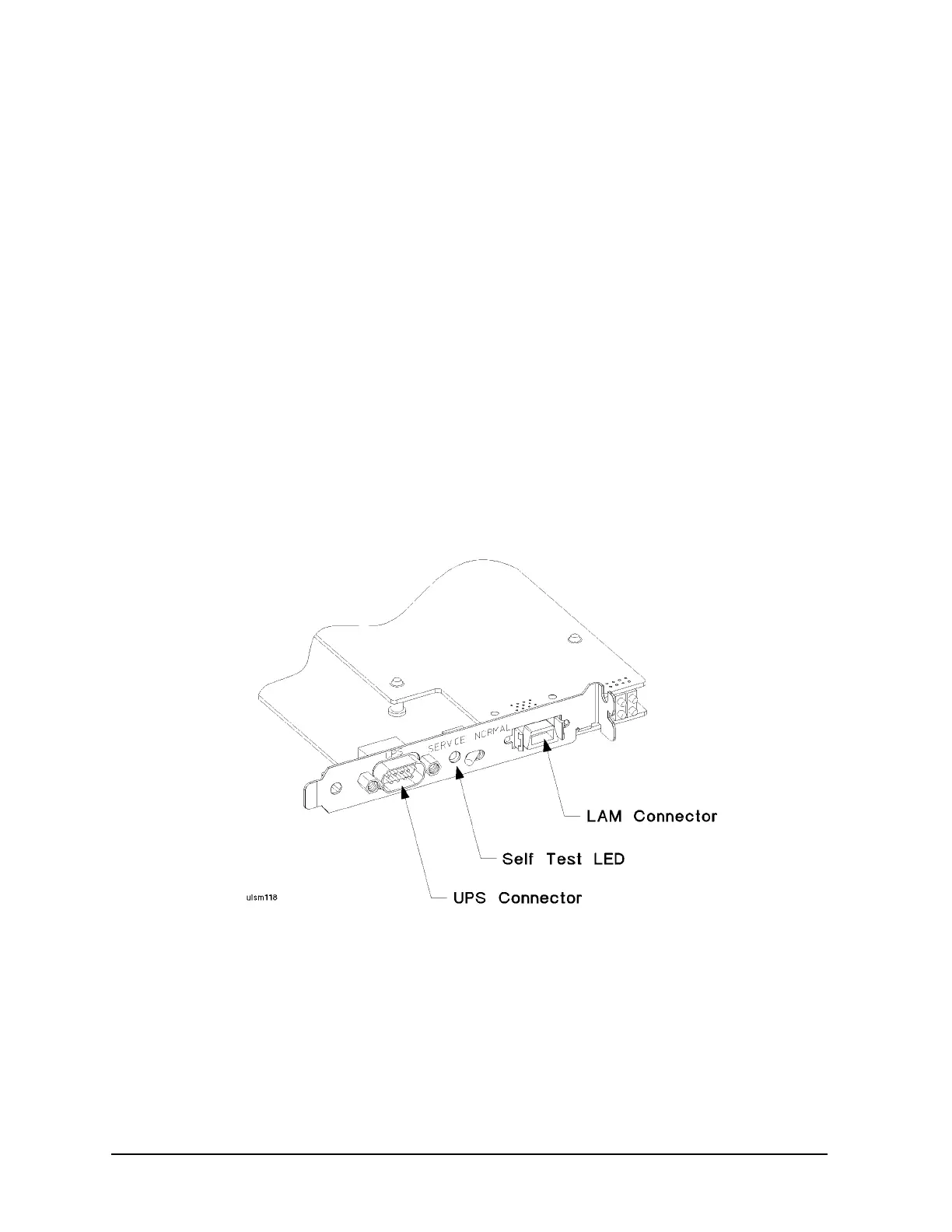

Figure 12-2 AP Card Bulkhead
UPS Port Connector is a nine pin D-shell connector that is a general purpose 3 wire serial port
configured to support UPS connection.
Selftest LED is used by the internal self-test to indicate its status. The LED is turned on when
system power is applied and will blink until self-test is complete and is then turned
off. If the LED stays on, the self-test has failed.
LAM Connector used to connect a Line Access Module for support of the remote console
connection.
