10-22 Chapter 10

Removal and Replacement Procedures

3. Pull the bracket out of the cabinet and set it aside.

4. Remove the screw holding the card into the system, at the rear bulkhead end.

5. Pull the card out of the connector (see Figure 10-12, and place the card on an ESD mat.

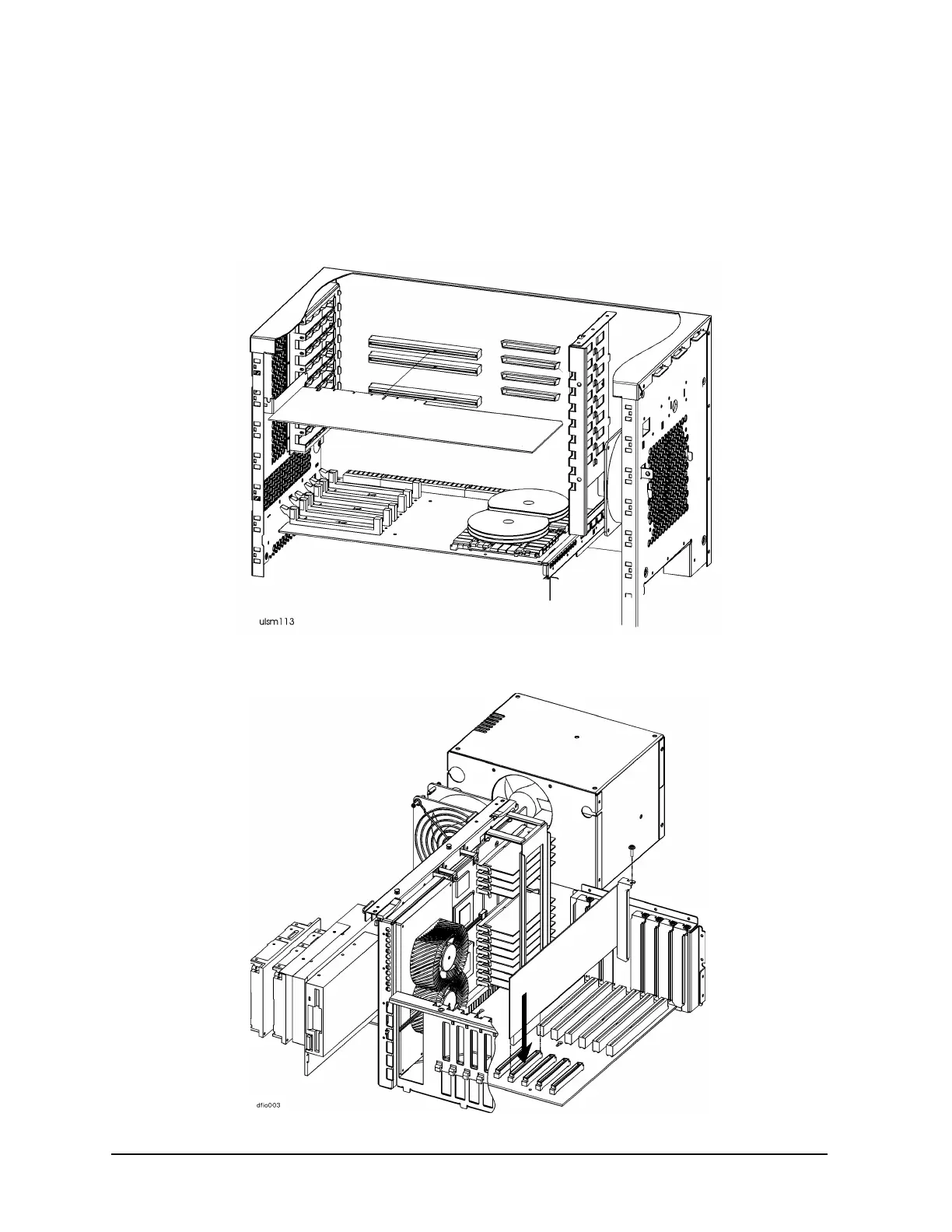

Figure 10-12 EISA/HSC Card Removal — D Class

Figure 10-13 EISA/HSC Card Removal - R Class
