Chapter 11 11-69

SCSI Peripherals and I/O Information

• Spare sectors per cylinder = 5

• Command Queuing - 64 commands per Iniator

• 5400 rpm spindle speed

• Average latency = 5.54 ms

• MTFB = 800,000 hours

• No preventative maintenance or adjustments required

• Low power consumption

• Vendor Indentification String = SEGATE

• Product Indentification String = ST31230N

• Product Revision Level String = HPM4

NOTE The Product Revision Level String is subject to change due to newer firmware

revisions.

Jumpering

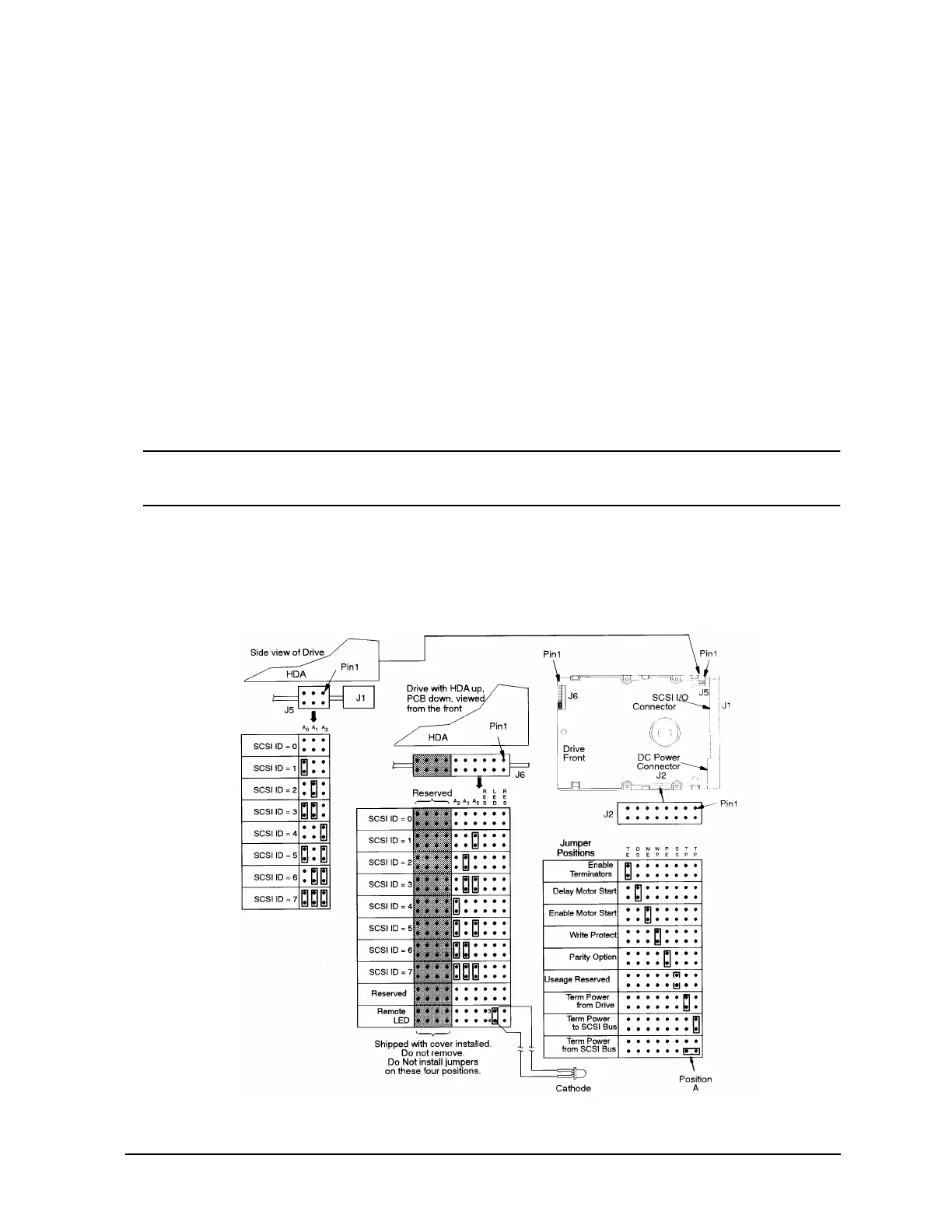

Figure 11-37 A3349A Jumpering
