Chapter 11 11-61
SCSI Peripherals and I/O Information
• No preventative maintenance required.
• Inquiry Vendor Identification String = TOSHIBA
• Inquiry Product Identification String = CD-ROM XM-4101TA
• Inquiry Product Revision Level String = 1084
Front Panel
The HP A3184A CD-ROM drive front panel has the following features:

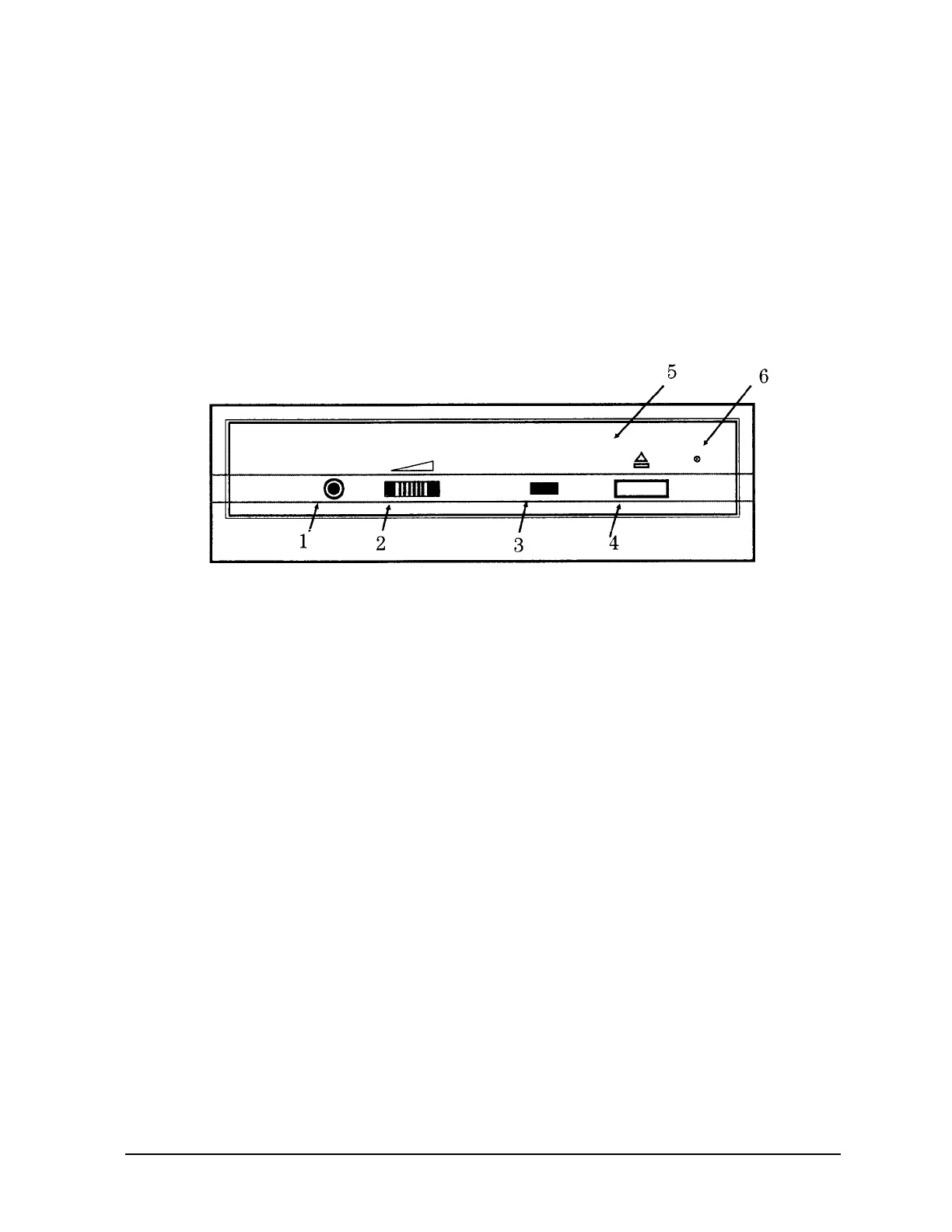

Figure 11-31 HP A3184A Front Panel
1. Headphone jack - headphone connection for listening to an audio CD.
2. Volume control - Used to adjust the audio volume.
3. Drive status LED - Used to indicate selftest, drive activity, or a drive problem.
4. Eject button - Press this button to eject a CD. The CD ejects within 5 seconds. This button does not
work if there is no power or if the software application has disabled its operation.
5. Drive door - The drive door slides out so you can insert a CD into the drive tray.
6. Emergency eject access hole - A paper clip (straightened) can be inserted here to cause the CD tray
to open.
