Chapter 10 10-5
Removal and Replacement Procedures

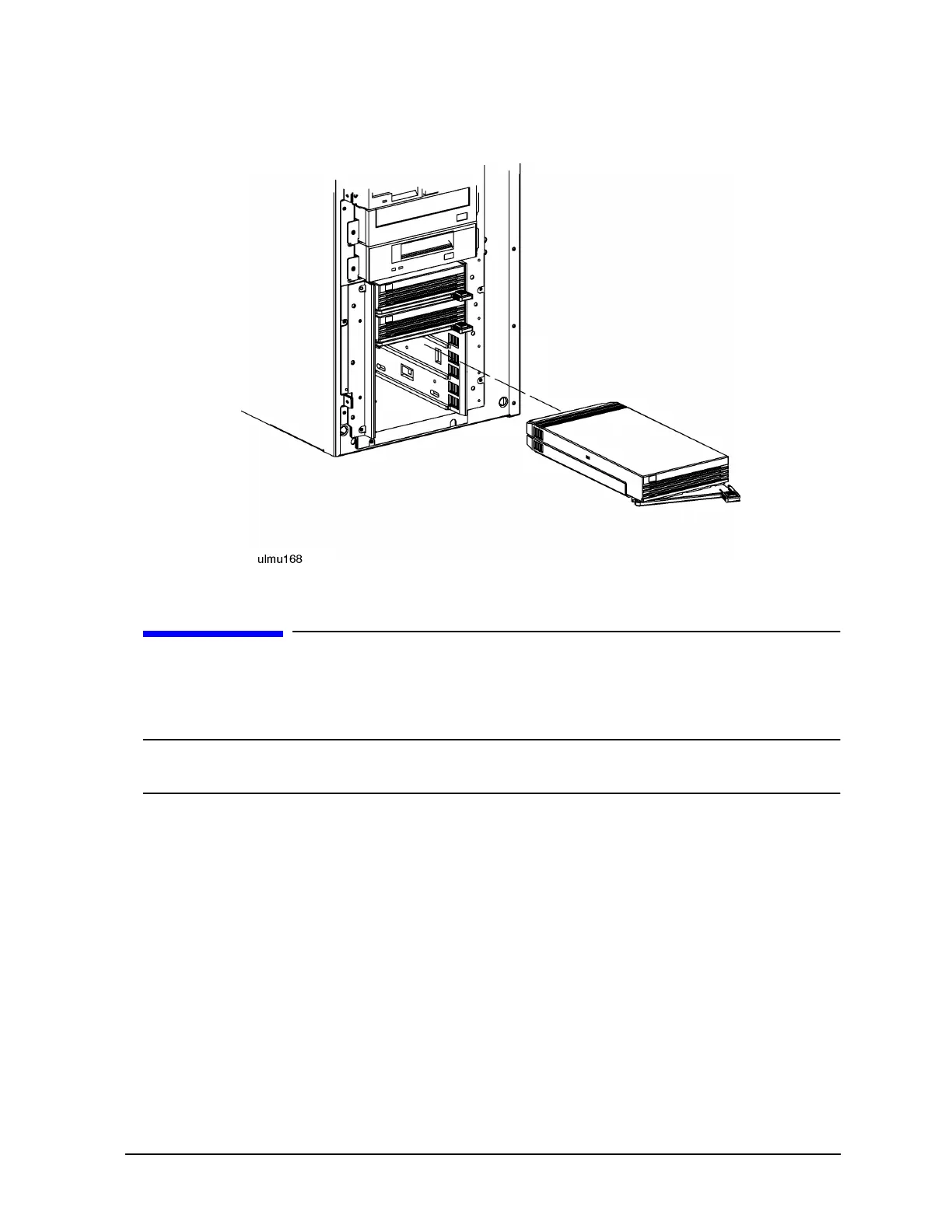

Figure 10-1 Hot-Swap Disk Removal/Replacement
Remove the Front Bezel — D Class
To remove all assemblies except the hot-swap disk drives, you will need to remove the front bezel.
NOTE If the peripheral access door is locked, you will need to get the key from the system
operator. You cannot remove the front bezel with the door lock in the locked position.
1. Unlock the front peripheral door.
2. Grasp the bottom sides of the front bezel, and gently pull the bottom of the bezel away from the
chassis.
3. Carefully push the bezel up so that the top of the bezel comes loose from the top of the cabinet.
Then pull the bezel away from the cabinet. Be careful that you don't pull the display panel out of its
mount.
