11-2 Chapter 11

SCSI Peripherals and I/O Information

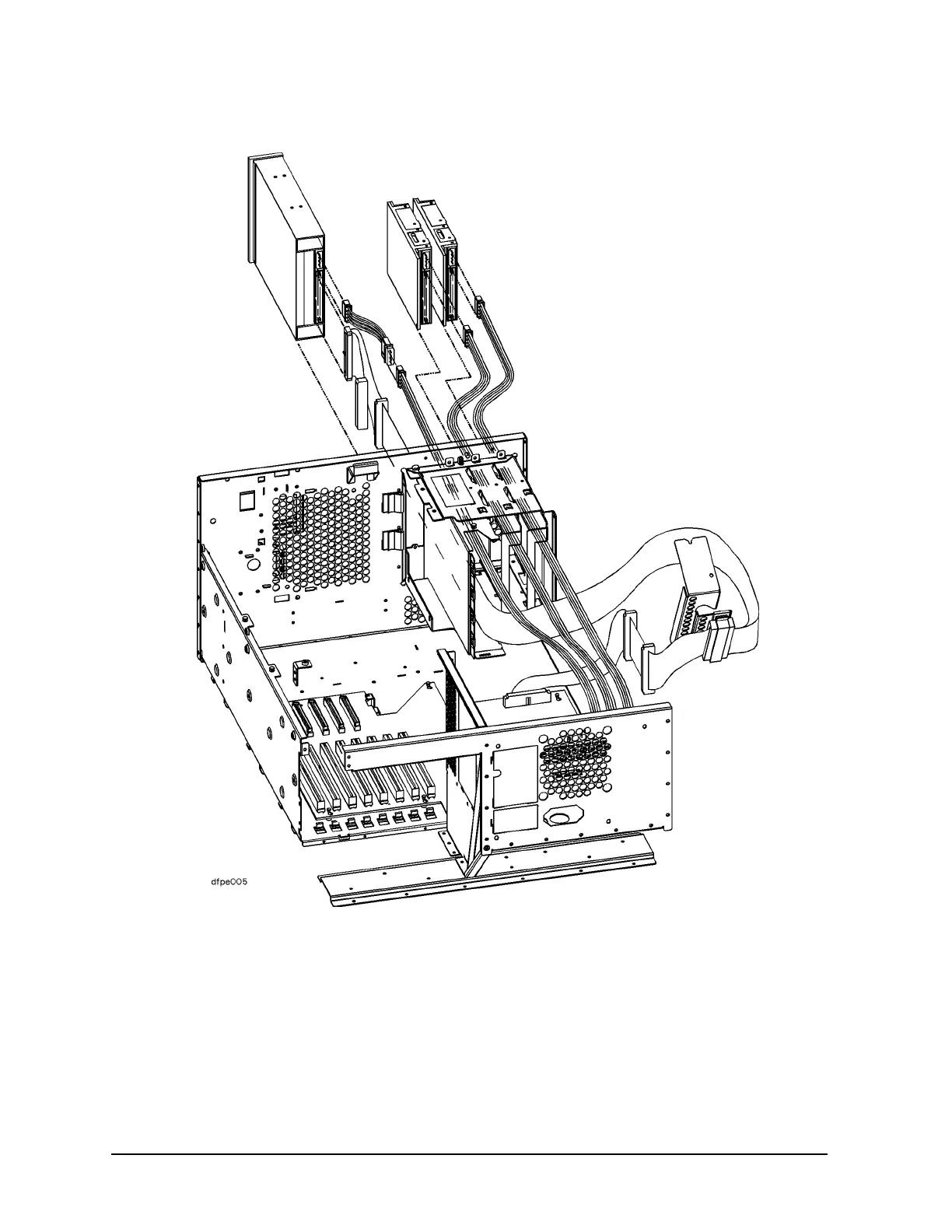

Figure 11-2 R3xx System Peripheral Housing

This figure shows the R3xx peripheral housings outside of the main chassis. The Model R3xx has

removable media deviices on the Single-Ended SCSIbus.
