Chapter 11 11-23

SCSI Peripherals and I/O Information

IDE Floppy Drive (D Class only)

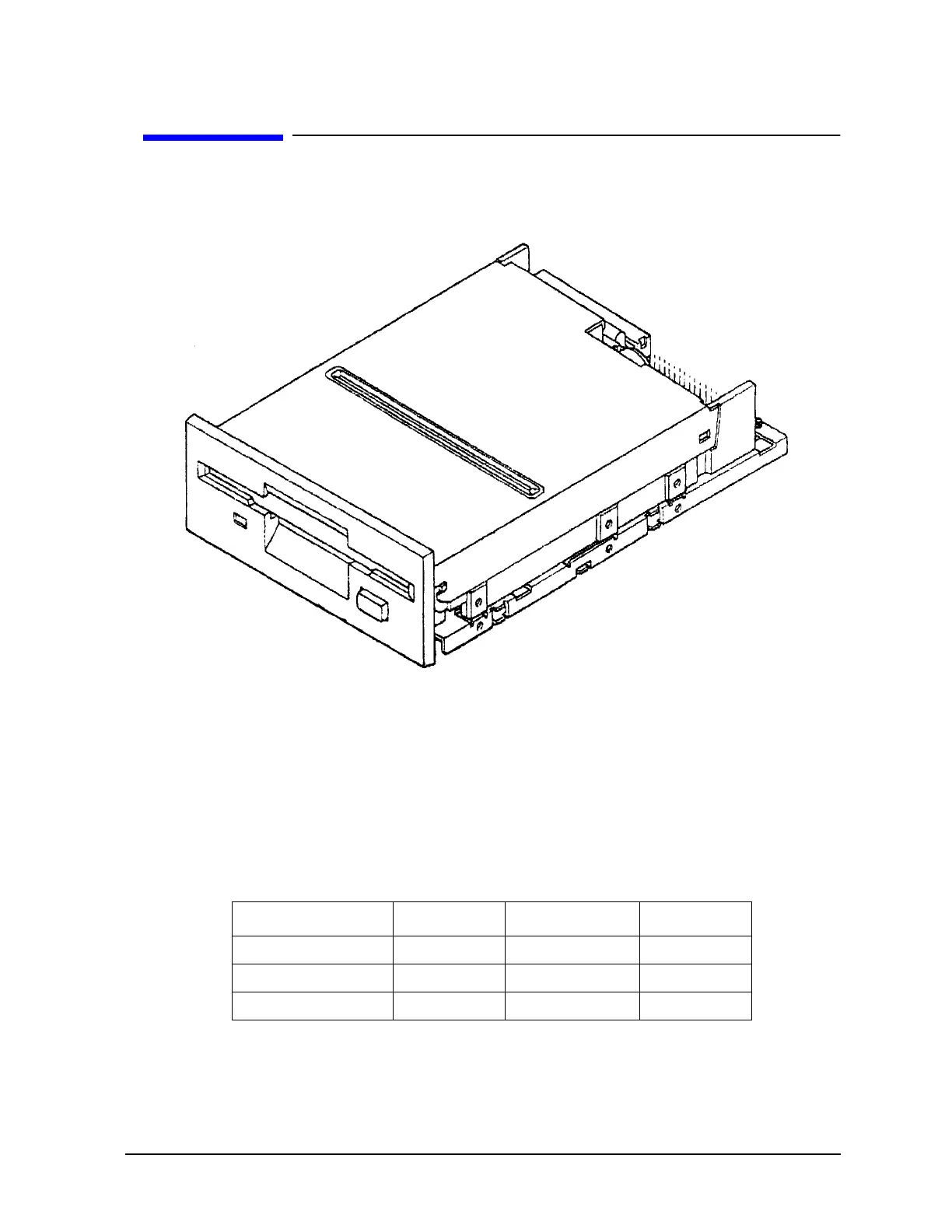

Figure 11-4 IDE Floppy Drive

Specifications

• 3.5 inch IDE Floppy disk drive

• Double-sided media support

• Track density = 135 tpi

• MTBF 30,000 power on hours for typical duty cycle

Table 11-12 Mode Specifications

Replacement Part Number - A1658-60014

Diagnostics - CSTM, IPMAP, and SYSMAP

Triple Density 2 Mb Mode 1.6 Mb Mode 1 Mb Mode

3.5 inch disk used 2HD 2HD 2DD

Transfer Rate 500 Kb/sec. 500 Kb/sec. 250 Kb/sec.

Disk Speed 300 rpm 360 rpm 300 rpm
