Chapter 11 11-3

SCSI Peripherals and I/O Information

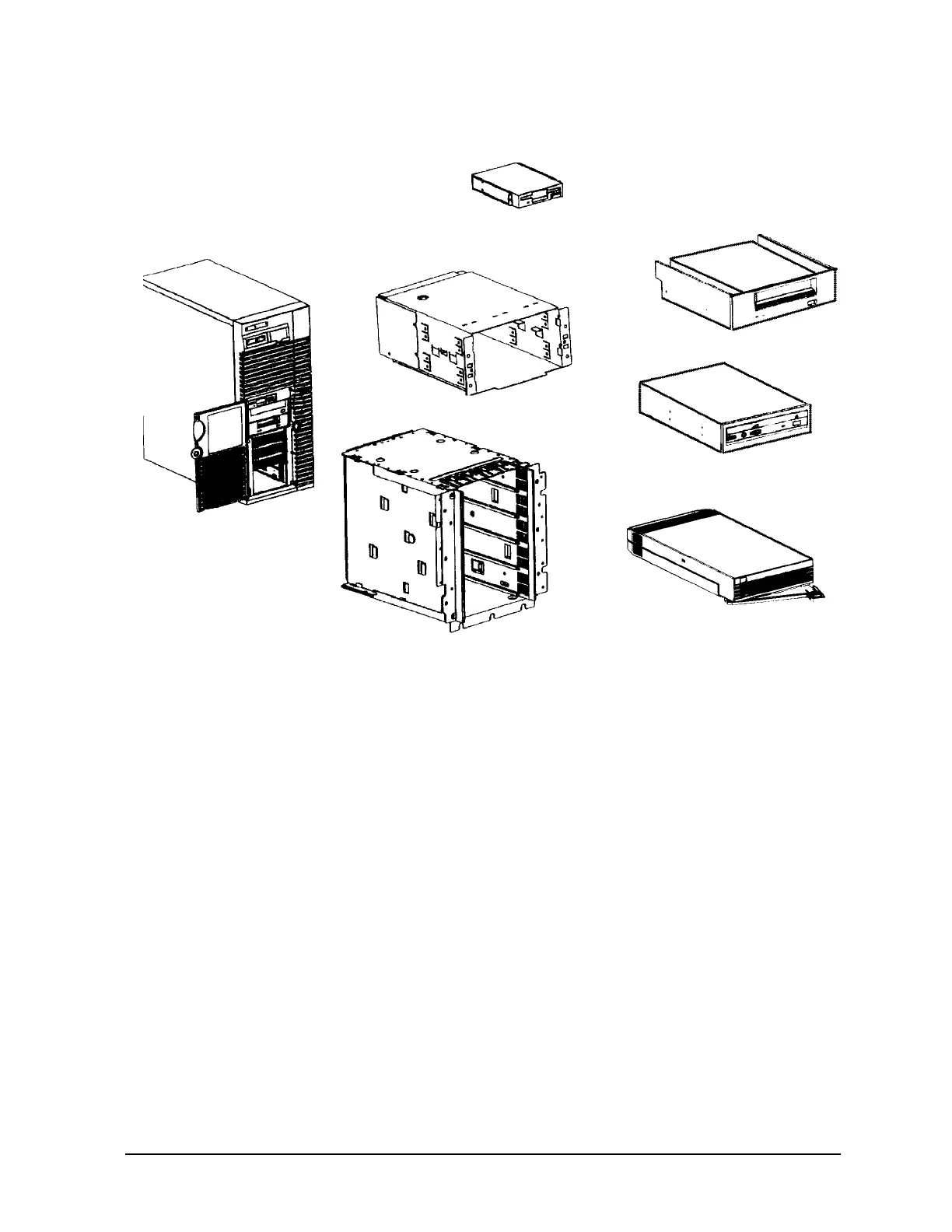

Figure 11-3 D3xx System

This figure shows the D3xx peripheral housings outside of the main chassis. The Model D3xx

includes removable media deviices on the Single-Ended SCSIbus and Hot-Pluggable disk modules on

a Fast Wide Differential SCSI bus.
