11-82 Chapter 11

SCSI Peripherals and I/O Information

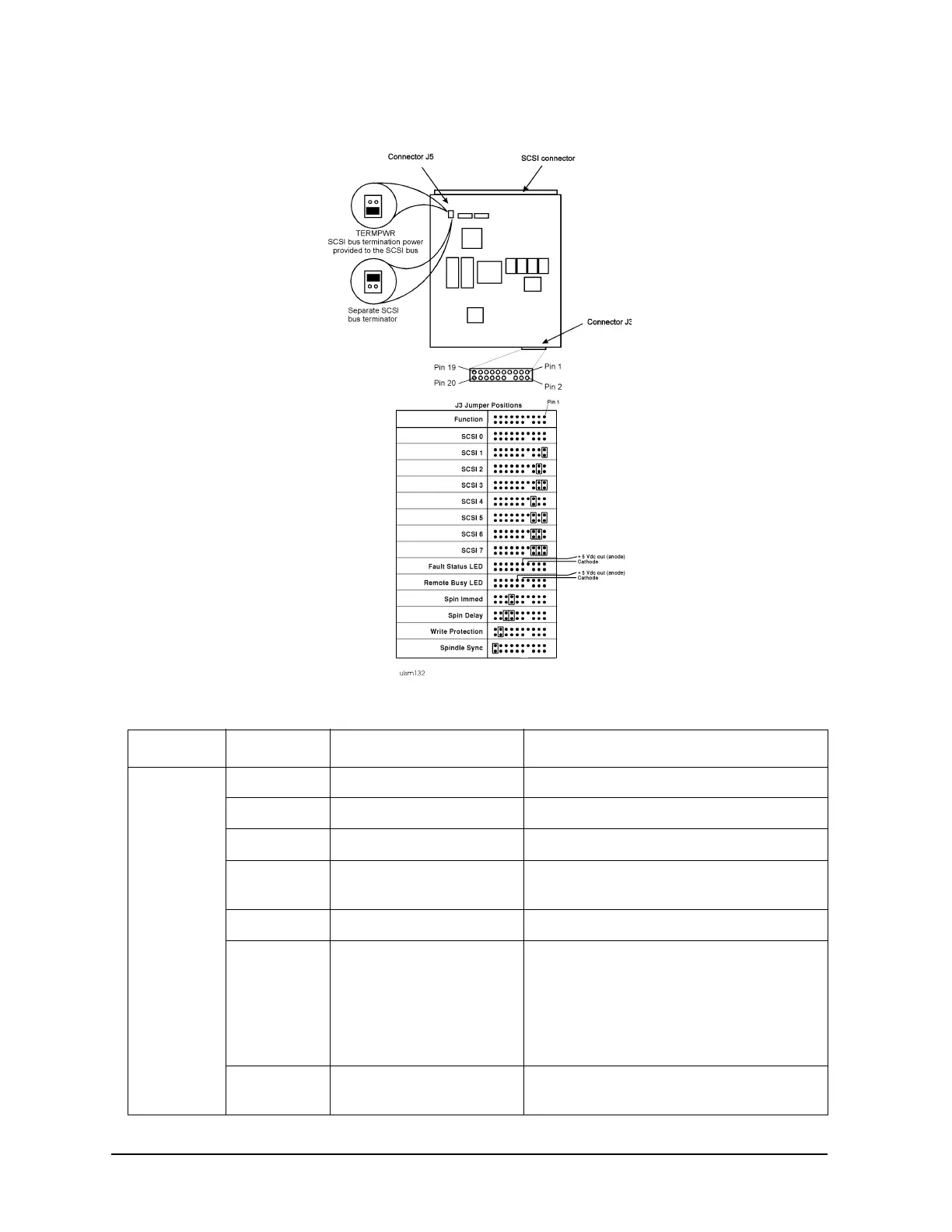

Figure 11-46 A3660A Jumpering (XP34550W)

Table 11-34 A3660A J3 Option Jumpers (XP34450W)

Connector Pin-set Function Configuration

J3 1-2 SCSI ID 0 SCSI ID bit 0. Open=0, Jumpered=1

3-4 SCSI ID 1 SCSI ID bit 1. Open=0, Jumpered=1

5-6 SCSI ID 2 SCSI ID bit 1. Open=0, Jumpered=1

7 FLT_OUT L Provides active low connection for

cathode of fault LED (used with pin 9).

8 No Connector

9 BSY_OUT L Provides active low connection for

anode of fault status LED (used with

pin 7).

Provides active low connection for

cathode of remote busy LED (used with

pin 11).

10 or 19 SPINDLE_SYNC_REF

Provides connection for Spindle sync

REF signal.
