A3660A 4 Gb SE Disk Drive

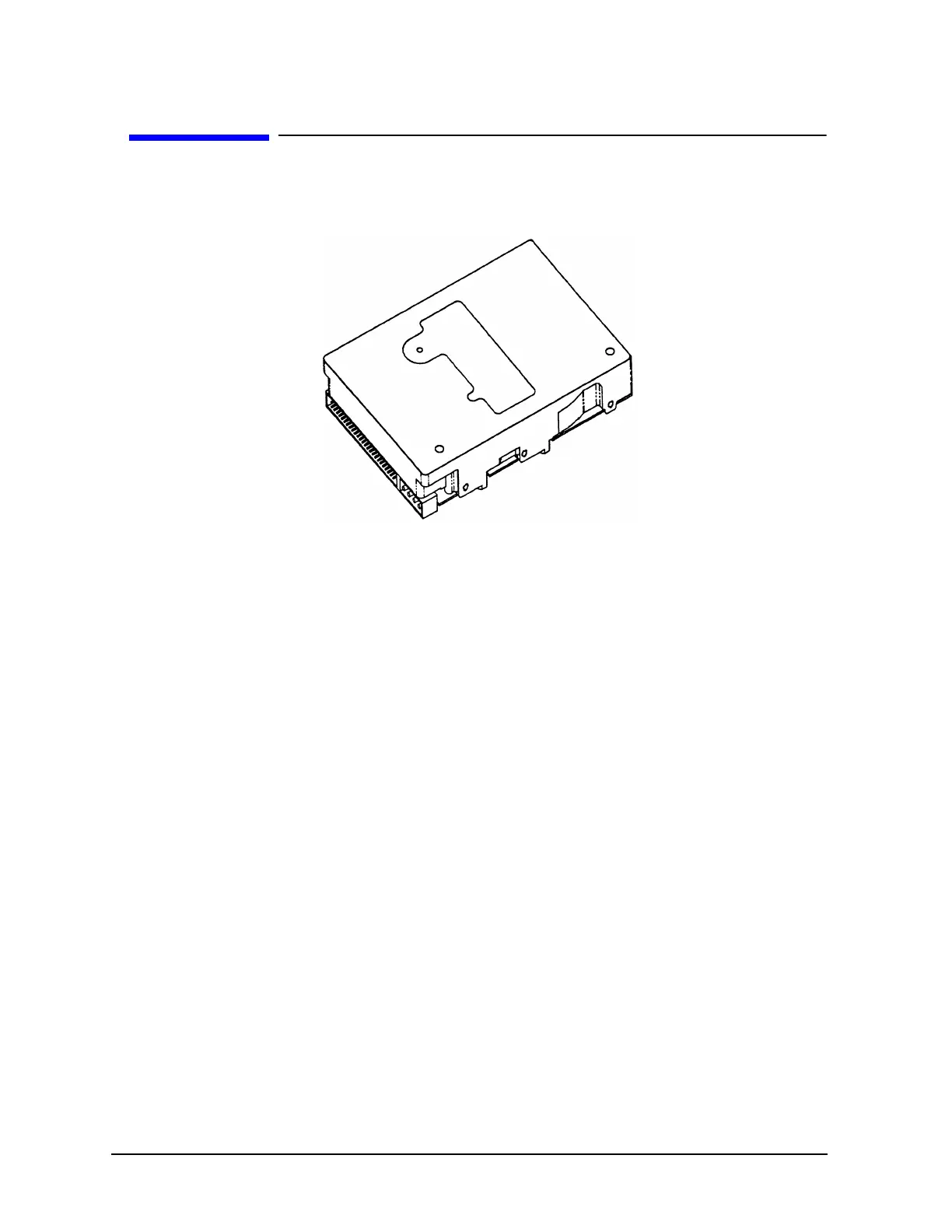

Figure 11-44 A3660A Disk Drive (ST34371N / ST34572N

•

• Integrated SE-SCSI-2 Controller

• Asynchronous and Synchronous data transfer protocol

• Downloadable Firmware

• Selectable sector sizes (default 512 bytes/sector)

• Integrated error correction protocol = 128 bit Reed-Solomon ECC

• Sealed head/disk assembly

• Dedicated head landing zone

• Automatic shipping lock

• Automatic thermal compensation

• Self-test performed at power on

• Synchronous spindle capability

• Data buffer size = 512 Kb

• Formatted data capacity limited to 4.35 Gbytes

• Programmable sector reallocation scheme

• Flawed Sector reallocation at format time

• Reallocation of defects on command (post format)

• Command Queuing - 64 commands per Initiator
