• Activate ZTP

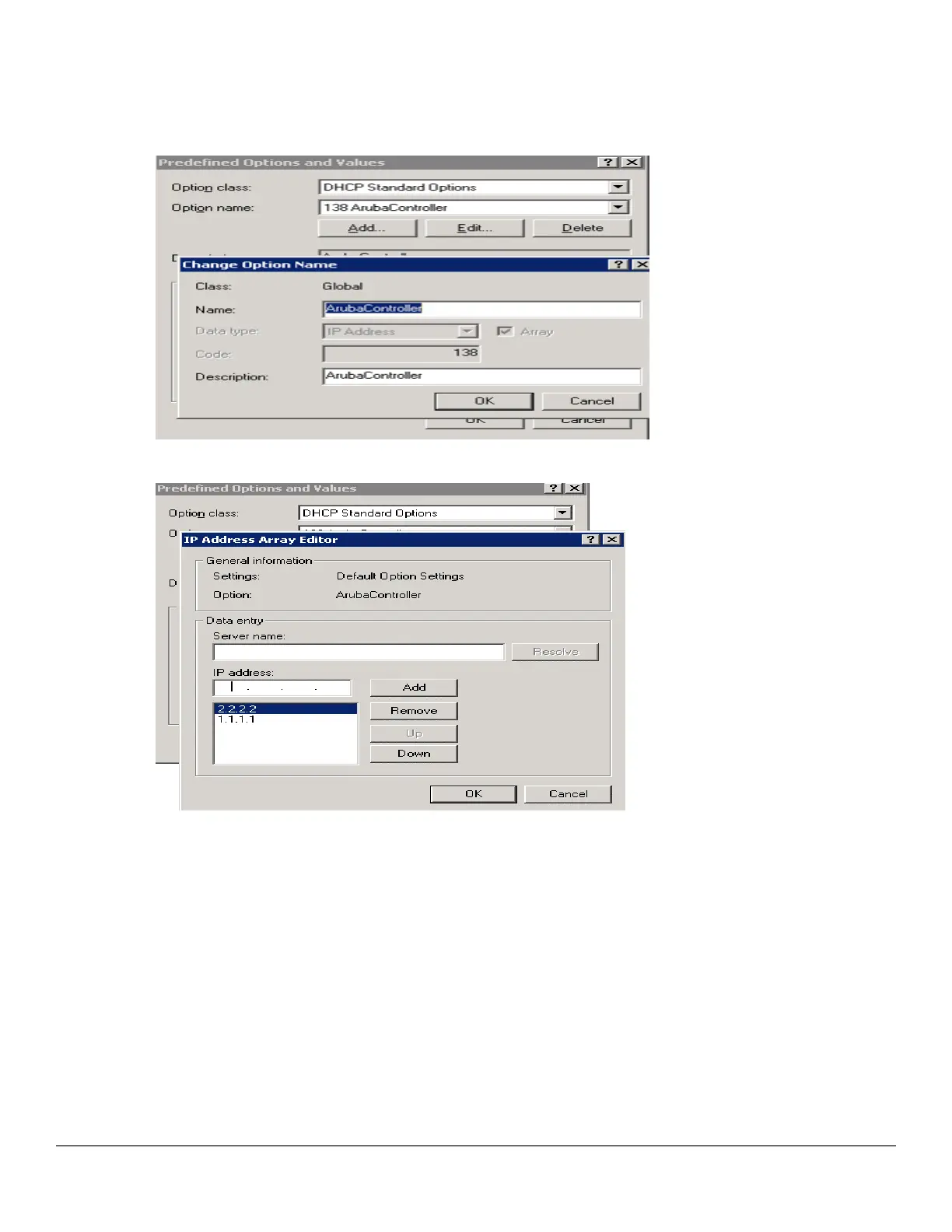

• DHCP ZTP with option 138
1. To assign controller IP addresses, select DHCP option 138.
2. Define the controller IP addresses for both the primary and secondary controllers.
• Manual configuration
IPsec Tunnel Establishment
• IPsec tunnel for AirWave is auto-configured. The switch decides to create IPsec tunnel only when an Aruba
controller IP is present in the device before establishing the connection to AirWave.
• If the controller IP is not provided, the switch will try to establish a direct connection to AirWave.
• If the controller IP is present, the switch auto configures and initiates an IPsec tunnel interface. Once the
tunnel is established, the Aruba controller provides an inner IP which the switch will then use as source IP to
send any AirWave bound traffic. The switch then creates a static route to AirWave with the IPsec tunnel
interface as the gateway.
Chapter 10 Zero Touch Provisioning with AirWave and Central 315
