Monitoring Sources For the specified local or remote session, displays the source (port, trunk, or VLAN)
interface and the MAC address (if configured) used to select mirrored traffic.
Direction For the selected interface, indicates whether mirrored traffic is entering the switch (in),
leaving the switch (out), or both.
Viewing a remote mirroring session
After you configure session 2 for remote mirroring (Figure 55: Configuring a remote mirroring session and
monitored source on page 420), you can enter the show monitor 2 command to verify the configuration
(Figure 56: Displaying the Configuration of a Remote Mirroring Session on page 420.)

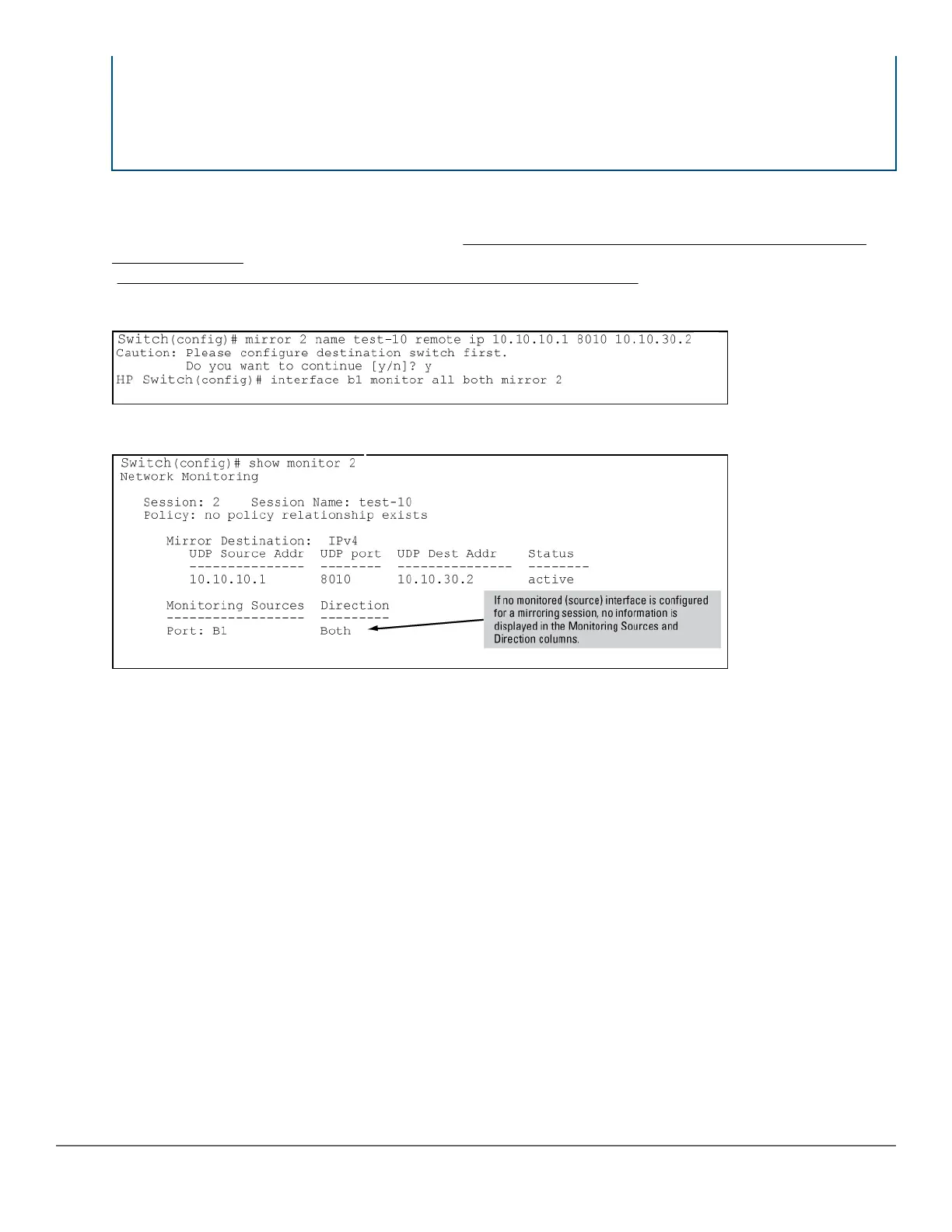

Figure 55: Configuring a remote mirroring session and monitored source
Figure 56: Displaying the Configuration of a Remote Mirroring Session
420 Aruba 2930F / 2930M Management and Configuration Guide
for ArubaOS-Switch 16.08

HP Aruba JL253A Specifications

General

Brand	HP
Model	Aruba JL253A
Category	Switch
Language	English
