To configure syslog operation in these ways with the debug/syslog feature disabled on the switch, enter the

commands shown in Figure 88: Debug/syslog configuration for multiple debug types and multiple

destinations on page 517.

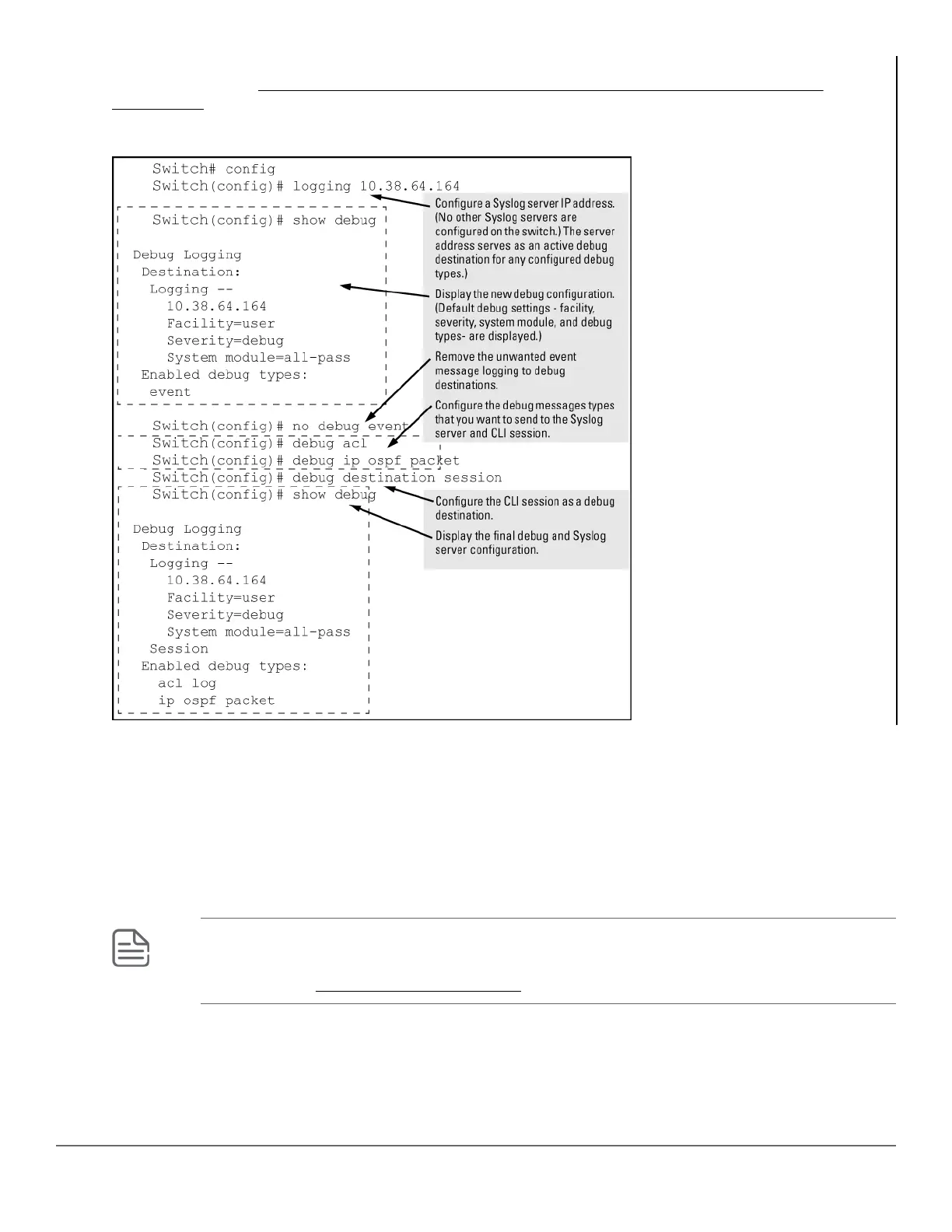

Figure 88: Debug/syslog configuration for multiple debug types and multiple destinations

Debug command

At the manager level, use the debug command to perform two main functions:

• Specify the types of event messages to be sent to an external destination.

• Specify the destinations to which selected message types are sent.

By default, no debug destination is enabled and only Event Log messages are enabled to be sent.

NOTE:

To configure a syslog server, use the logging <syslog-ip-addr> command. For more

information, see Configuring a syslog server on page 521.

Debug messages

Syntax:

[no] debug <debug-type>

Chapter 13 Troubleshooting 517
