ENGINE
B2650HSDC, B3350HSDC, WSM
1-S27

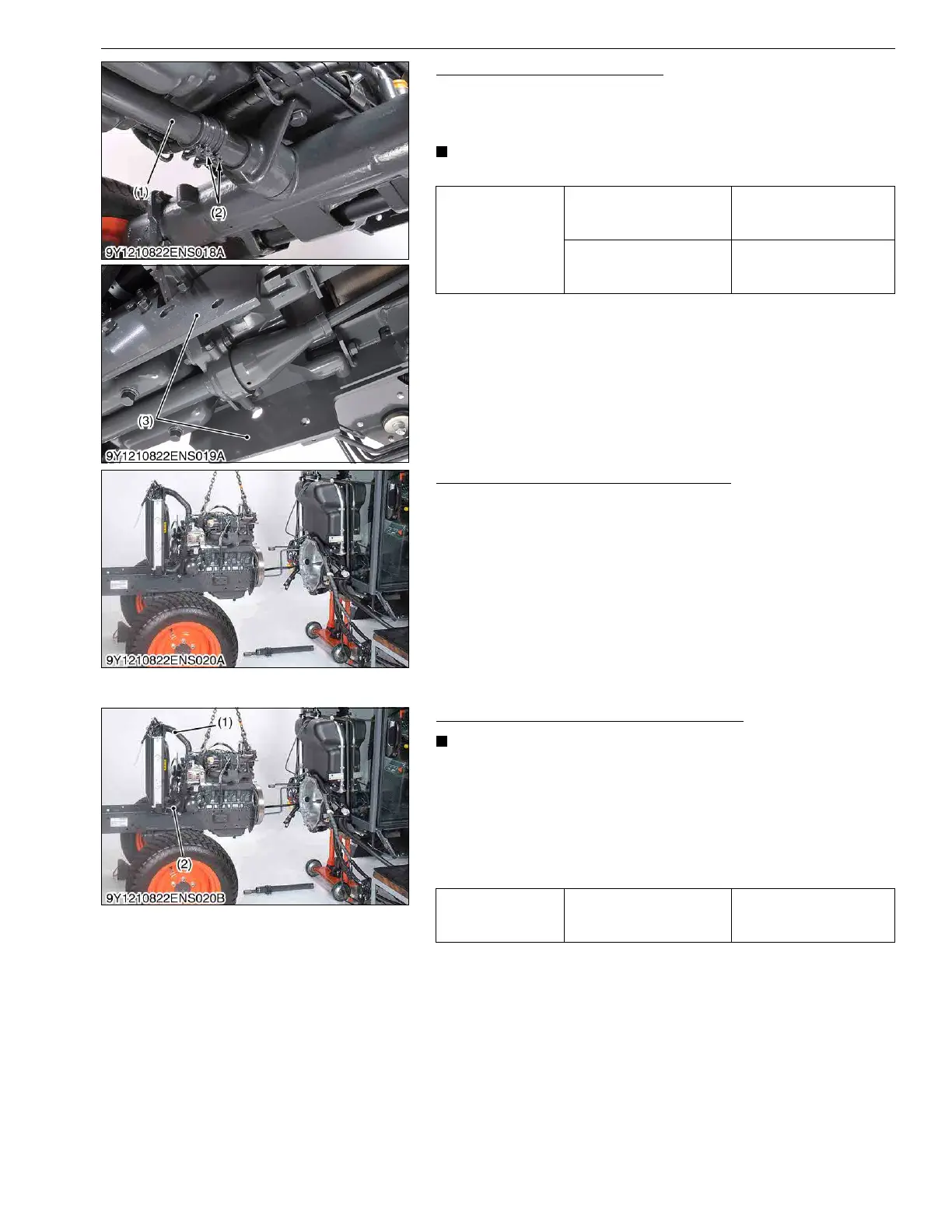

Propeller Shaft and Sub Frame
1. Slide the propeller shaft cover (1) after loosen joints (2).
2. Remove the sub frame (3).
(When reassembling)
NOTE
• Apply grease to the coupling and splines.
9Y1210822ENS0012US0
Separating Engine from Clutch Housing
1. Remove the engine screws and nuts, and separate the engine
from clutch housing.
(When reassembling)
• Apply molybdenum disulfide (Three Bond 1901 or equivalent) to
the splines of the plate boss.
• Apply liquid gasket (Three Bond 1141, 1211 or equivalent) to
joint face of the engine and clutch housing, after eliminating the
water, oil and stuck liquid gasket.
9Y1210822ENS0013US0
(3) Separating Engine from Front Axle Frame
Separating Engine from Front Axle Frame
NOTE
• When you replace the engine with new one, please record
the serial number of new engine and the parts number and
serial number of "DPF Full Assembly" which is incorporate
with its new engine.
1. Disconnect the radiator hose A (1) and radiator hose B (2).
2. Remove the engine and front axle frame mounting screw and
separate the engine from the front axle frame.
9Y1210822ENS0014US0
Tightening torque
Sub frame mounting bolt
(M12)
80 to 90 N·m
8.2 to 9.1 kgf·m
59 to 66 lbf·ft
Sub frame mounting bolt
(M14)
126 to 150 N·m
12.9 to 15.2 kgf·m
93.0 to 110 lbf·ft
(1) Propeller Shaft Cover
(2) Joint
(3) Sub Frame
Tightening torque Engine mounting screw
59 to 69 N·m
6.1 to 7.0 kgf·m
44 to 50 lbf·ft
(1) Radiator Hose A (2) Radiator Hose B
