CABIN
B2650HSDC, B3350HSDC, WSM
9-S32
[2] DISASSEMBLING AND ASSEMBLING

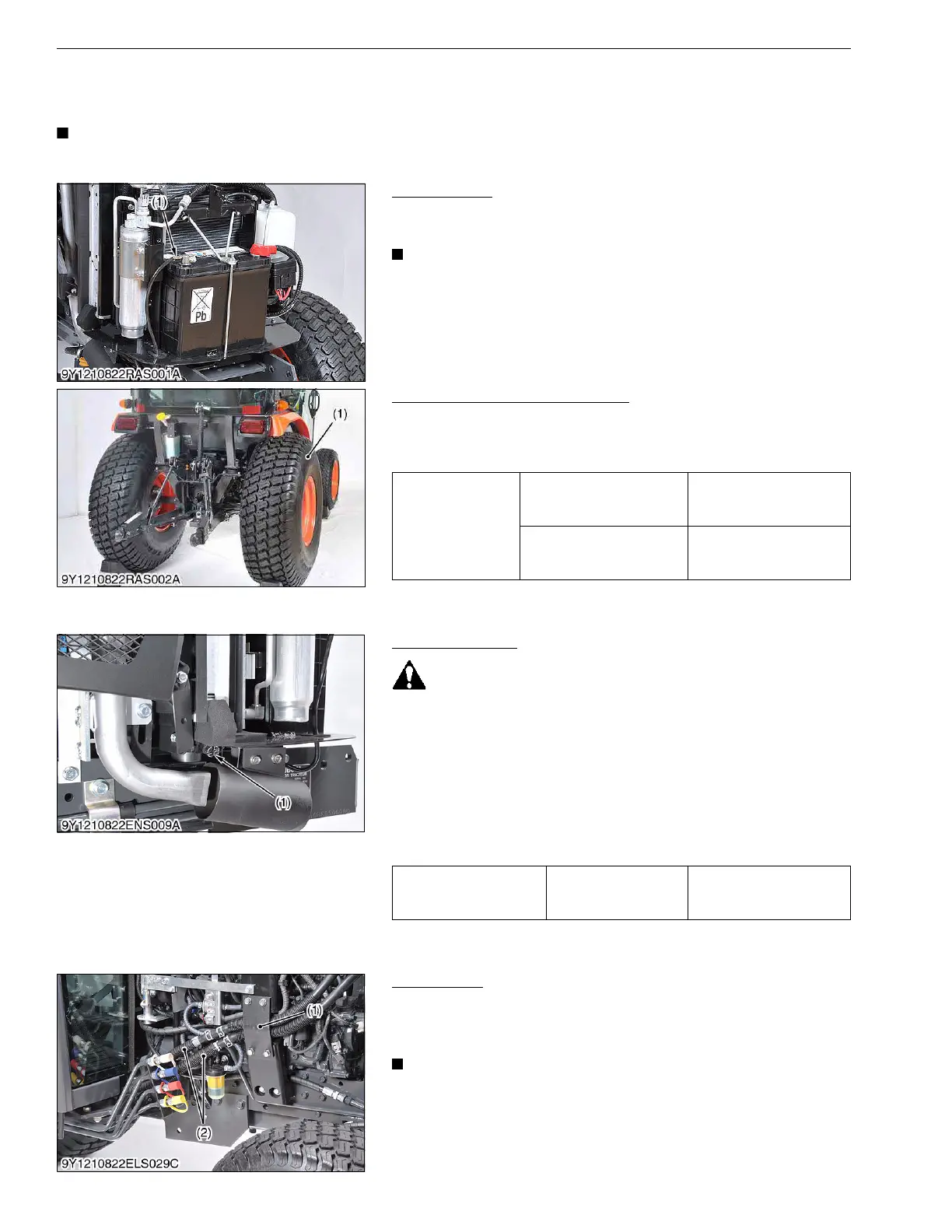

(1) Separating Cabin from Tractor Body
• Without discharging the refrigerant from system.
9Y1210822CAS0052US0
Battery Cable
1. Open the bonnet and remove the side cover.
2. Disconnect the battery negative cable (1).
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, the positive cable
first.
9Y1210822RAS0004US0
Rear Wheel and 3-Point Linkage
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel (1).
3. Remove the top link, lower links and lift rods.
9Y1210822HYS0010US0
Draining Coolant
• Never remove the radiator cap until coolant temperature is
well below its boiling point. Then loosen cap slightly to the
stop to relieve any excess pressure before removing cap
completely.
1. Stop the engine and let cool down.
2. To drain the coolant, turn the drain plug (1) counterclockwise.
3. Remove the radiator cap to completely drain the coolant.
4. After all coolant is drained, reinstall the radiator drain plug.
(When reassembling)
9Y1210822ENS0004US0
Heater Hose
1. Remove the plate (1) from pillar.
2. Disconnect the heater hoses (2), and then reconnect their
hoses to make loop.
• Put a mark to the each heater hoses before disconnecting.
9Y1210822HYS0011US0
(1) Battery Negative Cable
Tightening torque
Rear wheel mounting nut
167 to 191 N·m
17 to 19.5 kgf·m
123 to 141 lbf·ft
Rear wheel mounting
screw
196 to 225 N·m
20 to 23 kgf·m
145 to 166 lbf·ft
(1) Rear Wheel
Coolant Capacity
4.3 L
4.5 U.S.qts
3.8 Imp.qts
(1) Drain Plug
(1)Plate (2)Heater Hose
To Next Page
