Kubota B3350HSDC User Manual

FRONT AXLE
B2650HSDC, B3350HSDC, WSM
5-S4
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING

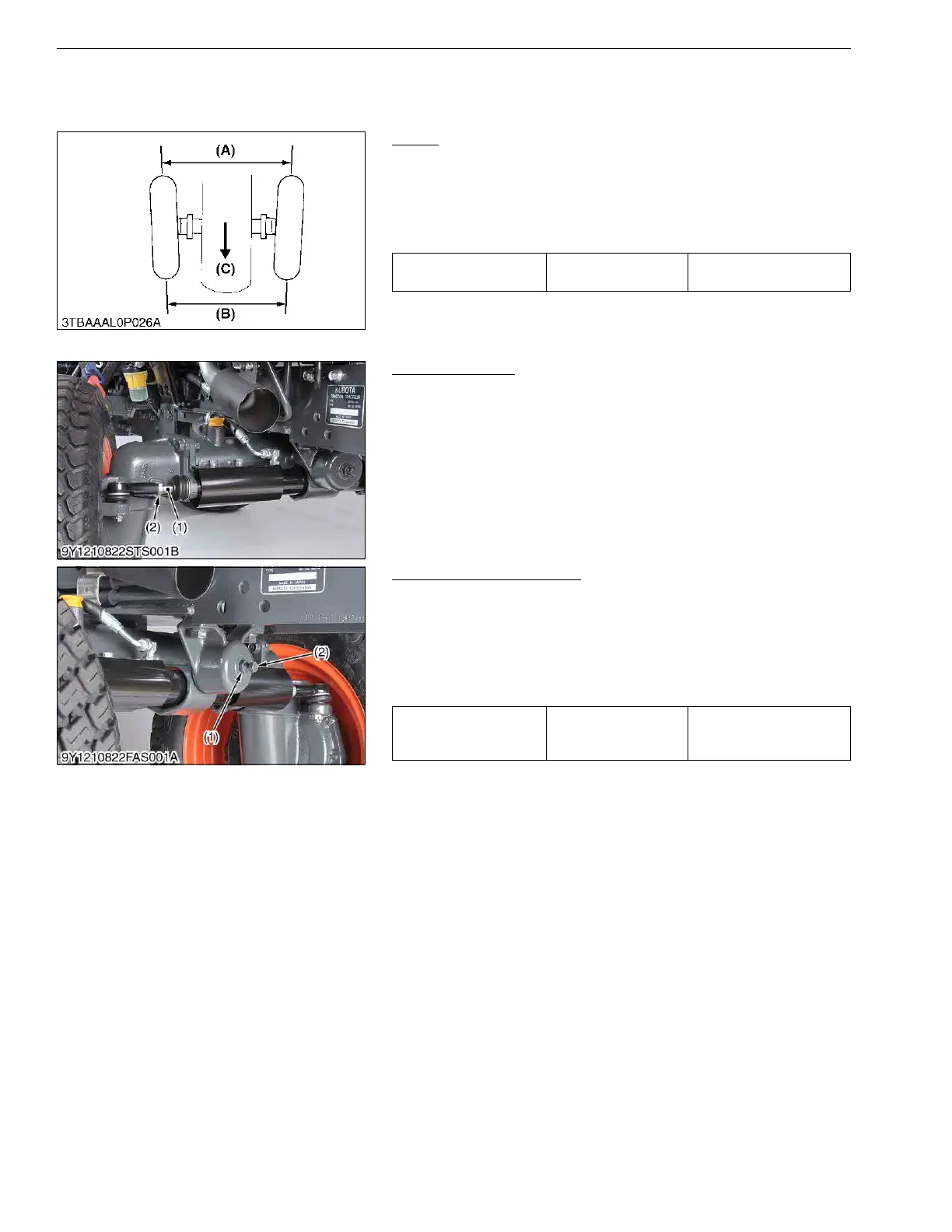

Toe-in
1. Inflate the tires to the specified pressure.
2. Turn the front wheels straight ahead.
3. Measure the toe-in (A) - (B).
4. If the measurement is not within the factory specifications,
adjust the tie-rod length.
9Y1210822FAS0004US0
Toe-in Adjusting
1. Loosen the lock nut (2).
2. Turn the tie-rod joint (1) to adjust the rod length until the proper
toe-in measurement is obtained.
3. Retighten the lock nut (2).
9Y1210822FAS0005US0
Front Axle Rocking Force
1. Jack up the front side of tractor.
2. Set a spring balance to the front axle flange.
3. Measure the front axle rocking force.
4. If the measurement is not within the factory specifications,
adjust with the adjusting screw (2).
5. Tighten the lock nut (1) firmly.
9Y1210822FAS0006US0
Toe-in (A) - (B) Factory specification
0 to 10 mm
0 to 0.39 in.
(A) Wheel to Wheel Distance at Rear
(B) Wheel to Wheel Distance at Front
(C) Front
(1) Tie-rod Joint (2) Lock Nut
Front axle rocking force Factory specification
50.0 to 100 N
5.1 to 10.2 kgf
11.3 to 22.4 lbf
(1) Lock Nut (2) Adjusting Screw
KiSC issued 05, 2014 A
