HYDRAULIC SYSTEM
B2650HSDC, B3350HSDC, WSM
7-S11

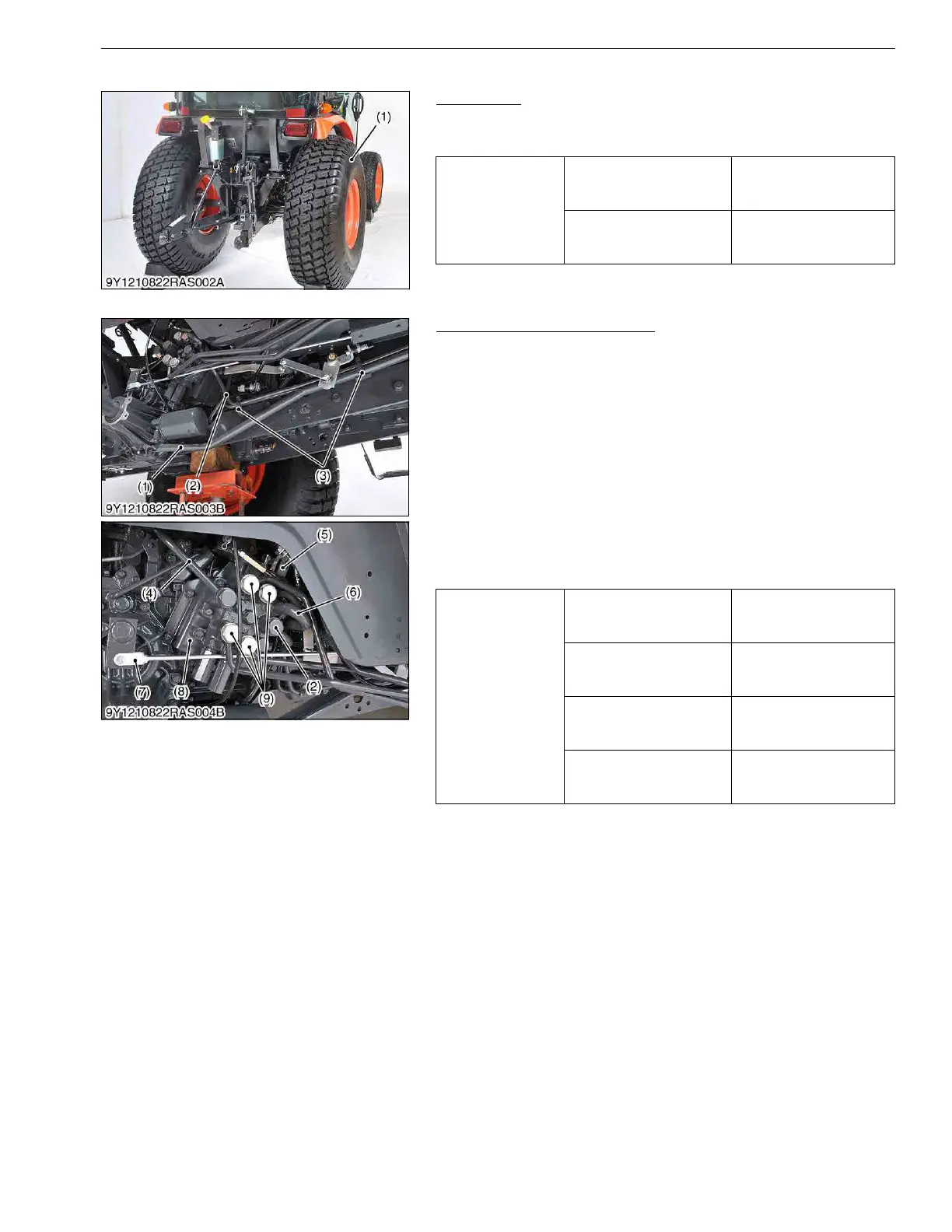

(3) Removing Front Loader Control Valve Assembly
Rear Wheel
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel (1).
9Y1210822RAS0005US0
Front Loader Valve Assembly
1. Remove the brake rod (7).
2. Remove the front loader valve pipes (9), 3-point hitch delivery
pipe 2 (4) and return hose (6).
3. Remove the pipe clamps (3), 3-point hitch delivery pipe 1 (2)
and suction pipe (1).
4. Remove the loader valve assembly (8).
5. Remove the cable stay (5) with cables.
(When reassembling)
• Do not damage the O-rings of front loader valve pipes and
delivery pipes.
• Apply liquid gasket (Three Bond 1206D or equivalent) to joint
face of the rear axle case and differential gear case after
eliminating the water and oil.
9Y1210822HYS0026US0
Tightening torque
Rear wheel mounting nut
167 to 191 N·m
17 to 19.5 kgf·m
123 to 141 lbf·ft
Rear wheel mounting
screw
196 to 225 N·m
20 to 23 kgf·m
145 to 166 lbf·ft
(1) Rear Wheel
Tightening torque
Front loader valve pipe joint
bolt
48 to 70 N·m
4.9 to 7.1 kgf·m
36 to 51 lbf·ft
3-point hitch delivery pipe 1
joint bolt
48 to 70 N·m
4.9 to 7.1 kgf·m
36 to 51 lbf·ft
3-point hitch delivery pipe 2
joint bolt (Front loader
valve side)
48 to 70 N·m
4.9 to 7.1 kgf·m
36 to 51 lbf·ft
3-point hitch delivery pipe 2
joint bolt (Hydraulic cylinder
case side)
50 to 60 N·m
5.1 to 6.1 kgf·m
37 to 44 lbf·ft
(1) Suction Pipe
(2) 3-Point Hitch Delivery Pipe 1
(3) Clamp
(4) 3-Point Hitch Delivery Pipe 2
(5) Cable Stay
(6) Return Hose
(7) Brake Rod
(8) Loader Valve Assembly
(9) Front Loader Valve Pipe
KiSC issued 05, 2014 A
