ELECTRICAL SYSTEM

B2650HSDC, B3350HSDC, WSM

8-S49

[9] RELAY

Engine Stop Solenoid Relay and ACC Relay

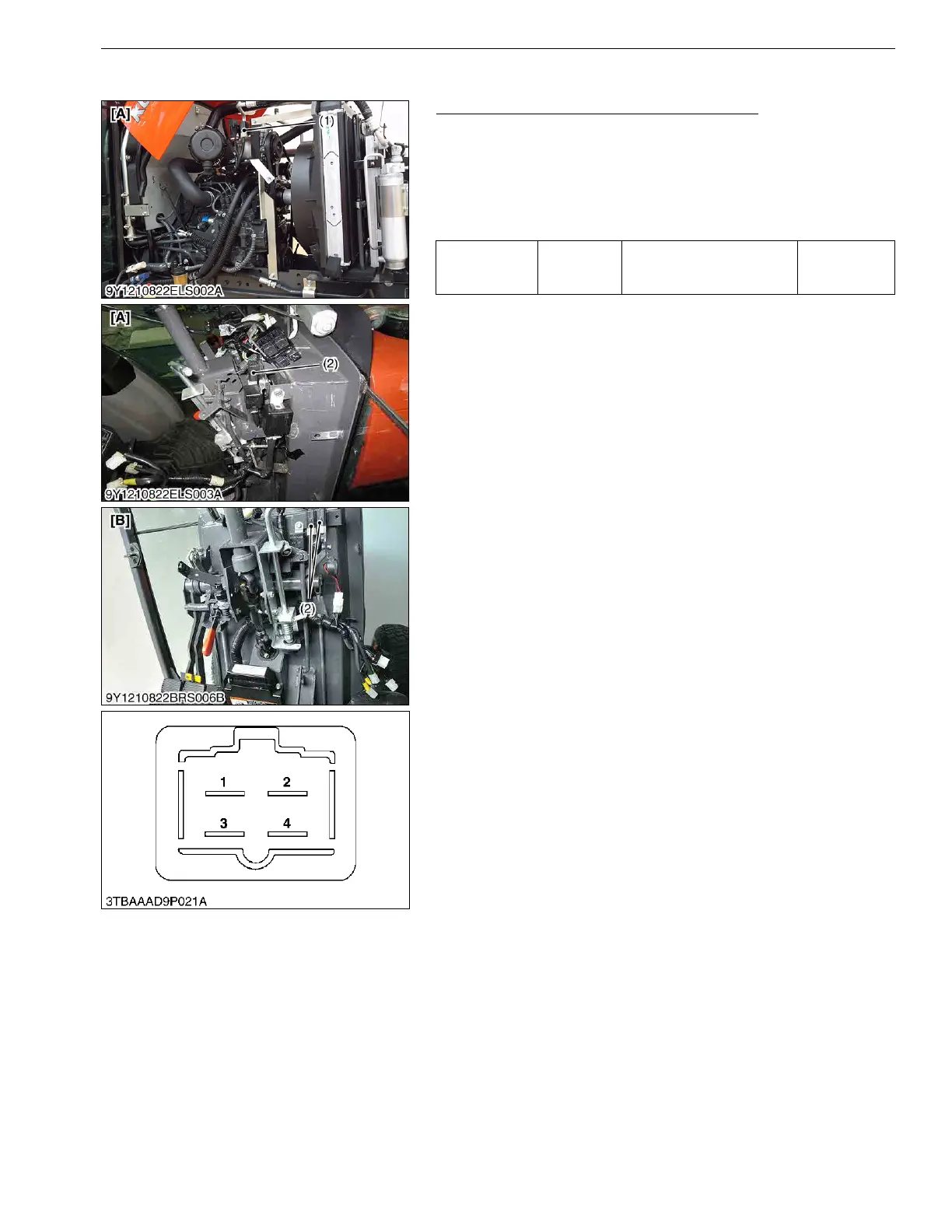

1. Open the bonnet and remove the engine stop solenoid relay (1).

(B2650 Only)

2. Remove the panel lower cover and remove the ACC relay (2).

3. Apply battery voltage across 2 terminal and 4 terminal, and

check for continuity across 1 terminal and 3 terminal.

4. If 0 Ω is not indicated, renew the relay (1), (2).

9Y1210822ELS0013US0

Resistance

1 terminal –

3 terminal

Battery voltage is applied

across 2 terminal and 4

terminal

0 Ω

(1) Engine Stop Solenoid Relay

(2) ACC Relay

[A] B2650

[B] B3350

KiSC issued 05, 2014 A
