HYDRAULIC SYSTEM
B2650HSDC, B3350HSDC, WSM
7-M1

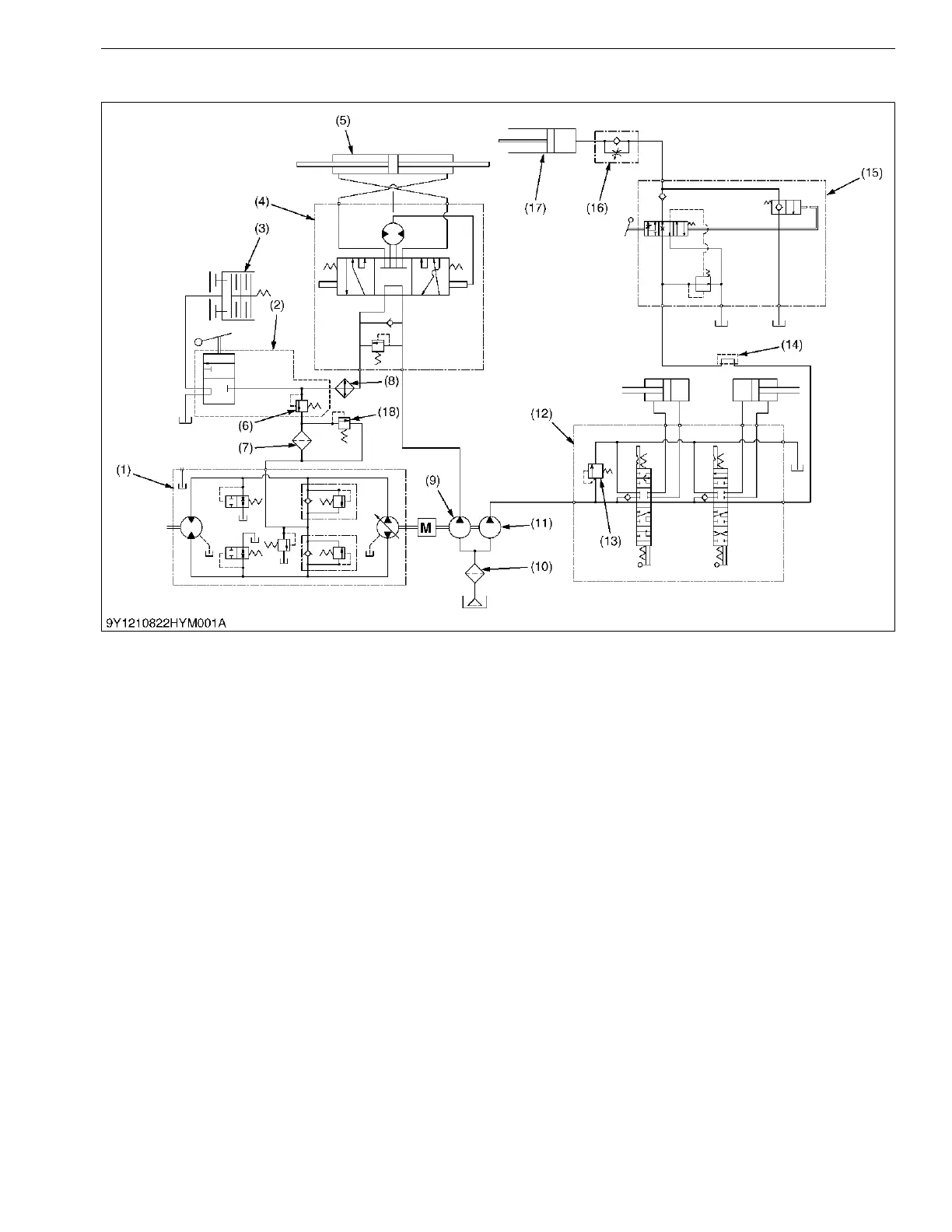

1. HYDRAULIC CIRCUIT
(1) Hydraulic System
The hydraulic system consist of hydraulic pumps (9) (11), power steering, independent PTO, HST (1), and
3-points hitch and other components.
1. Hydraulic power take off from the hydraulic block type outlet to operate the implements such as a front loader,
front blade, rear blade and etc..
2. Hydraulic oil operates power steering, independent PTO clutch, HST and 3-point hitch.
9Y1210822HYM0001US0
(1) Hydrostatic Transmission
(HST)
(2) Independent PTO Control
Valve
(3) Independent PTO Clutch
(4) Power Steering Controller
(5) Power Steering Cylinder
(6) Relief Valve
(7) Oil Filter Cartridge
(8) Oil Cooler
(9) Hydraulic Pump (for Power
Steering, Independent PTO
and HST)
(10) Oil Filter Cartridge
(11) Hydraulic Pump (for 3-Points
Hitch)
(12) Hydraulic Block (for Front
Loader)
(13) Relief Valve
(14) Hydraulic Block
(15) Control Valve
(16) Lowering Speed Adjusting
Valve
(17) Hydraulic Cylinder
(18) Relief Valve
To Next Page
