TRANSMISSION
B2650HSDC, B3350HSDC, WSM
2-M18
7. PTO SYSTEM

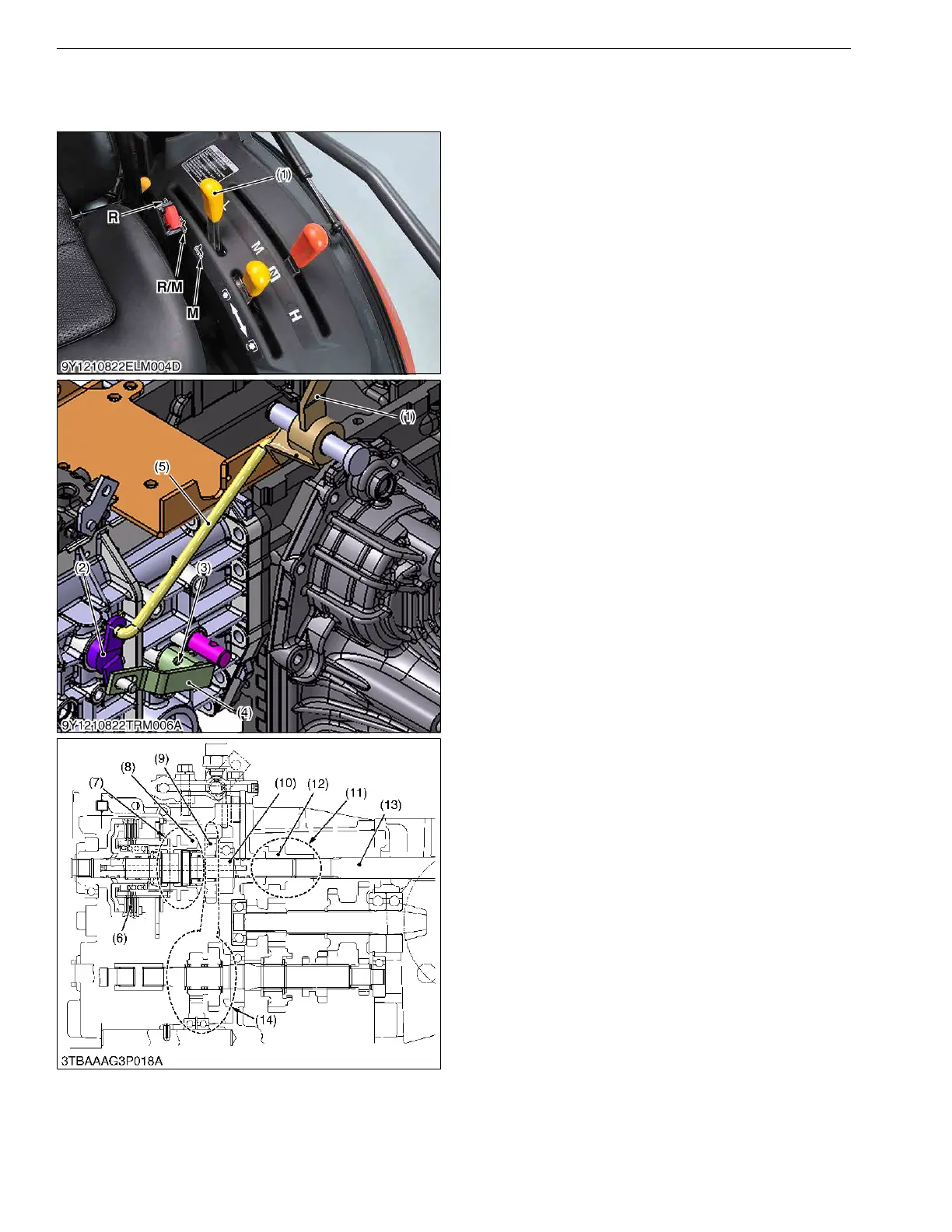

[1] STRUCTURE
The PTO shift lever (1) is located at left side fender.
The PTO shift lever (1) and the PTO shift arm (2) are
linked with the control rod (5).
The PTO shift arm (2) and the rear PTO arm (3)
linked with the rear PTO control plate (4).
The PTO shift arm (2) shifts the PTO shifter (8).
The rear PTO arm (3) shifts the rear PTO shifter (12).
PTO gear section consists of four sections.
The first section is independent PTO section.
The second section is PTO position selection
section.
The third section is mid-PTO selection section.
The fourth section is rear PTO rotation prevention
section.
In this section, when the PTO shift lever is set to
"Mid-PTO" shifter slides to the front side and shifter
meshes to the housing.
The rear PTO shift does not rotate at this "Mid-PTO"
position.
9Y1210822TRM0015US0
(1) PTO Shift Lever
(2) PTO Shift Arm
(3) Rear PTO Arm
(4) Rear PTO Control Plate
(5) Control Rod
(6) Independent PTO Clutch
(7) PTO Position Selection
Section
(8) PTO shifter
(9) 26T Mid Gear
(10) PTO Clutch Shaft
(11) Rear PTO Rotation
Prevention Section
(12) Rear PTO shifter
(13) 9T Rear PTO Shaft
(14) Mid PTO Selection Section
R : "REAR PTO" Position
R/M :"REAR PTO / MID PTO"
Position
M : "MID PTO" Position
KiSC issued 05, 2014 A
