TRANSMISSION
B2650HSDC, B3350HSDC, WSM
2-M2
2. FRONT CASE
In this tractor, clutch disc is not installed.
The steel plate (3) is installed on the flywheel (1).
Power from the engine is transmitted through the
steel plate (3) to the clutch shaft (4) and HST pump shaft.
9Y1210822TRM0002US0

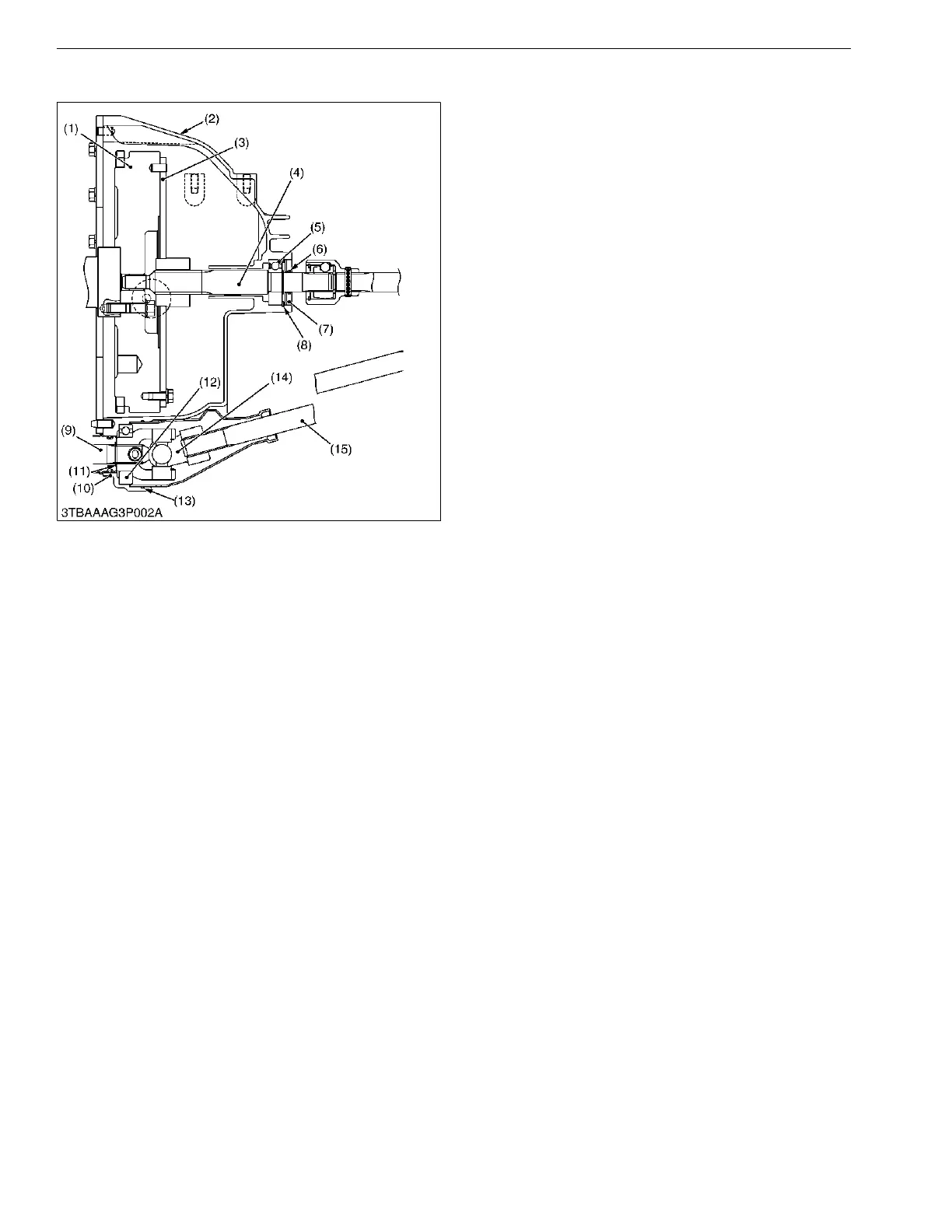

(1) Flywheel
(2) Clutch Housing
(3) Steel Plate
(4) Clutch Shaft
(5) Ball Bearing
(6) External Cir-clip
(7) Oil Seal
(8) Internal Cir-clip
(9) Front Drive Shaft
(10) O-Ring
(11) External Cir-clip
(12) Ball Bearing
(13) O-Ring
(14) Universal Joint
(15) Rear Drive Shaft
To Next Page
