ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S60

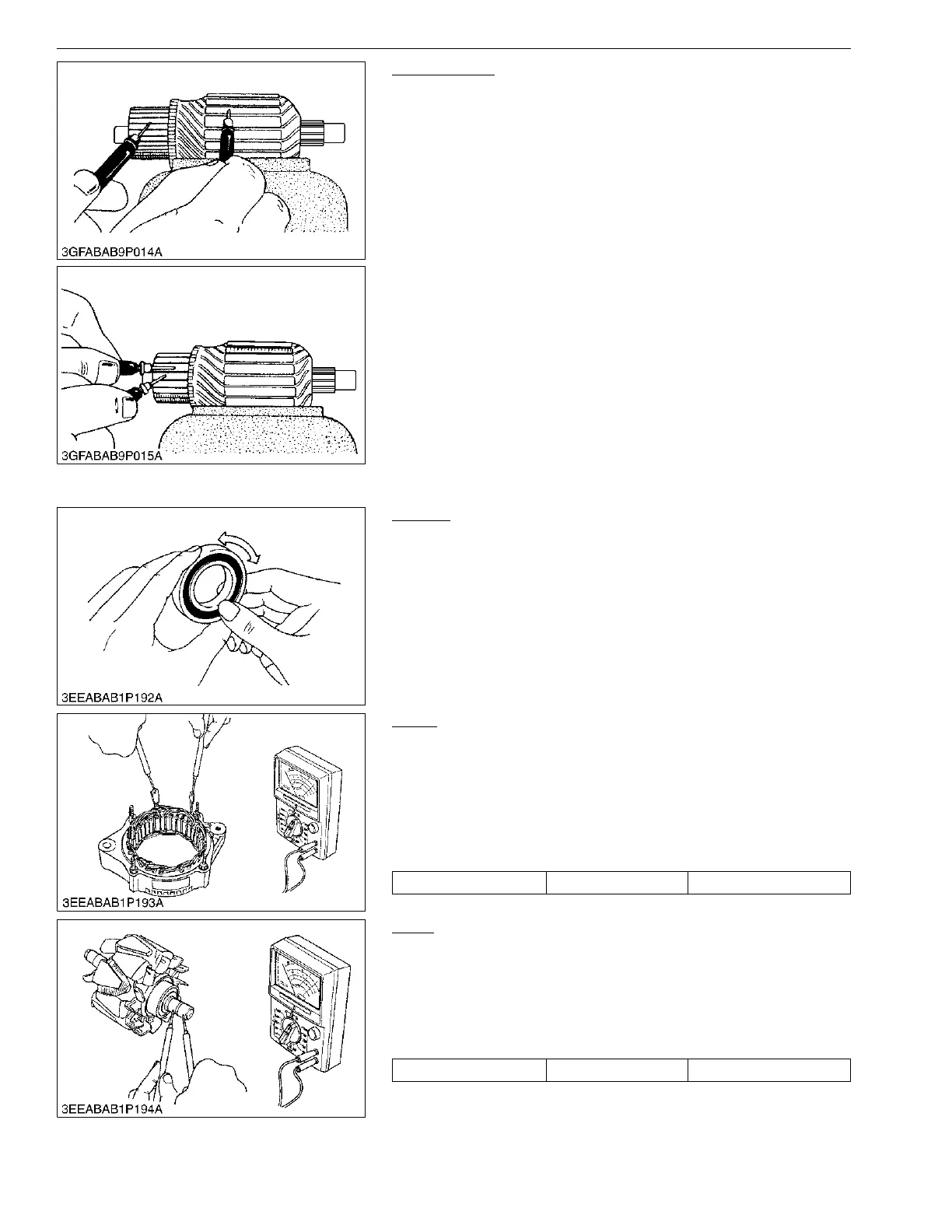

Armature Coil
1. Check the continuity between the commutator and armature coil
core with an ohmmeter.
2. If it conducts, replace the armature.
3. Check the continuity between the segments of the commutator
with an ohmmeter.
4. If it does not conduct, replace the armature.
9Y1210822ELS0103US0
[2] ALTERNATOR
Bearing
1. Check the bearing for smooth rotation.
2. If it does not rotate smoothly, replace it.
9Y1210822ELS0104US0
Stator
1. Measure the resistance across each lead of the stator coil with
an ohmmeter.
2. If the measurement is not within factory specification, replace it.
3. Check the continuity across each stator coil lead and core with
an ohmmeter.
4. If the measurement is not within the factory specifications,
replace it.
9Y1210822ELS0105US0
Rotor
1. Measure the resistance across the slip rings with an ohmmeter.
2. If the resistance is not the factory specification, replace it.
3. Check the continuity across the slip ring and core with an
ohmmeter.
4. If the measurement is not within the factory specifications,
replace it.
9Y1210822ELS0106US0
Resistance Factory specification Less than 1.0 Ω
Resistance Factory specification 2.9 Ω
