TRANSMISSION
B2650HSDC, B3350HSDC, WSM
2-M17
6. FRONT WHEEL DRIVE SECTION
Front wheel drive lever (1) is located at the front floor
cover.
Front wheel drive lever (1) and shifter (3) are linked.
19T shifter gear (5) is located on the front wheel
drive shifter (4).
2-wheel drive or 4-wheel drive is selected by
changing the position of 19T shifter gear (5) reverse or
forward.
When the font wheel drive lever (1) is set to "4
Wheel Drive" position, 19T shifter gear (5) slides
forward, meshes the 14T gear (6) on the 6T bevel pinion
shaft (9).
In this state, power from the 6T bevel pinion shaft (9)
is transmitted through 19T shifter gear (5) to the front
wheel drive shaft (4) and the front wheels.
9Y1210822TRM0014US0

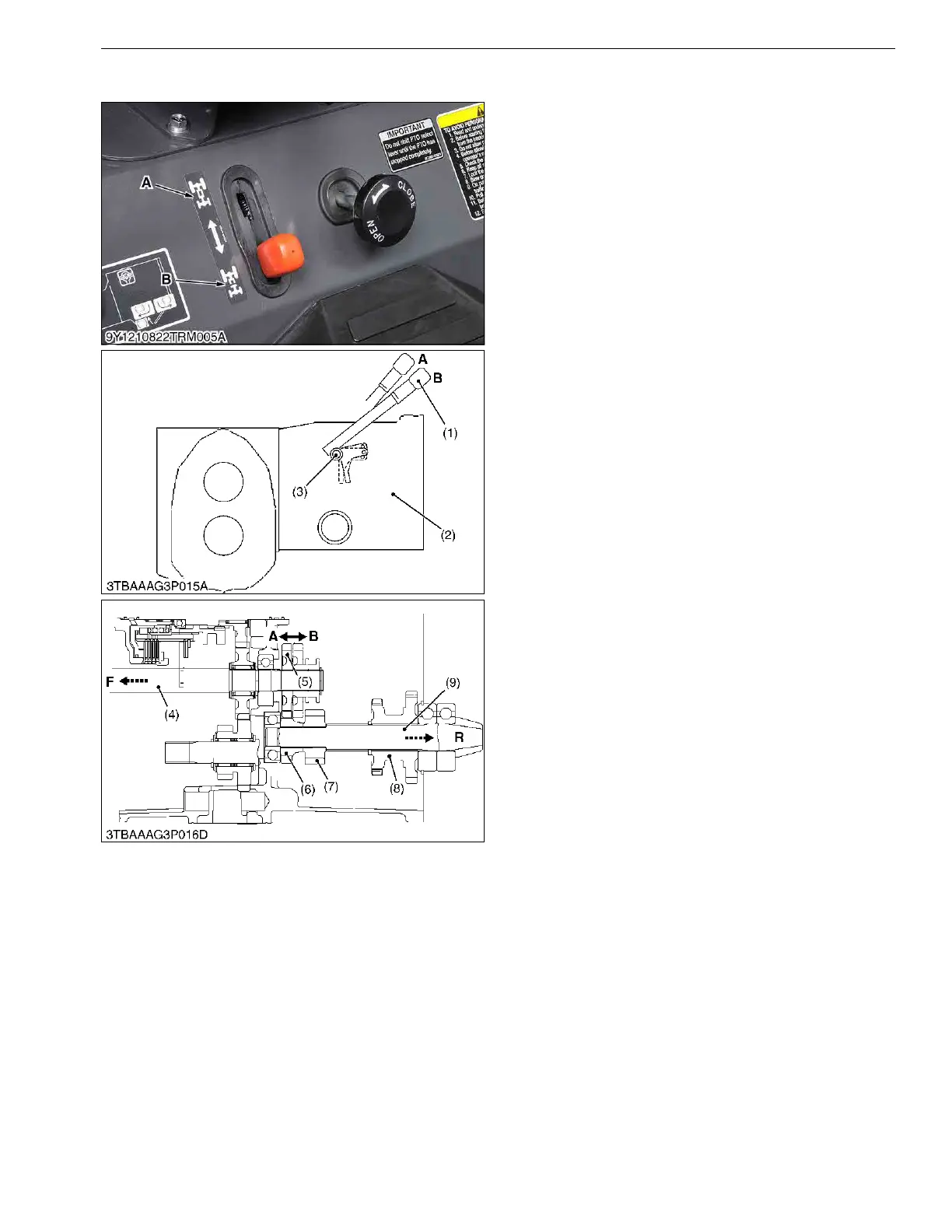

(1) Front Wheel Drive Lever
(2) Transmission Case
(3) Shifter
(4) Front Wheel Drive Shaft
(5) 19T Shifter Gear
(6) 14T Gear
(7) 17T Gear (B2650)
15T Gear (B3350)
(8) 25T-29T Gear (B2650)
24T-29T Gear (B3350)
(9) 6T Bevel Pinion Shaft
A : "4 Wheel Drive" Position
B : "2 Wheel Drive" Position
F : Power to Front Wheels
R : Power to Rear Wheels
