GENERAL
B2650HSDC, B3350HSDC, WSM
G-32
Changing Front Axle Case Oil
1. Park the tractor on a firm, flat and level surface.
2. To drain the used oil, remove the right and left drain plugs and
filling plug at the front axle case and drain the oil completely into
the oil pan.
3. After draining, reinstall the drain plugs.
4. Fill with new oil up to the upper notch on the dipstick.
Refer to G-9.
• After ten minutes, check the oil level again; add oil to
prescribed level.
5. After filling, reinstall the filling plug.
6. Properly dispose of used oil.
9Y1210822GEG0046US0
[7] CHECK POINTS OF EVERY 400 HOURS
Adjusting Front Axle Pivot
1. If the front axle pivot pin adjustment is not correct, front wheel
vibration can occur causing vibration in the steering wheel.
Adjusting procedure
1. Loosen the lock nut, and tighten the adjusting screw so that the
oscillating load is 50 to 100 N (5.1 to 10.2 kgf, 11.2 to 22.5 lbf).
(If the adjusting screw is tightened, loosened and retightened,
apply liquid gasket to its tip.)
2. Retighten the lock nut.
9Y1210822GEG0047US0
Replacing Fuel Filter Element
1. The fuel filter element should be replaced every 400 hours. See
page G-25.
9Y1210822GEG0048US0
[8] CHECK POINT OF EVERY 800 HOURS
Adjusting Engine Valve Clearance
• See page 1-S13.
9Y1210822GEG0049US0
[9] CHECK POINT OF EVERY 1500 HOURS
Checking Fuel Injection Nozzle Injection Pressure
• See page 1-S19.
9Y1210822GEG0050US0
[10] CHECK POINT OF EVERY 3000 HOURS
Checking Injection Pump
• See page 1-S18.
9Y1210822GEG0051US0

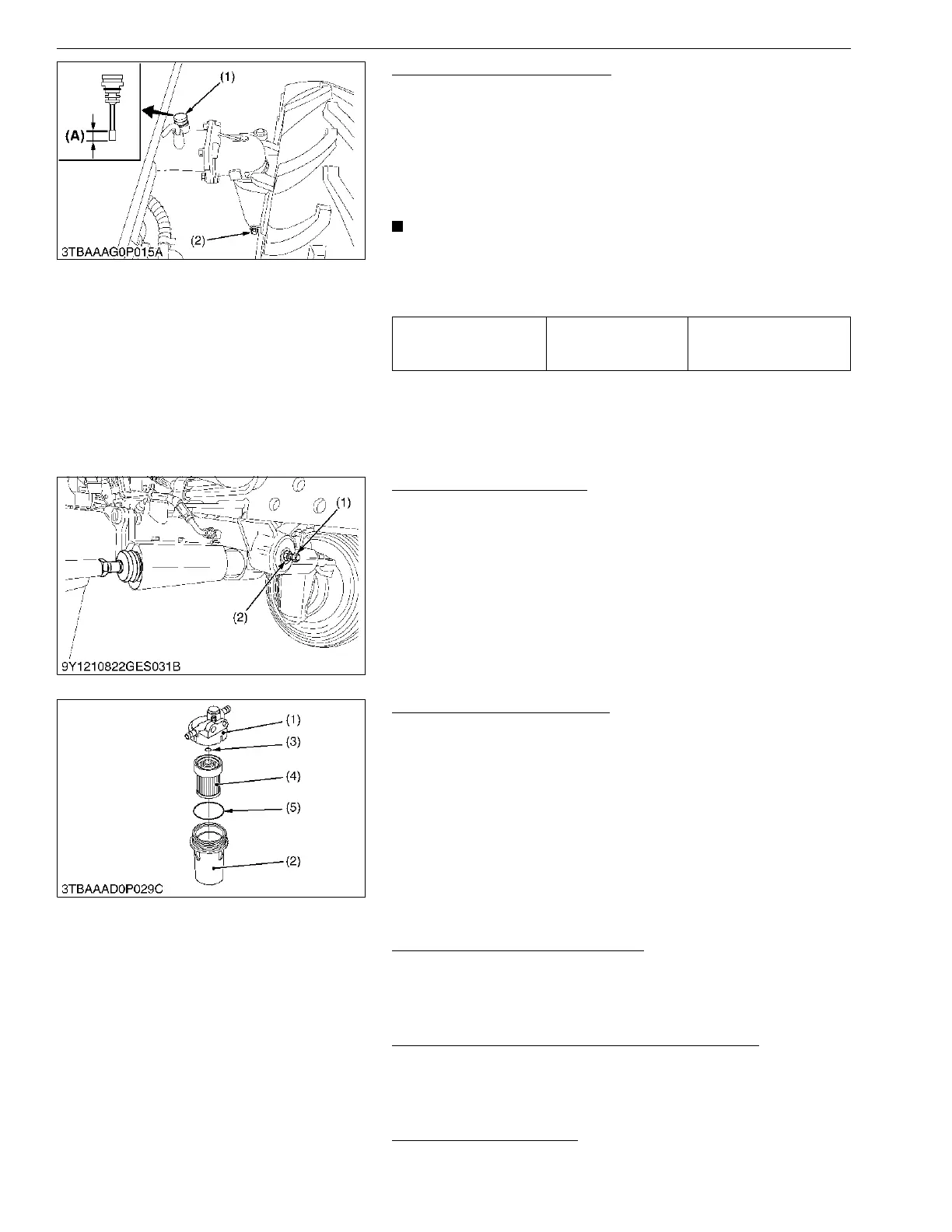

Front axle case oil Capacity
4.7 L
5.0 U.S.qts
4.1 Imp.qts
(1) Filling Plug with Dipstick
(2) Drain Plug
(A) Oil level is acceptable within this
range.
(1) Adjusting Screw (2) Lock Nut
(1) Filter Bracket
(2) Fuel Filter Bowl
(3) O-ring
(4) Filter Element
(5) O-ring
