ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S46

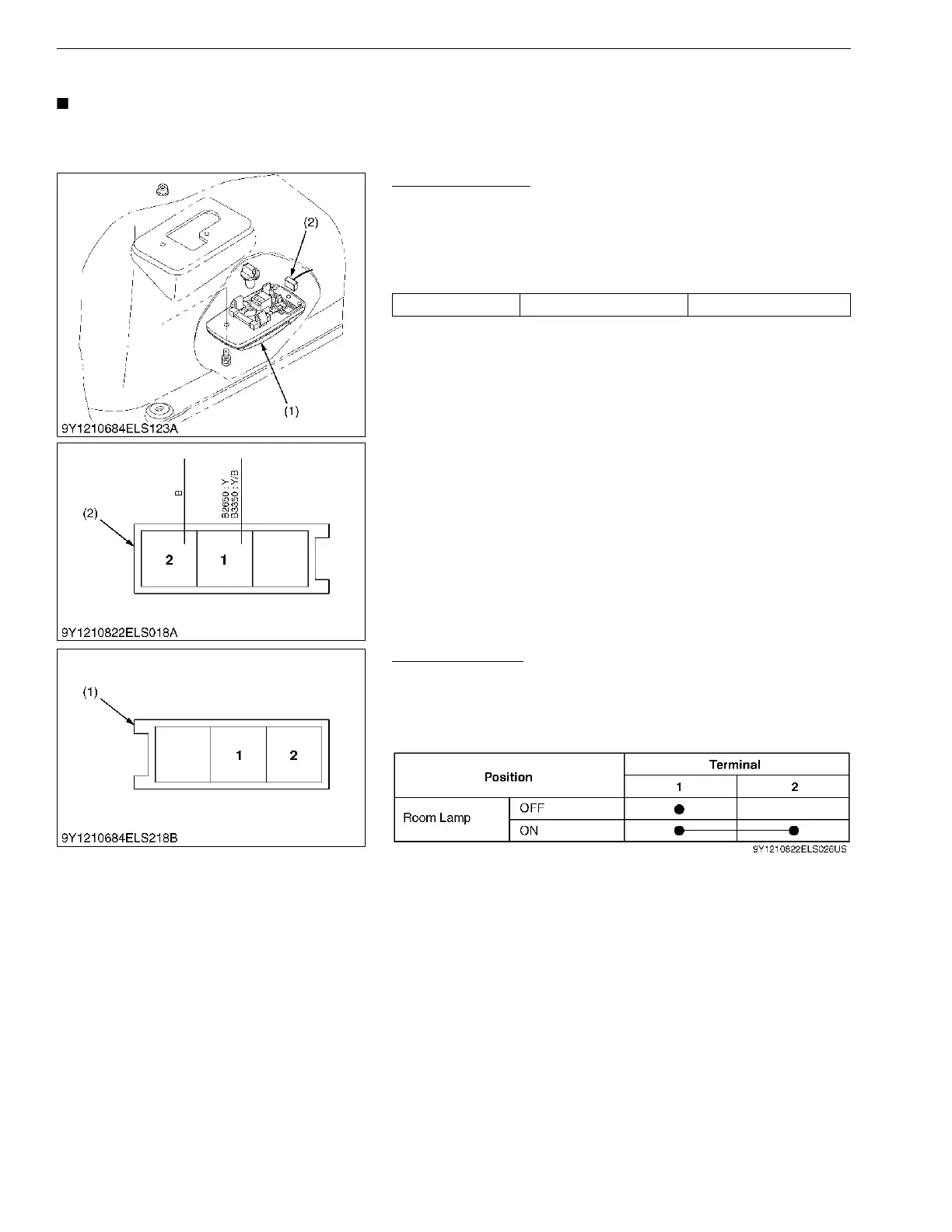

(5) Room Lamp
• Firstly check the connector voltage, secondly check the other wires continuity, then finally check the
switch continuity.
9Y1210822ELS0049US0
Connector Voltage
1. Disconnect the connector.
2. Measure the voltage with a voltmeter across the terminals
shown in the table below.
3. If the reference value is not indicated as shown in the table
below, check the relating electric circuit.
9Y1210822ELS0050US0
Switch Continuity
1. Check the continuity across the terminals shown in the table
below.
2. If the continuity shown below is not indicated, the switch is
faulty.
9Y1210822ELS0051US0
Voltage Terminal 1 – chassis Approx. battery voltage
(1) Room Lamp Switch (2) Connector (Harness Side)
(1) Connector (Switch Side)
To Next Page
