ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-M9
(2) Independent PTO Lever Switch
Independent PTO Lever Switch
This switch locations at the top of the independent
PTO control valve.
This switch is a push type.
This switch detects the independent PTO valve
operating.
When the independent PTO lever is set to
"DISENGAGED" position, this switch is turned to "ON".
When the independent PTO lever is set to
"ENGAGED" position, this switch is turned to "OFF".
9Y1210822ELM0010US0
(3) HST Pedal Switch
HST Pedal Switch
This switch located at the neutral switch stay.
This switch is a push type.
This switch detects the position of the HST pedal.
When HST pedal is at "NEUTRAL" position, this
switch is turned to "ON".
When HST pedal is at "FORWARD" or "REVERSE"
position, this switch is turned to "OFF".
9Y1210822ELM0011US0

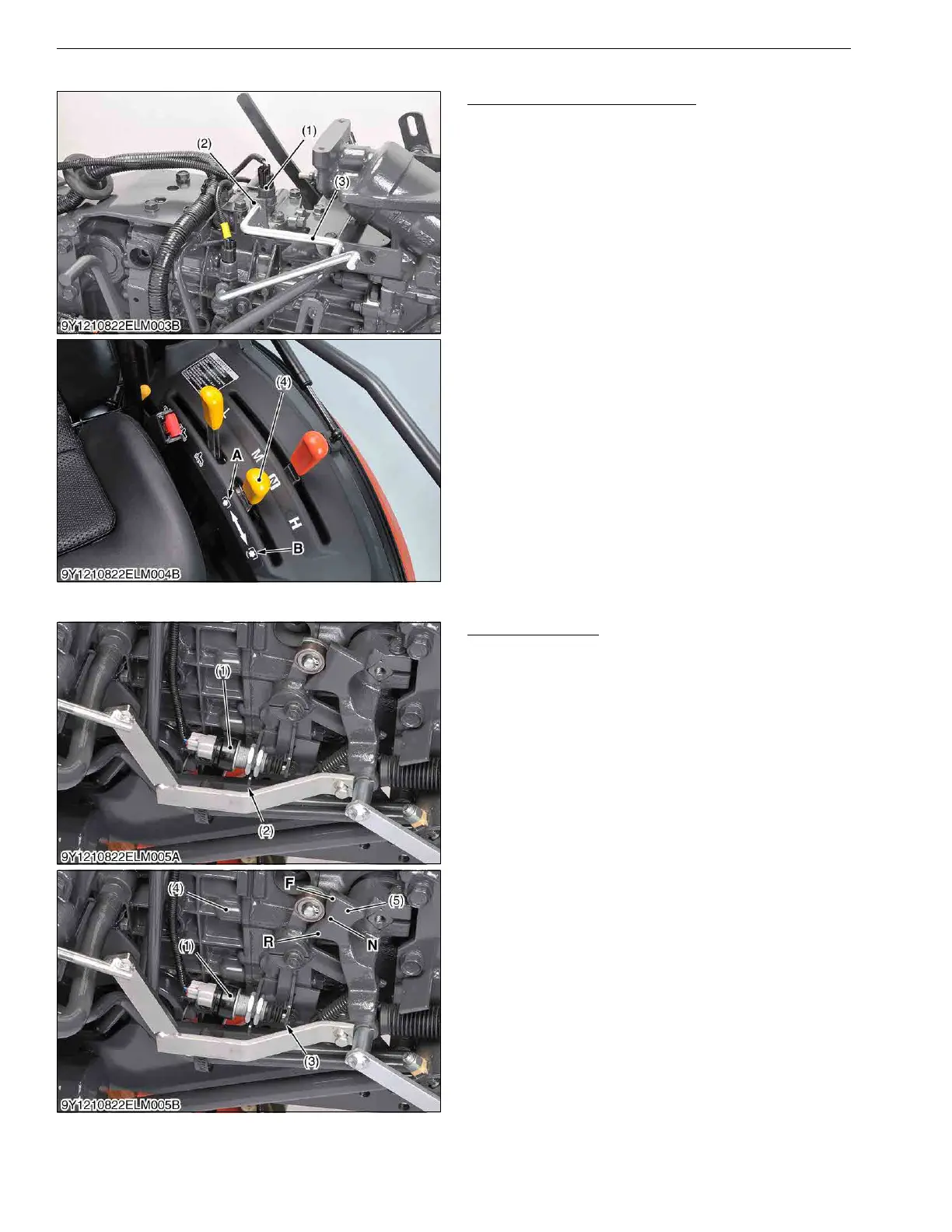

(1) Independent PTO Lever
Switch
(2) Independent PTO Valve
(3) Control Rod
(4) Independent PTO Lever
A : "DISENGAGED" Position
B : "ENGAGED" Position
(1) HST Pedal Switch
(2) Neutral Switch Stay
(3) Neutral Arm
(4) Transmission Case
(5) Neutral Holder
F : FORWARD
N : NEUTRAL
R : REVERSE
A : Current from Battery
B : Current to Controller
