ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S11
(Continued)
[B3350]
9Y1210822ELS0055US0

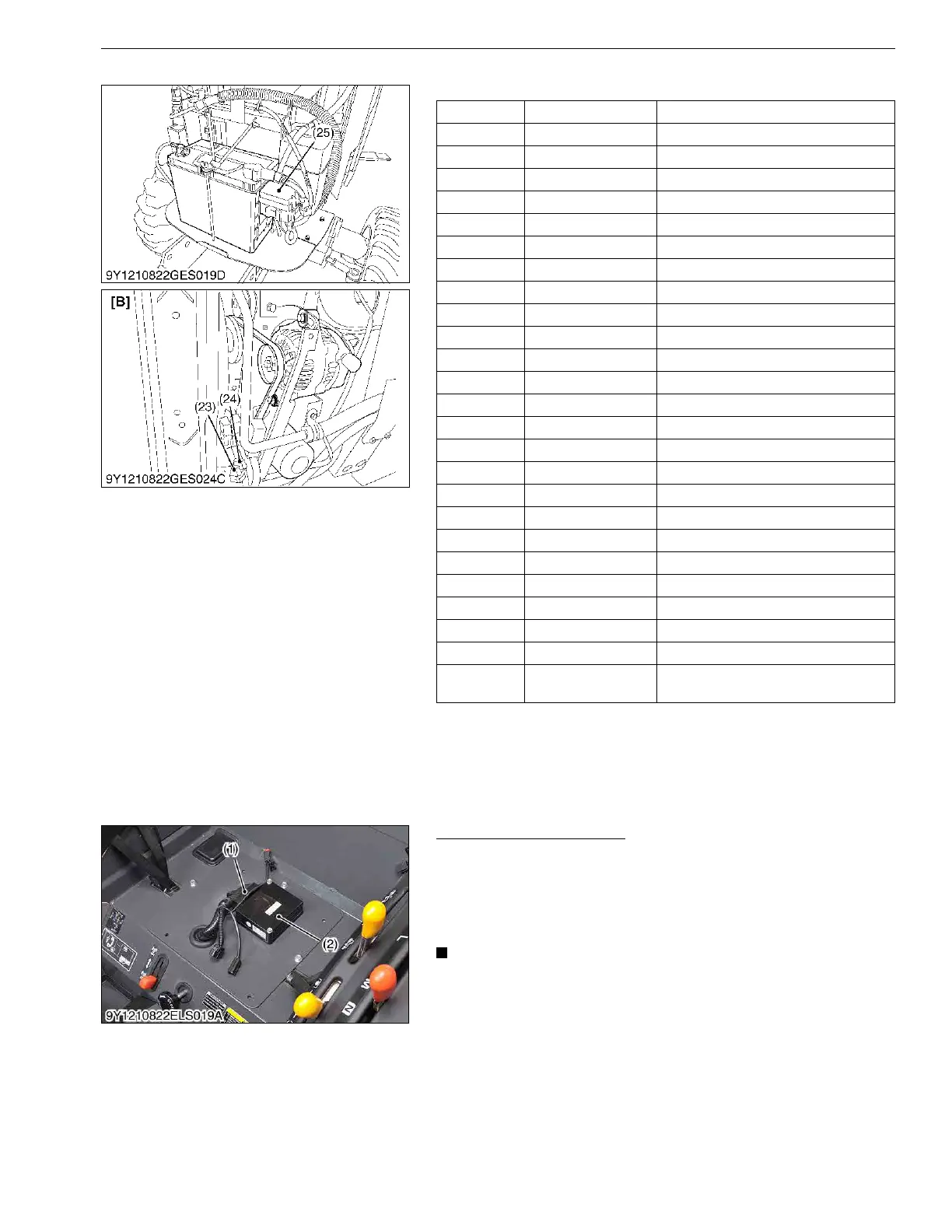

[3] ECU AND METER PANEL
(1) Engine ECU (B3350)
Checking ECU Connector
1. Disconnect the connector (1), and check their terminals for
contamination and deformation.
2. Check to see that cable does not broken or terminals are not
shelled off.
3. If any damaged parts are found, repair or replace them.
IMPORTANT
• Connect connectors surely after checked.
9Y1210822ELS0052US0
Fuse No. Capacity (A) Protected circuit
(1) 20 Work Light
(2) 20 Defogger
(3) 15 Radio / Dome Light
(4) 20 Aircon Blower
(5) 15 Wiper
(6) 7.5 Aircon
(7) 5 Radio
(8) 5 Starter Relay / ECU
(9) 5 Glow Relay
(10) 10 Outlet (Rear)
(11) 5 Panel
(12) 10 Outlet (Front)
(13) 15 Flasher / Hazard
(14) 15 Head Light / Horn
(15) 10 Alternator / Fuel Pump / Governor
(16) 5 ACC Relay
(17) 5 Panel / ECU
(18) 10 ECU
(19) 5 Spare Fuse
(20) 10 Spare Fuse
(21) 15 Spare Fuse
(22) 20 Spare Fuse
(23) 30 Starter Relay
(24) 15 Reforming Glow
(25) Slow blow fuse
Check circuit against wrong battery
connection
[B] B3350
(1) ECU Connector (2) ECU
KiSC issued 05, 2014 A
