ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S16
[4] STARTING SYSTEM

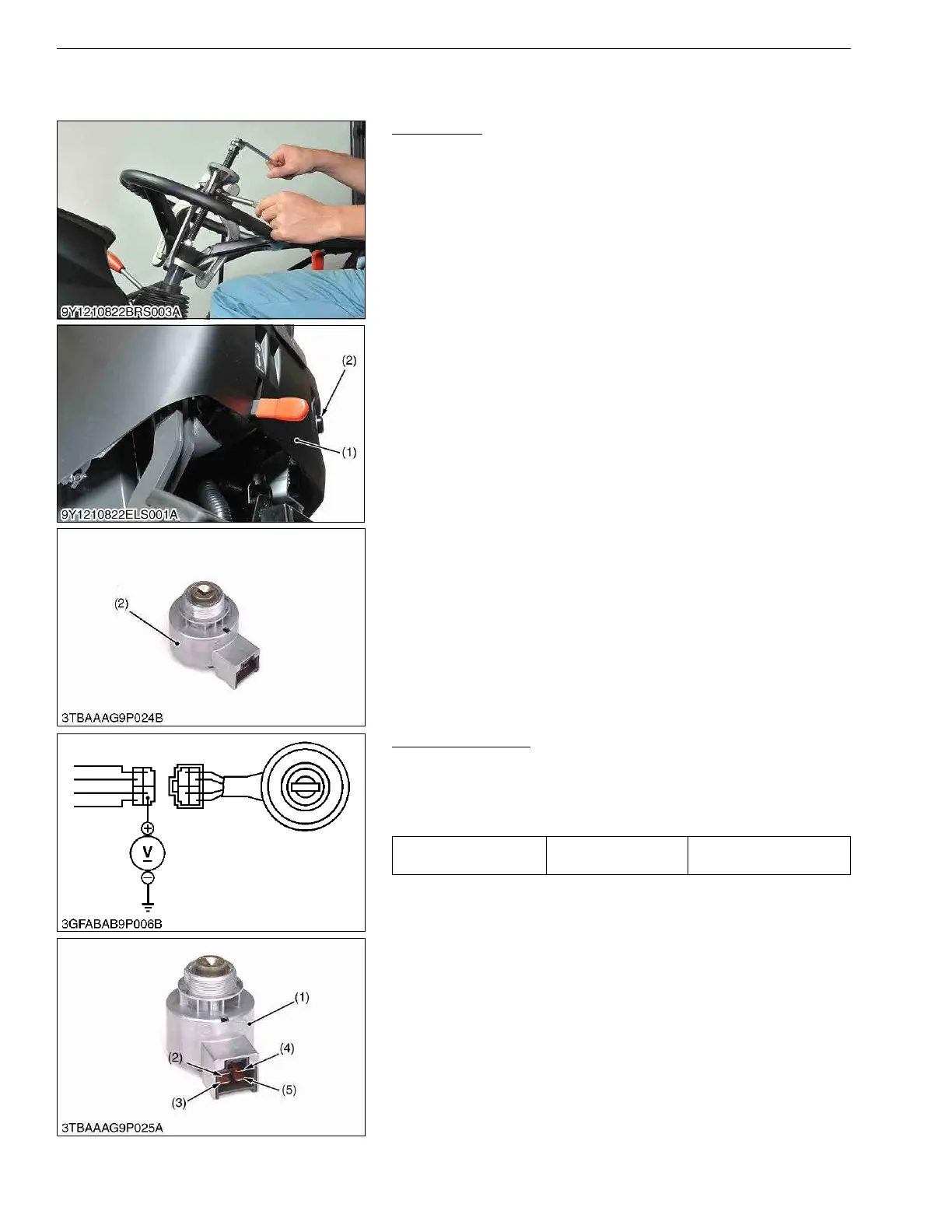

(1) Main Switch
Main Switch
1. Remove the steering wheel and the panel lower cover (1).
2. Disconnect the 4P connector and remove the main switch (2).
3. Perform the following checks.
9Y1210822ELS0007US0
Connector Voltage
1. Measure the voltage with a voltmeter across the connector B
terminal (2) and chassis.
2. If the voltage differs from the battery voltage (11 to 14 V), the
wiring harness is faulty.
9Y1210822ELS0008US0
(1) Panel Lower Cover (2) Main Switch
Voltage
Connector B terminal
– Chassis
Approx. battery voltage
(1) Main Switch
(2) B Terminal
(3) AC Terminal
(4) 50 Terminal
(5) 19 Terminal
To Next Page
