TRANSMISSION
B2650HSDC, B3350HSDC, WSM
2-S30
(4) PTO Clutch Case

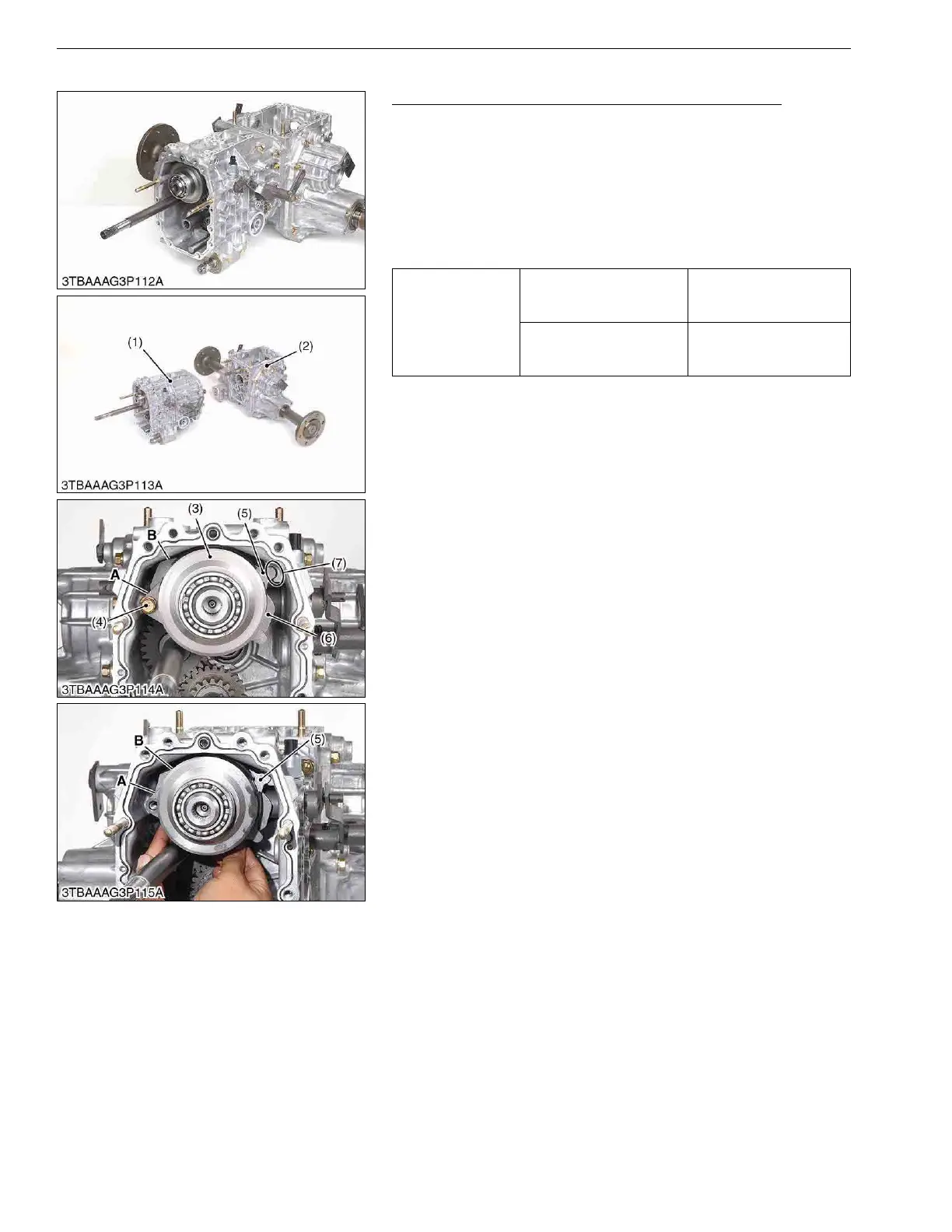

Separating Transmission Case and PTO Clutch Case
1. Remove the transmission case mounting bolts.
2. Separate the transmission case (1) from the differential case
(2).
3. Remove the PTO brake plate 4 mounting bolt (4).
(When reassembling)
• Install the PTO brake plate 4 (5) to the transmission case
groove (7) securely as shown in the picture.
• Place the PTO brake plate 2 (6) between A and B.
9Y1210822TRS0030US0
Tightening torque
Transmission case
mounting bolt (M10) and
nut
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
Hydraulic cylinder
mounting bolt (M10) and
nut
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
(1) Transmission Case
(2) Differential Case
(3) PTO Clutch Case
(4) PTO Brake Plate 4 Mounting Bolt
(5) PTO Brake Plate 4
(6) PTO Brake Plate 2
(7) Transmission Case Groove
A : Position
B : Position
To Next Page
