ELECTRICAL SYSTEM

B2650HSDC, B3350HSDC, WSM

8-S30

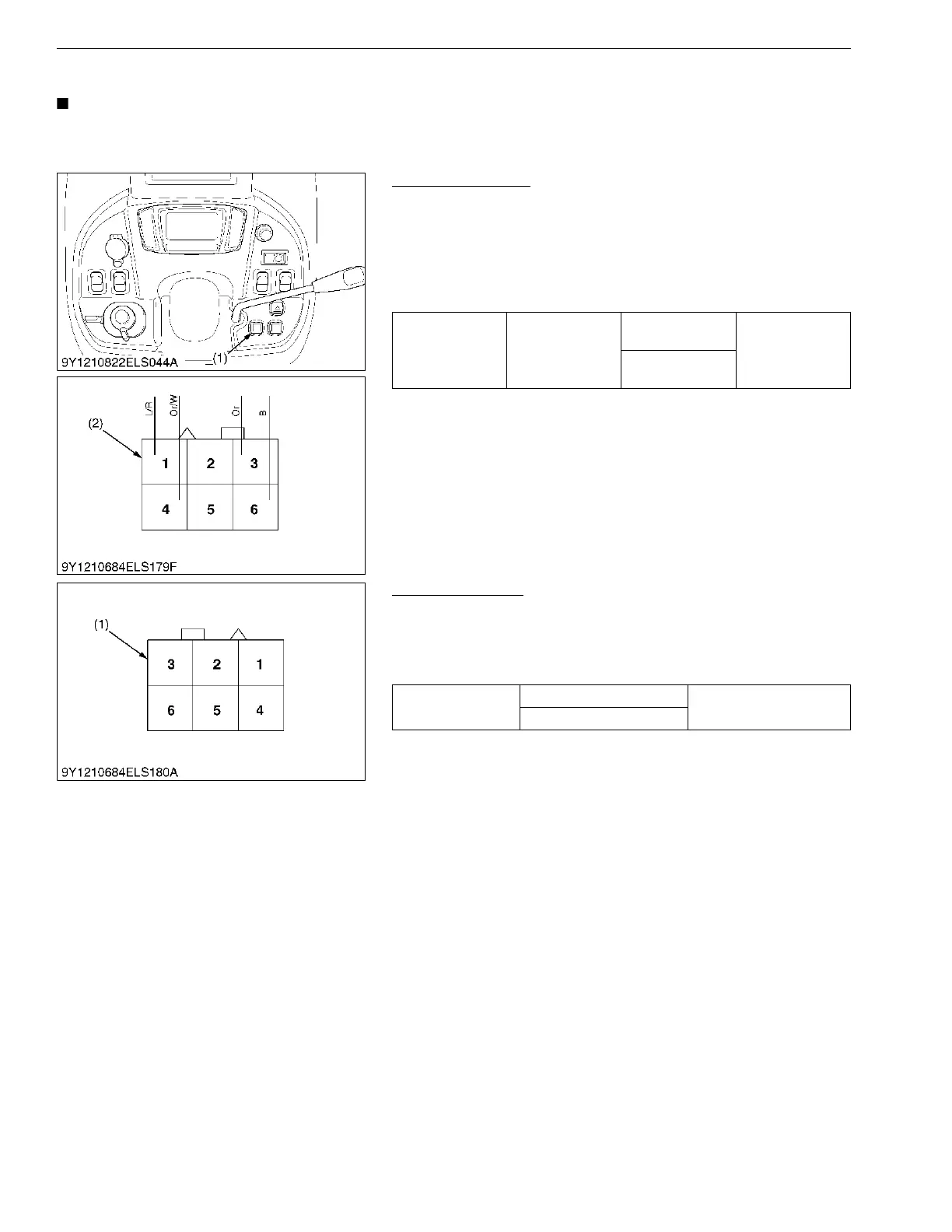

(6) Parked Regeneration Switch

NOTE

• Firstly check the connector voltage, secondly check the other wires continuity, then finally check the

switch continuity.

9Y1210822ELS0049US0

Connector Voltage

1. Disconnect the connector, and turn the main key switch "ON"

position.

2. Measure the voltage with a voltmeter across the terminals

shown in the table below.

3. If the reference value is not indicated as shown in the table

below, check the relating electric circuit.

9Y1210822ELS0075US0

Switch Continuity

1. Check the continuity across the terminals shown in the table

below.

2. If the continuity specified below is not indicated, the parked

regeneration switch is faulty.

9Y1210822ELS0076US0

Voltage

Main switch at

"ON"

Terminal 1 –

chassis

Approx. battery

voltage

Terminal 3 –

chassis

(1) Parked Regeneration Switch (2) Connector (Harness Side)

Continuity Check

Terminal 1 – 4

Continuity

Terminal 3 – 6

(1) Connector (Switch Side)

KiSC issued 05, 2014 A
