CABIN

B2650HSDC, B3350HSDC, WSM

9-S38

(3) Removing Air Conditioner Unit

Draining Coolant

• See page 9-S32.

9Y1210822CAS0057US0

Discharging Refrigerant

• See page 9-S17.

9Y1210822CAS0058US0

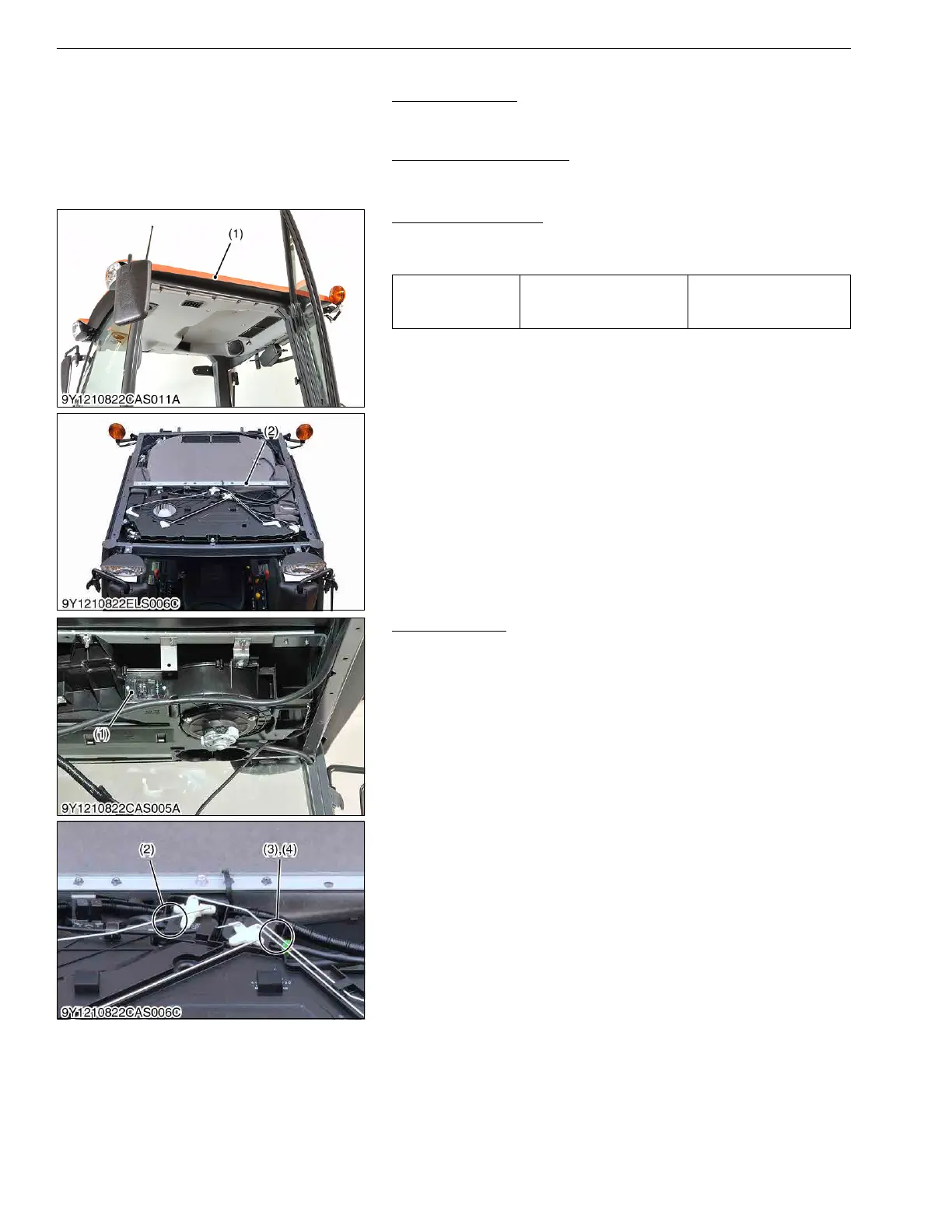

Outer Roof and Stay

1. Remove the outer roof (1).

2. Remove the stay (2).

9Y1210822CAS0059US0

Wiring Harness

1. Remove the inner roof.

2. Disconnect the temperature motor connector (3), and

thermostat connectors (4).

3. Disconnect the mode motor connector (2) and blower resister

(1) connector.

9Y1210822CAS0060US0

Tightening torque Outer roof mounting bolt

3.5 to 4.0 N·m

0.36 to 0.40 kgf·m

2.6 to 2.9 lbf·ft

(1) Outer Roof (2) Stay

(1) Blower Resister

(2) Mode Motor Connector

(3) Temperature Motor Connector

(4) Thermostat Connector
