REAR AXLE
B2650HSDC, B3350HSDC, WSM
3-S5

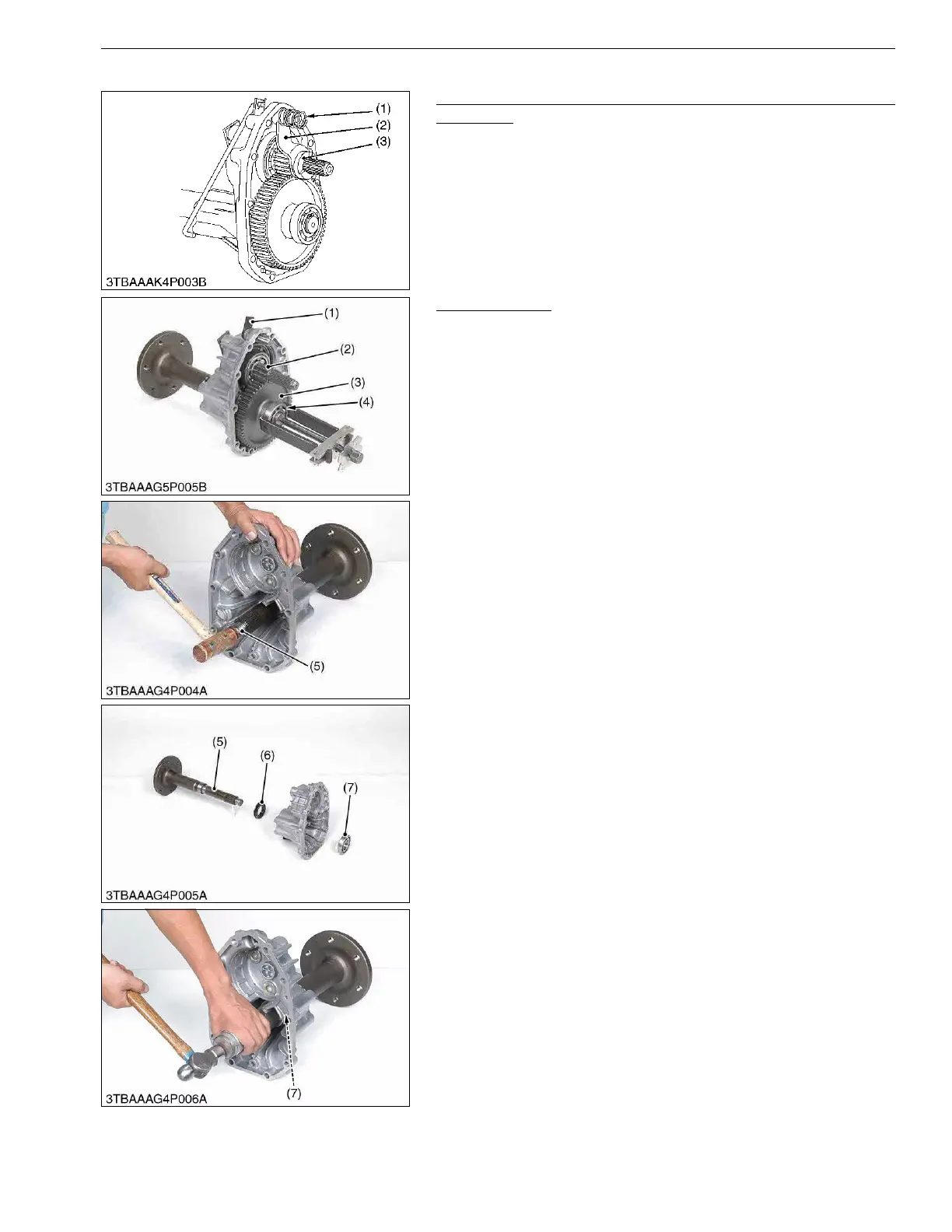

(2) Disassembling Rear Axle Case
Differential Lock Shift Fork, Differential Lock Clutch (Right
Side Only)
1. Remove the spring (1).
2. Draw out the differential lock shift fork (2) and differential lock
clutch (3).
9Y1210822RAS0007US0
Rear Axle Shaft
1. Remove the fork rod (1).
2. Remove the ball bearing (4) with a puller.
3. Remove the gear (3).
4. Remove the brake shaft assembly (2).
5. Tap out the rear axle shaft (5) with a rubber hammer to the
outside.
(When reassembling)
• Tap in the bearing to the rear axle case.
9Y1210822RAS0008US0
(1) Spring
(2) Differential Lock Shift Fork
(3) Differential Lock Clutch
(1) Fork Rod
(2) Brake Shaft Assembly
(3) 57T Gear
(4) Ball Bearing
(5) Rear Axle Shaft
(6) Oil Seal
(7) Ball Bearing
To Next Page
