B2650HSDC, B3350HSDC, WSM
9-S46

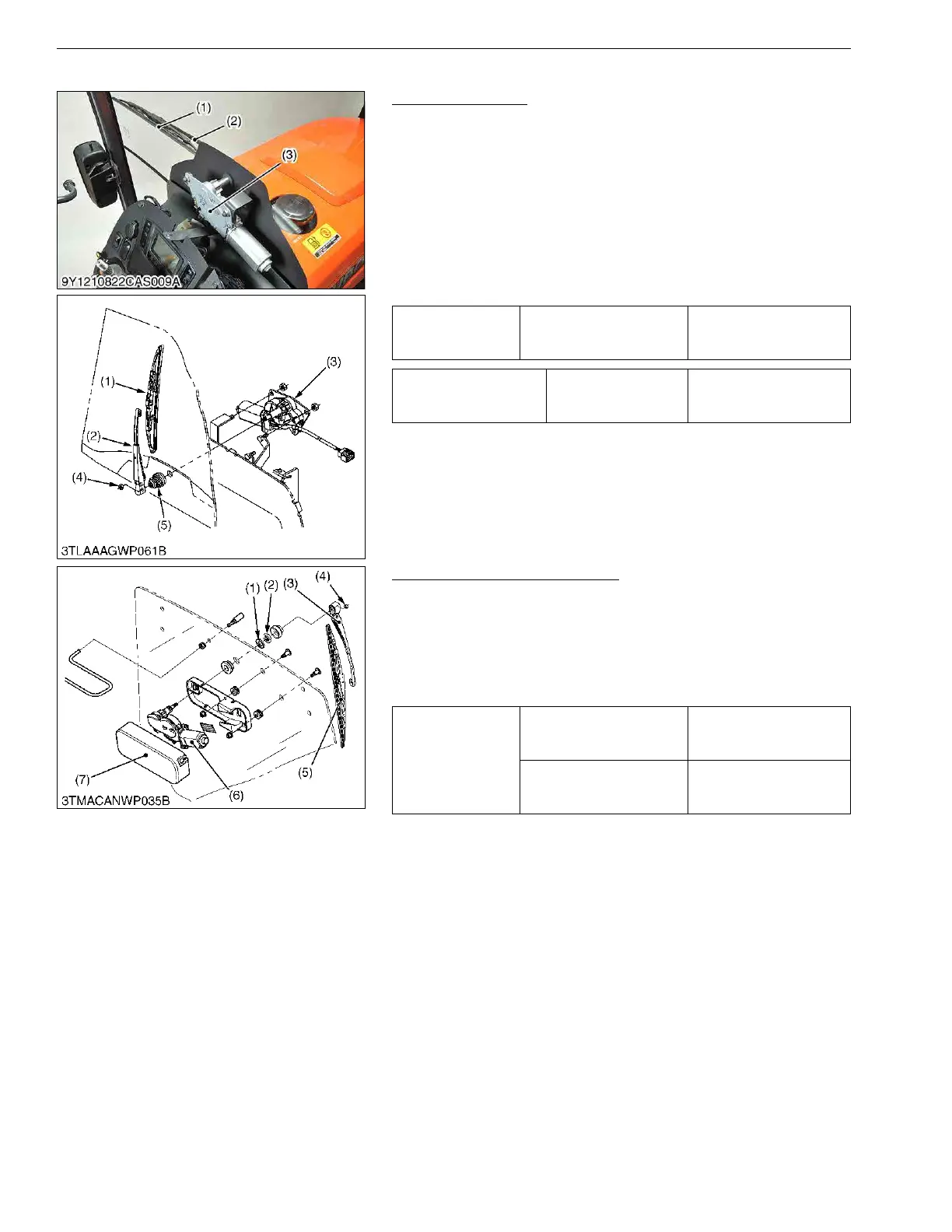

(7) Wiper Motor
Front Wiper Motor
1. Remove the panel lower cover.
2. Disconnect the front wiper motor 4P connector.
3. Remove the wiper arm mounting nut (4) and wiper arm (2).
4. Remove the wiper link cap (5).
5. Remove the front wiper motor (3).
(When reassembling)
• When attaching the wiper arm (2) to the wiper motor (3),
assemble so that the dimensions are as given in the photo on
the left. After doing so, check if the wiper wipes symmetrically
on the left and right (bilateral symmetry).
9Y1210822CAS0080US0
Rear Wiper Motor (If equipped)
1. Remove the wiper motor cover (7).
2. Disconnect the 4P connector from rear wiper motor (6).
3. Remove the wiper arm mounting nut (4) and wiper arm (3).
4. Remove the wiper link cap (1) and nut (2).
5. Remove the rear wiper motor mounting screws and the rear
wiper motor (6).
9Y1210822CAS0081US0
Tightening torque Wiper motor mounting nut
6.4 to 9.3 N·m
0.65 to 0.95 kgf·m
4.7 to 6.8 lbf·ft
Wiper blade position Factory specification
Approx.
150 mm
5.91 in.
(1) Wiper Blade
(2) Wiper Arm
(3) Front Wiper Motor
(4) Nut
(5) Wiper Link Cap
Tightening torque
Wiper arm mounting nut
7.9 to 9.8 N·m
0.80 to 1.0 kgf·m
5.8 to 7.2 lbf·ft
Wiper motor mounting
screw
7.9 to 9.8 N·m
0.80 to 1.0 kgf·m
5.8 to 7.2 lbf·ft
(1) Wiper Link Cap
(2) Nut
(3) Wiper Arm
(4) Nut
(5) Wiper Blade
(6) Rear Wiper Motor
(7) Wiper Motor Cover
