ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S36

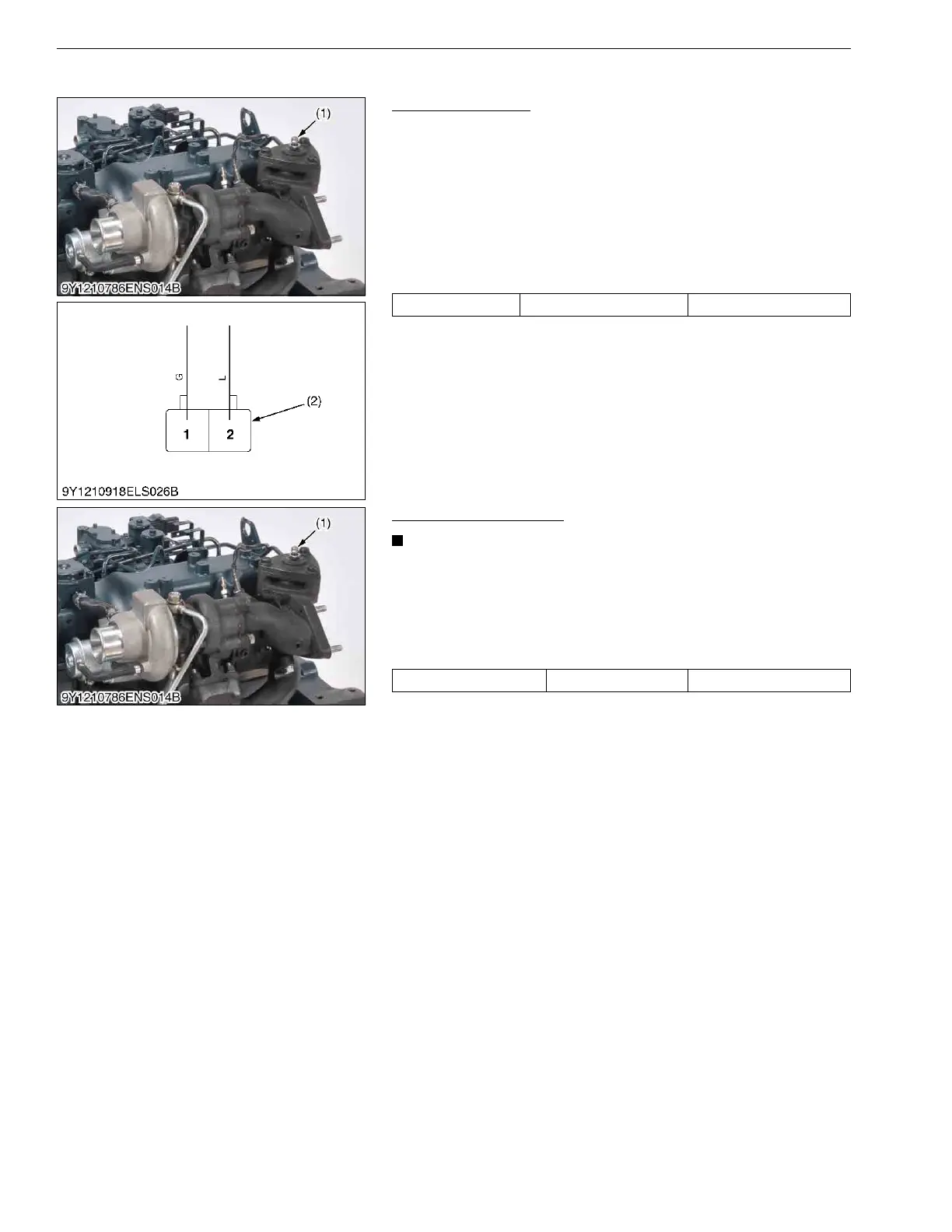

(12) Heater Glow (V1505)
Connector Voltage
1. Disconnect the connector, and turn the main key switch "ON"
position.
2. Do active test "Catalyst Heater for Fuel Reformer ON / OFF
Function" by using diagmaster before following checking (Refer
to "Diagnosis Manual V1505-T-E4 (9Y120-02490)").
3. Measure the voltage with a voltmeter across the terminals
shown in the table below.
4. If the reference value is not indicated as shown in the table
below, check the relating electric circuit.
9Y1210822ELS0123US0
Heater Glow Continuity
• Since reformer is emission related critical parts, do not
remove the glow plug.
1. Remove the wiring harness.
2. Measure the resistance with a circuit tester between the glow
plug terminal and the engine body.
3. If the factory specification is not indicated, glow plug is faulty.
9Y1210822ELS0124US0
Voltage Terminal 1 – chassis Approx. battery voltage
(1) Heater Glow (2) Connector (Harness Side)
Resistance Factory specification 3.2 to 4.4 Ω
(1) Heater Glow
