ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S39

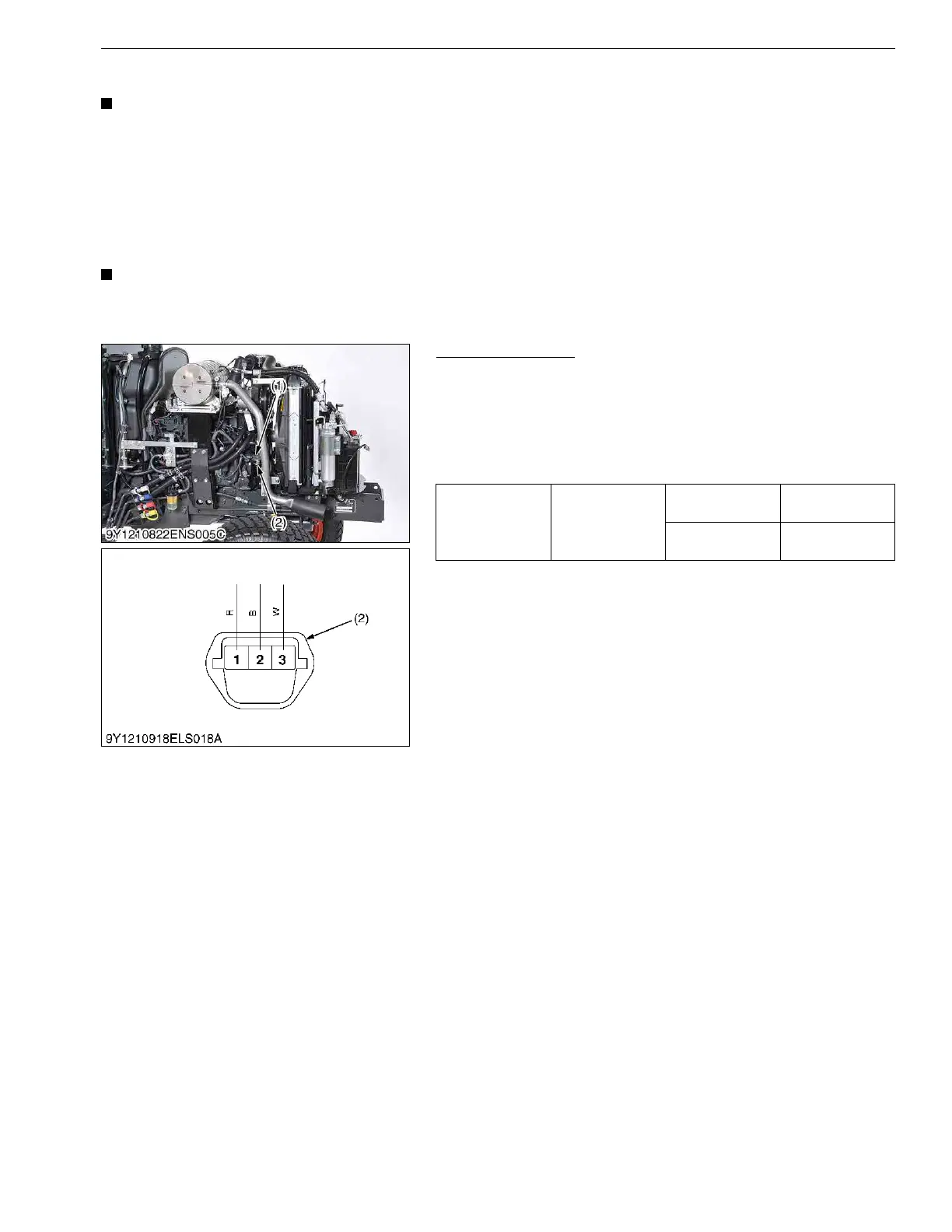

(15) Rack Sensor
• When exchanging the rack position sensor, be sure to do following procedure before removing the rack
position sensor (Refer to "Diagnosis Manual V1505-T-E4 (9Y120-02490)" for the detail).
1. Do Utility "Gear Case or Gear Case Gasket or Rack Position Sensor Exchange" by using diagmaster
and get "Actual Rack Position Before Exchange".
2. Exchange the rack position sensor.
3. Get "Actual Rack Position After Exchange".
4. Rack Position Offset Correction is calculated automatically.
5. Register the offset data to ECU.
• Since it is not possible to do unit checking for this sensor, judge the sensor is faulty if the relating electric
circuit is normal.
9Y1210822ELS0130US0
Connector Voltage
1. Disconnect the connector, and turn the main key switch "ON"
position.
2. Measure the voltage with a voltmeter across the terminals
shown in the table below.
3. If the reference value is not indicated as shown in the table
below, check the relating electric circuit.
9Y1210822ELS0131US0
Voltage
Main switch at
"ON"
Terminal 1 –
chassis
Approx. 5 V
Terminal 3 –
chassis
Approx. 4.75 V
(1) Rack Position Sensor (2) Connector (Harness Side)
To Next Page
