ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S56
5. DISASSEMBLING AND ASSEMBLING

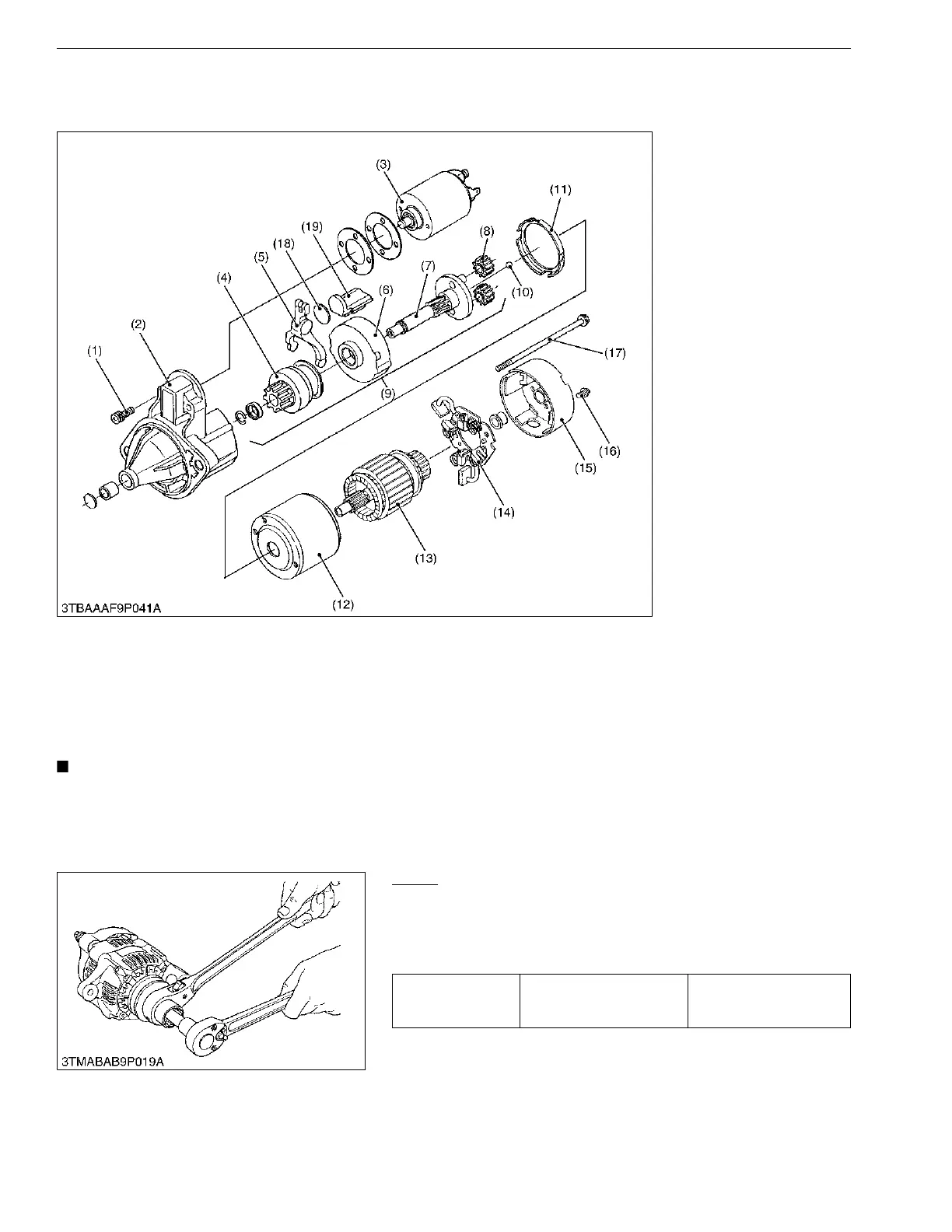

[1] STARTER
1. Disconnect the connecting lead from the magnetic switch (3).
2. Remove the screw (1) and remove the magnetic switch (3).
3. Remove the screw (16) and through bolt (17), and separate the rear end frame (15).
4. Remove the brush holder (14).
5. Draw out the armature (13) and yoke (12).
6. Remove the gasket (11), gasket (19) and plate (18).
7. Draw out the shaft assembly (9) with the drive lever (5).
• Do not damage the brush and commutator.
• Do not miss the ball (10).
9Y1210822ELS0089US0
[2] ALTERNATOR
Pulley
1. Secure the hexagonal end of the pulley shaft with a
double-ended ratchet wrench as shown in the figure, loosen the
pulley nut with a socket wrench and remove it.
(When reassembling)
9Y1210822ELS0090US0
(1) Screw
(2) Front Bracket
(3) Magnetic Switch
(4) Overrunning Clutch
(5) Drive Lever
(6) Internal Gear
(7) Shaft
(8) Planetary Gear
(9) Shaft Assembly
(10) Ball
(11) Gasket
(12) Yoke
(13) Armature
(14) Brush Holder
(15) Rear End Frame
(16) Screw
(17) Through Bolt
(18) Plate
(19) Gasket
Tightening torque Pulley nut
58.4 to 78.9 N·m
5.95 to 8.05 kgf·m
43.1 to 58.2 lbf·ft
