TRANSMISSION
B2650HSDC, B3350HSDC, WSM
2-S31

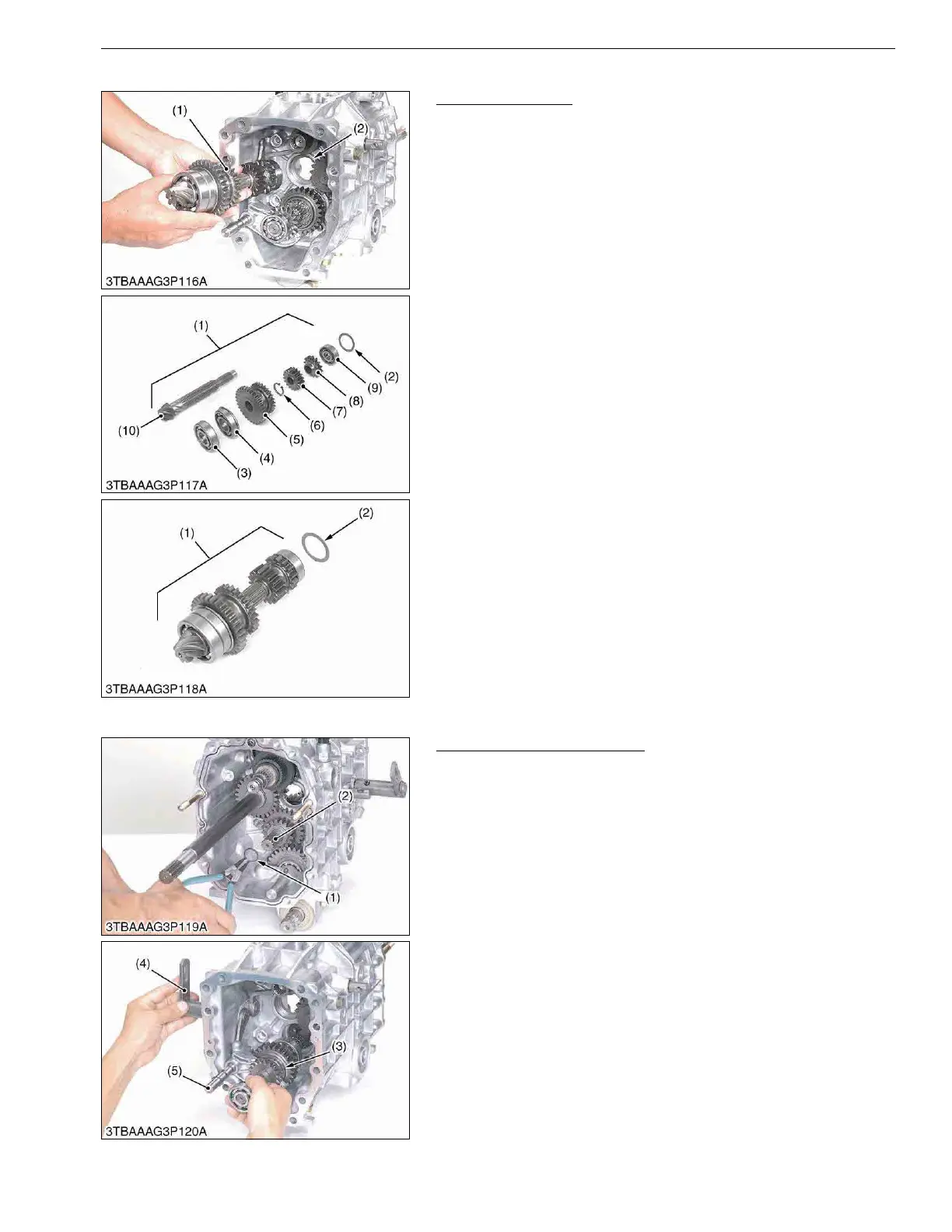

(5) Bevel Pinion Shaft
Bevel Pinion Shaft
1. Remove the bevel pinion shaft assembly (1) from the
transmission case.
2. Remove the spacer (2).
(When reassembling)
• Install the spacer (2) to the transmission case.
• Install the bevel pinion shaft assembly (1).
9Y1210822TRS0031US0
(6) Range Gear Shaft
Range Gear Shaft Assembly
1. Remove the circlip (1) from the range gear shaft (2).
2. Remove the spring pin from the shift arm lever (4).
3. Remove the range gear shaft assembly (3) and the fork rod (5)
from the transmission case.
9Y1210822TRS0032US0
(1) Bevel Pinion Shaft Assembly
(2) Spacer
(3) Ball Bearing
(4) Ball Bearing
(5) Gear (B2650: 25-29T,
B3350: 24-29T)
(6) Circlip
(7) Gear (B2650: 17T, B3350: 15T)
(8) Gear (14T)
(9) Ball Bearing
(10) Bevel Pinion Shaft
(1) Circlip
(2) Range Gear Shaft
(3) Range Gear Shaft Assembly
(4) Shift Arm Lever
(5) Fork Rod
KiSC issued 05, 2014 A
