HYDRAULIC SYSTEM
B2650HSDC, B3350HSDC, WSM
7-S13

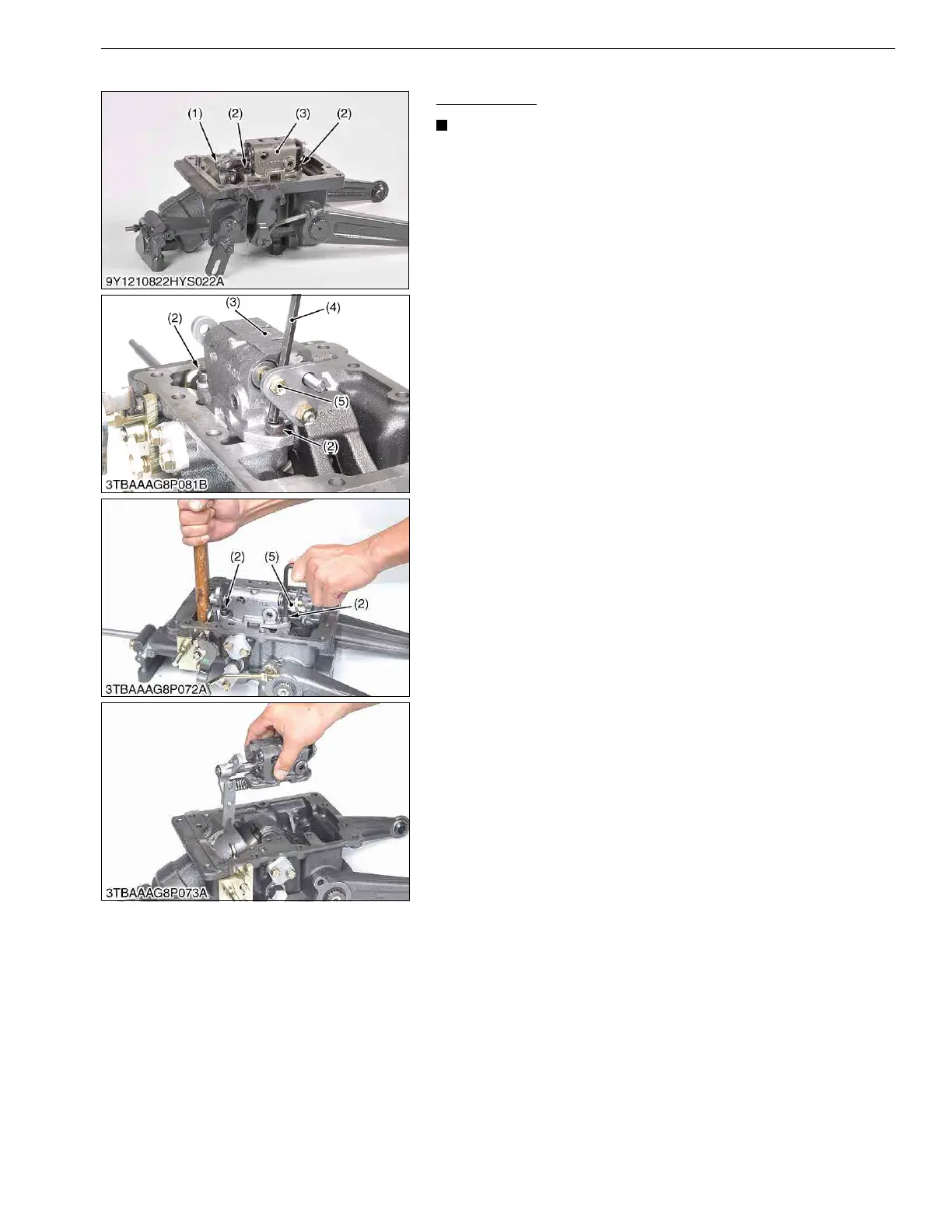

(2) Hydraulic Cylinder
Control Valve
• When the control valve is installed in the hydraulic
cylinder, the hexagon wrench is not aligned straight to the
hexagon bolt without pushing the spool as shown in the
picture.
1. Push the spool (1) into the control valve (3).
2. Remove the hexagon bolts (2) with a hexagon wrench (4).
9Y1210822HYS0029US0
(1) Spool
(2) Hexagon Bolt
(3) Control Valve
(4) Hexagon Wrench
(5) Adjusting Bolt
To Next Page
