HYDRAULIC SYSTEM
B2650HSDC, B3350HSDC, WSM
7-M12

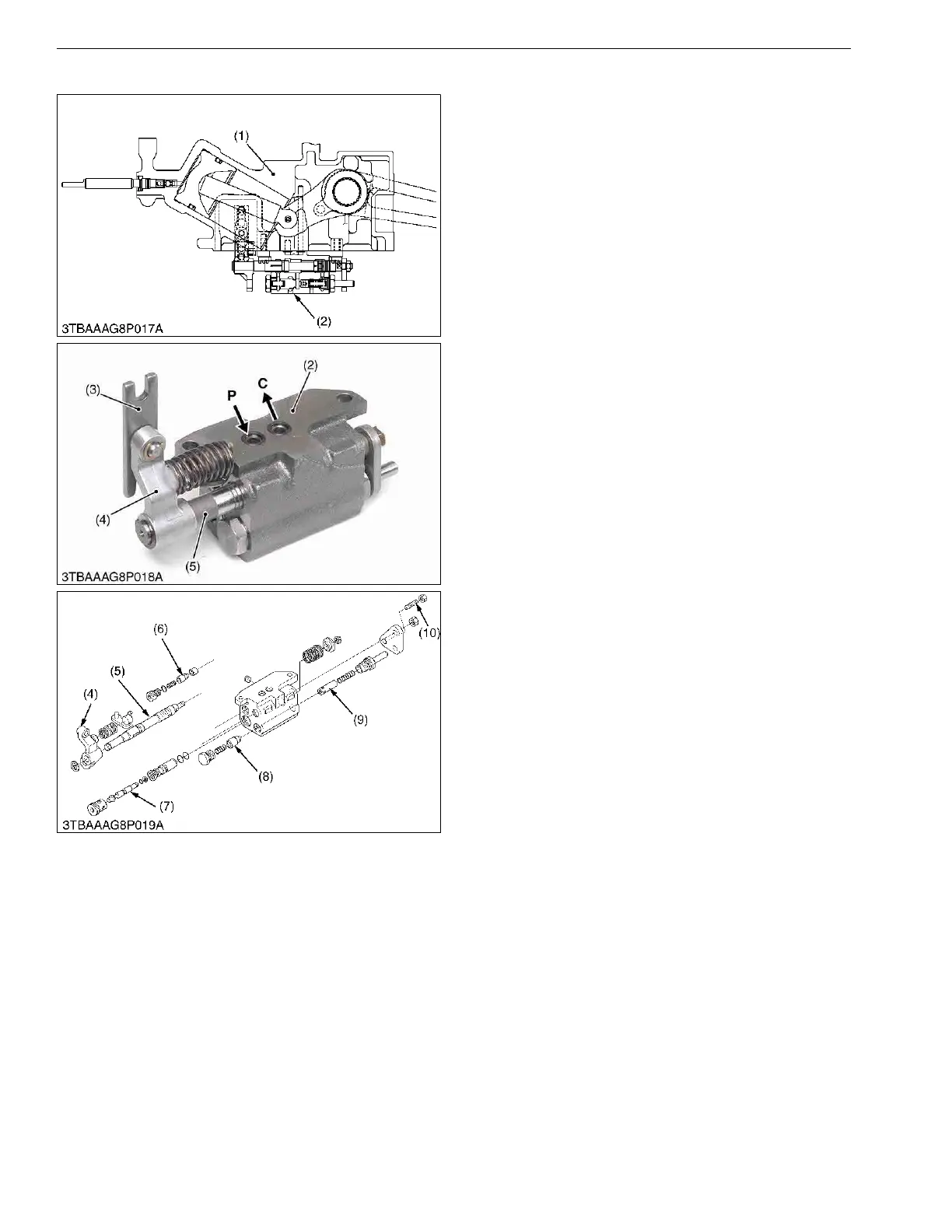

[4] POSITION CONTROL VALVE
This position control valve (2) is located under the
hydraulic cylinder block (1).
This control valve is mechanically connected to the
position control lever with linkage.
This control valve is also mechanically connected to
the lift arm with a feedback rod.
This control valve controls the oil flow forced from
hydraulic pump and the oil returned back from the
hydraulic cylinder.
9Y1210822HYM0014US0
(1) Hydraulic Cylinder Block
(2) Position Control Valve
(3) Link
(4) Lever
(5) Spool
(6) Poppet
(7) Poppet
(8) Poppet
(9) Poppet
(10) Set Screw
P : Pump Port
C : Cylinder Port
KiSC issued 05, 2014 A
