ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-M11
3. LIGHTING SYSTEM
The lighting system consists of combination switch for head light, illumination lamp, tail light and hazard switches
for tail lights etc..
9Y1210822ELM0015US0

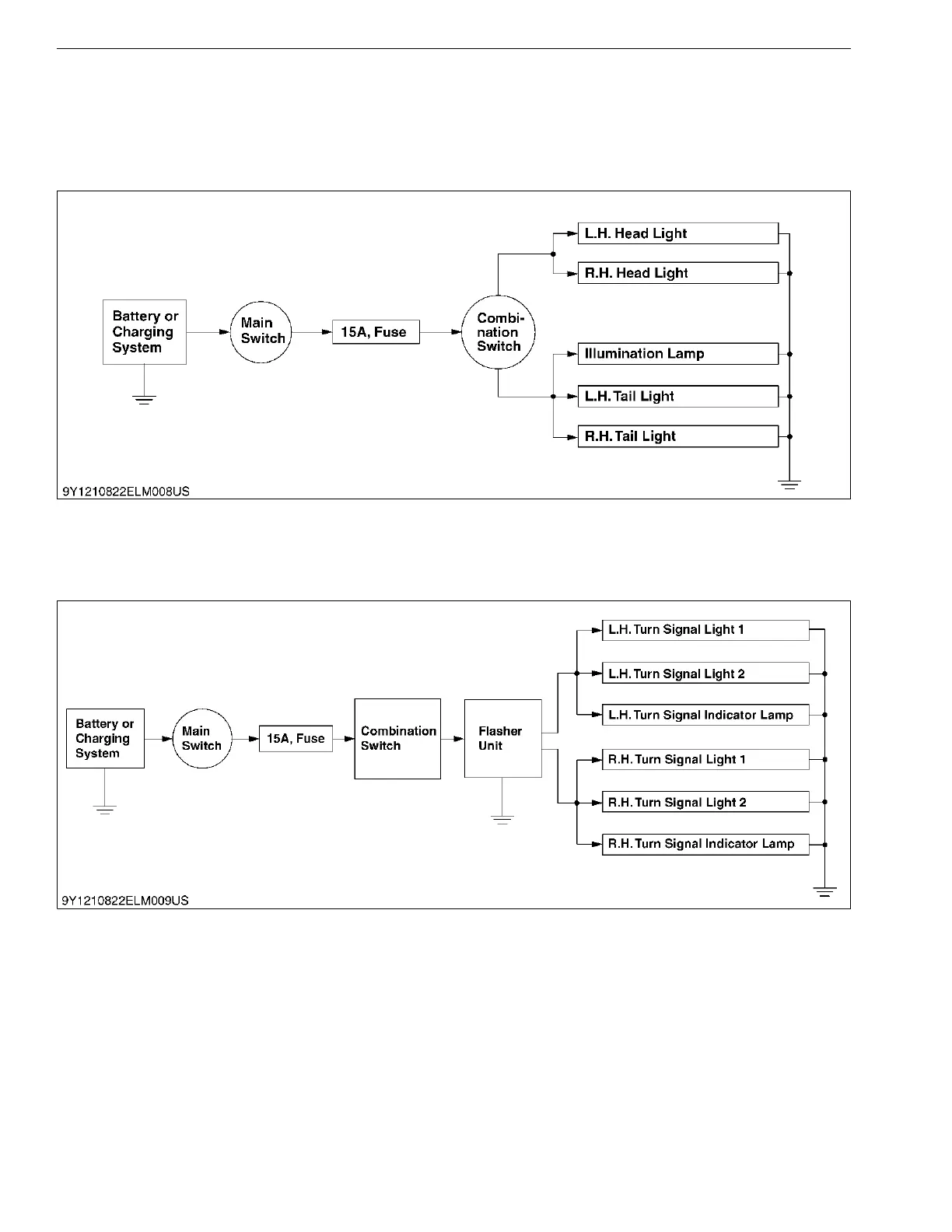

[1] LIGHT AND TAIL LIGHT
Combination switch has three types of switches for head lights, illumination lamps and tail lights.
Current passes through the light circuit as shown in the figure above.
9Y1210822ELM0016US0
[2] TURNING LIGHT
The turning light which, switch forms a combination switch with the light switch, has three positions; OFF, 1., 2..
When turning, only one side light blinks and other one stays on. Priority is given to the turning light when the hazard
switch and the turn signal light switch are turned on at the same time.
9Y1210822ELM0017US0
