BRAKES
B2650HSDC, B3350HSDC, WSM
4-S4
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING

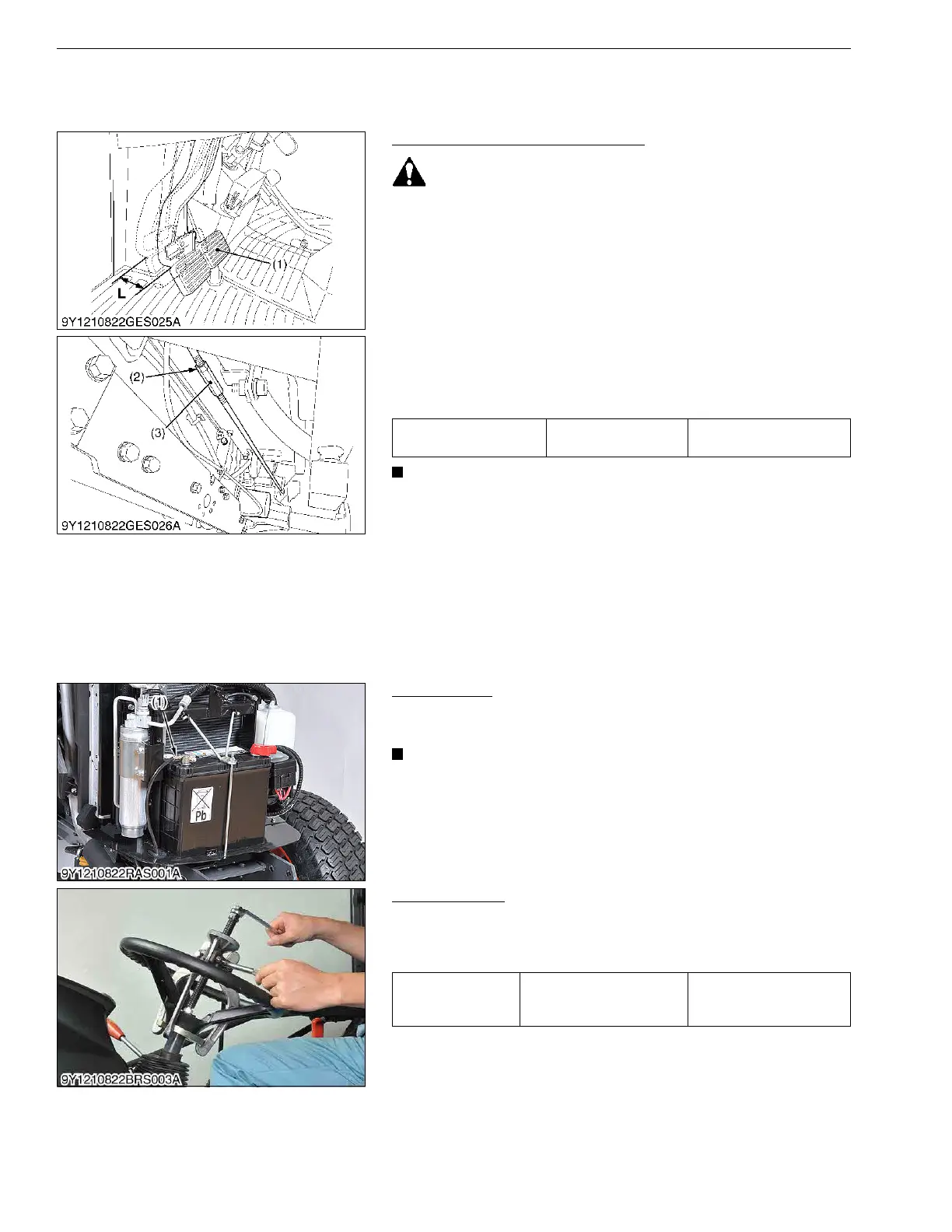

Adjusting Brake Pedal Free Travel
• Stop the engine and chock the wheels before checking
brake pedal.
• The difference between the right and left pedal free travel
must be less than 5 mm (0.2 in.).
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel at top
of pedal stroke.
3. If the measurement is not within the factory specifications,
loosen the lock nut and turn the turnbuckle to adjust the brake
rod length.
4. Retighten the lock nut securely.
5. Keep the free travel in the right and left brake pedals equal.
• After checking brake pedal free travel, be sure to engage
the parking brake lever fully and check to see that the brake
pedals are securely locked.
9Y1210822BRS0004US0
[2] DISASSEMBLING AND ASSEMBLING
(1) Brake Pedal
Battery Cable
1. Open the bonnet and remove the side cover.
2. Disconnect the battery negative cable (1).
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, the positive cable
first.
9Y1210822RAS0004US0
Steering Wheel
1. Remove the steering wheel cap.
2. Remove the steering wheel mounting nut and steering wheel.
(When reassembling)
9Y1210822BRS0005US0
Brake pedal free travel
(L)
Factory specification
30 to 40 mm
1.2 to 1.5 in.
(1) Brake Pedal
(2) Turnbuckle
(3) Lock Nut
L: Free Travel
(1) Battery Negative Cable
Tightening torque
Steering wheel mounting
nut
30 to 49 N·m
3.0 to 5.0 kgf·m
22 to 36 lbf·ft
To Next Page
