BRAKES
B2650HSDC, B3350HSDC, WSM
4-S6

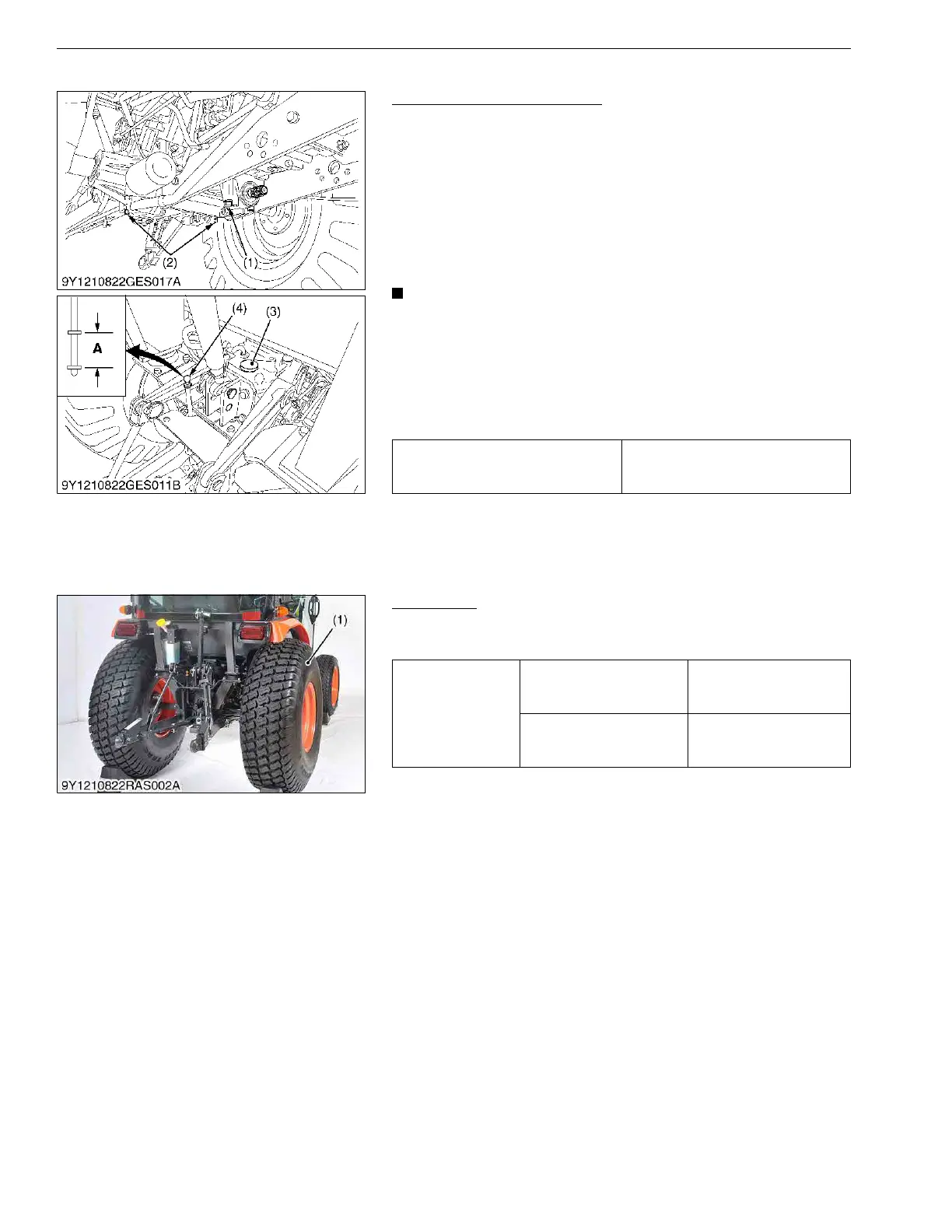

(2) Separating Rear Axle Case
Draining Transmission Fluid
1. Place an oil pan underneath the transmission case, and remove
the drain plugs (1) and (2).
2. Drain the transmission fluid.
3. Reinstall the drain plugs (1) and (2).
(When refilling)
• Fill new oil from filling port after removing the filling plug (4) up
to the upper notch on the dipstick (3).
• After running the engine for a few minutes, stop it and check the
oil level again, if low, add oil prescribed level.
• Use only multi-grade transmission oil. Use of other oils
may damage the transmission or hydraulic system. (See
page G-9).
• Never work the tractor immediately after changing the
transmission oil. Keeping the engine at medium speed for
a few minutes to prevent damage to the transmission.
• Do not mix different brands oil together.
9Y1210822RAS0003US0
Rear Wheel
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel (1).
9Y1210822RAS0005US0
Transmission fluid capacity
15 L
4.0 U.S.gals
3.3 lmp.gals
(1) Drain Plug
(2) Drain Plug (Both Sides)
(3) Dipstick
(4) Filling Plug
A: Proper Oil Level
Tightening torque
Rear wheel mounting nut
167 to 191 N·m
17 to 19.5 kgf·m
123 to 141 lbf·ft
Rear wheel mounting
screw
196 to 225 N·m
20 to 23 kgf·m
145 to 166 lbf·ft
(1) Rear Wheel
